DM925LW & DM925GW Double Regulating Valve

Name: DM925LW & DM925GW Double Regulating Valve
Brand: Crane Fluid Systems
SKU: pdU5WdYHu3NWMQXXKHqUeu

Verified by manufacturer 1 month ago

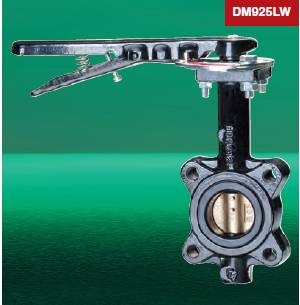

DM925LW DN65

A lever (DM925LW) or gearbox (DM925GW) operated double regulating valve.

Jump to:

Application

Suitable for installation where flow needs to be regulated.

A lever (DM925LW) or gearbox (DM925GW) operated double regulating valve.

Features and benefits:

WRAS approved Double Regulating Valves consists of a fully lugged, WRAS approved EPDM liner butterfly valve with a double regulating Lever.
The Double Regulating feature allows the valve to be used for isolation and to be reopened to its pre-set position to maintain required flow rate.
Use the DM925LW with Orifice plate Fig.DM900 for Commissioning Set.

Color	Black
Material	Cast iron

Uniclass	Pr_65_54_95_26 Double regulating valvesPrimary
CAWS	S90/650 Flow reducing/ servicing valves S90/650 Flow-reducing/ servicing valves

Material	Ductile Iron (ASTM A536 65-45-12), Aluminium Bronze, EPDM, Stainless Steel (ASTM A532 Type 416 & ASTM A276 Type 316), Carbon Steel, Nitrile (Buna), PTFE/Bronze. Guidance for specification option: Body: Ductile iron; Disc: Aluminium bronze; Seat: EPDM; Shaft, Taper pin: Stainless steel; Key: Carbon steel; O-Ring: Nitrile (buna); Shaft bushing: PTFE or Bronze.

Inlets/outlets diameter	65 mm.
Dimensions	302 x 48 mm. Manufacturer guidance Refer to technical datasheet for detailed dimensions.
Weight	5 kg.
Approvals	Water Regulations Advisory Scheme (WRAS).
PressureRange	Temperature: -10 to +80°C: 16 bar.
Flow capacity	170 Kv. Guidance for specification option: Headloss (K): 0.856. Manufacturer guidance Flow coefficient Kv.

Material	Cast iron
Recyclability	Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details.
Expected Life	20 year
