Diversity Groove - Pile carpet tile

Verified by manufacturer 15 days ago

Armada, 812820

Paragon Carpet Tiles Variant:
Third party certifications:
  • BREEAM - Certification

    Certificate type

Loop pile carpet tile.

Jump to:
BOS
+44 (0) 1709 763 813 Website

Application

For internal use. Designed and manufactured for all commercial environments.

Description

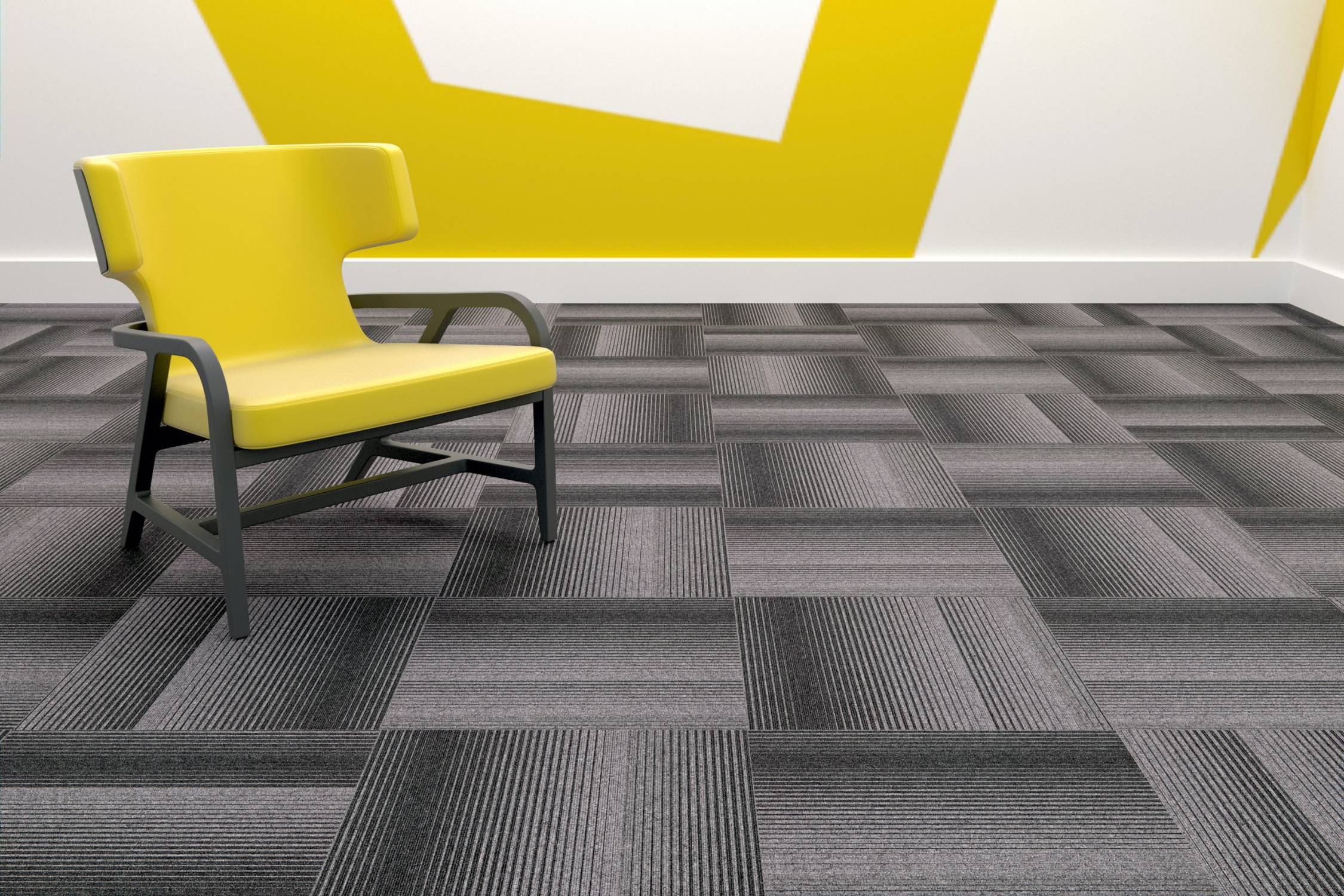

Unlock the potential of true random lay carpet design with Paragon Carpet Tiles' Diversity Groove.


Each carpet tile fuses two Diversity colours, with a gradual linear fade pattern throughout the carpet tile producing a geometric effect across the floor.


Similar to how Total Contrast is produced, Diversity Groove is manufactured with “A, B, C and D” designs, which means there is a different pattern across the four tiles, which is then repeated.


This allows specifiers, designers and installers the opportunity to create new spaces, with the option to lay the carpet tile broadloom, tessellated or randomly.


Alongside the design possibilities of the five Diversity Groove colours, it can also be paired with its sister product, Diversity. The 15 solid colourways in the Diversity range provide opportunities and the flexibility to create wayfinding, borders, transition areas and highlights in any installation.


With the same specification as Diversity, Diversity Groove doesn't impact on commercial performance and seamlessly blends with Diversity across the board.


As with all Paragon Carpet Tiles products, Diversity Groove creates the true carpet tile experience. It adds comfort and softness to any room design, while also allowing for improv 50cm x 50cm carpet tiles ed acoustics.



Features and benefits:

  • 5.5 mm thick bitumen backed tile.
  • 50 x 50 cm carpet tiles.
  • Available in 5 colours.
  • Manufactured with 100% nylon.
  • Made at Paragon Carpet Tiles' site in South Yorkshire.
  • Produced at the company's facility that is powered by 100% renewable energy.

General information

Color

Black

Grey

Blue

Material

Nylon

Guidance for specification option:

100% solution dyed nylon.

Shape

Square

Length

500 mm

Width

500 mm

Height

5.5 mm

Warranty description

Ten year

Uniclass

Pr_35_57_11_62 Pile carpet tilesPrimary

CAWS

M50/15 Carpet tiling

M50/130 Carpet tiling

Specification data - Pile carpet tiles

Style

Tufted loop pile carpet tile.

Guidance for specification option:

Tufted 1/10" gauge loop pile tile.

Material

Nylon.

Guidance for specification option:

100% solution dyed nylon.

Classification

-

Level of use class

Class 33.

Guidance for specification option:

Heavy contract.

Luxury rating class

LC1.

Recycled content

72%.

Guidance for specification option:

Paragon Carpet Tile ranges are backed with a polymer modified bitumen which contains a minimum of 72% recycled content.

Size

500 x 500 x 5.5 mm.

Colour and pattern

Armada.

Construction

100% Solution dyed nylon.

Pile yarn weight

500 gsm.

Height

3 mm.

Manufacturer guidance

Pile height.

Total weight

4280 gsm.

Total thickness

5.5 mm.

Backing

100% Envirobase.

Guidance for specification option:

Minimum of 75% recycled material.

Manufacturer guidance

Komfort Bac available as additional backing on request.

Tiles per box

20.

Guidance for specification option:

5 m².

Anti static layer

Less than 2 Kv.

Guidance for specification option:

Suitable for use with computers.

Colour fastness

> 6; 4–5.

Guidance for specification option:

  • Light (BS EN ISO 105:B02) > 6.
  • Shampoo (BS 1006:UK-TB:1990) 4-5.
  • Dry Rubbing (BS EN ISO 105:B01) 4-5.
  • Wet Rubbing (BS EN ISO 105:X12) 4-5.

Flammability

To BS EN ISO 13501, Bfl-s1.

Guidance for specification option:

BS5287 Assessment and labelling of Textile Floorcovering tested to BS4790 (Hot Metal Nut Test) - Low Radius of Char.

Castor chair rating

Pass.

Guidance for specification option:

Suitable for intensive use with castor chairs.

VOC content

E1.

Guidance for specification option:

E1 in relation to EN 14041:2004.

Environmental performance

BREEAM A Rated.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Guidance for specification option:

The majority of the product originates from the UK, some materials from the EU.

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

72 %

Guidance for specification option:

Paragon Carpet Tile ranges are backed with a polymer modified bitumen which contains a minimum of 72% recycled content.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

BREEAM - Certification

BREEAM - Certification

Paragon Carpet Tiles BREEAM Certifcation

Literature

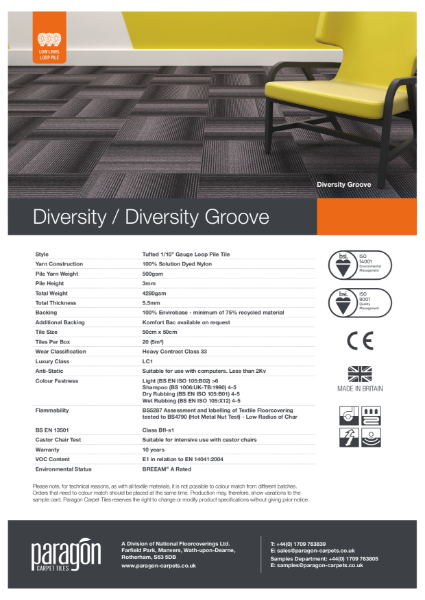

Paragon Carpet Tiles - Diversity Groove - Specification Information

Paragon Carpet Tiles - Diversity Groove - Specification Information
