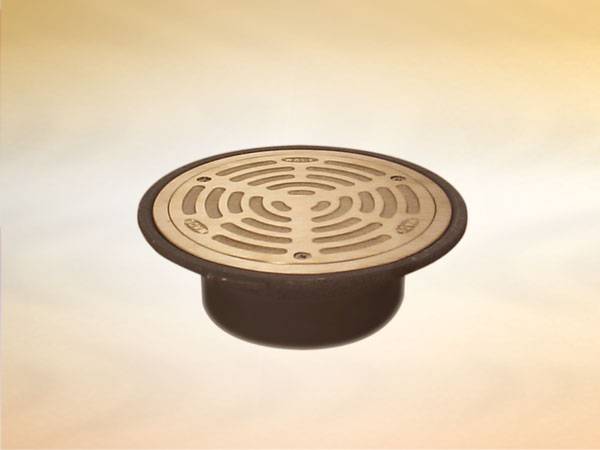

Direct connection access covers, trapped
Description

For applications where a gully body is not required.

General information

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/390 Rodding eyes

Specification data - Floor gullies

Product Reference

Direct connection access cover, trapped

Access cover

-

Ductile iron

Not required

K5891+U1404, 176 mm dia. double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L5791+U1404, 150 x 150 mm double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

Nickel bronze

Not required

K5192+U1404, 176 mm dia. gasketed, for use with sheet floor covering, with 110.2 mm dia. vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5292+U1404, 135 mm dia. gasketed, for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm dia. vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5293+U1404, 152 mm dia. gasketed, for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm dia. vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5391U1404, 152 mm dia. gasketed, for use with trowel applied composition covering, 4 mm flange depth, with 110.2 mm dia. vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5491+U1404, 155 mm dia. plug with ‘O’ ring seal for use in plunge and foot baths, with 110.2 mm dia. vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5591+U1404, 152 mm dia. double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5691+U1404, 176 mm dia. double sealed, for use with sheet floor covering, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5791+U1404, 152 mm dia. double sealed, recessed (19 mm depth) for flooring material, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L5191+U1404, 135 x 135 mm gasketed, for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm dia. vertical outlet; with removable bottle trap

L5193+U1404, 160 x 160 mm gasketed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L5291+U1404, 150 x 150 mm hinged cover in square frame, for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm dia. vertical outlet; with removable bottle trap

L5391+U1404, 150 x 150 mm covered grating for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm vertical outlet; with removable bottle trap

L5491+U1404, 150 x 150 mm sealed cover grating for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm vertical outlet; with removable bottle trap

L5591+U1404, 150 x 150 mm double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L5691+U1404, 150 x 150 mm double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

Stainless steel

Not required

K5197+U1404, 176 mm dia. for use with sheet floor covering, unsealed with 110.2 mm dia. vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5297+U1404, 176 mm dia. gasketed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS416/ DIN 19522 and plastic; with removable bottle trap

K5397+U1404, 150 mm dia. gasketed, for use with trowel applied composition covering, 6 mm flange depth, with 110.2 mm dia. vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5597+U1404, 150 mm dia. double sealed, for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K5697+U1404, 176 mm dia. double sealed, for use with sheet floor covering, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L5395+U1404, 135 x 135 mm hinged cover with circular non-secured grating inside, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L5398+U1404, 150 x 150 mm hinged cover with circular non-secured grating inside, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L5597+U1404, 147 x 147 mm double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L5897+U1404, 150 x 150 mm double sealed, recessed for flooring material, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

Standard product features

Removable bottle trap.

Product Options

Nickel bronze access covers:

  • H – Fitted with Pin Torx screws for security applications.
  • P – Polished.
  • PB – Polished bronze (applies to K5192+U1404, K5292+U1404, K5491+U1404 and L5191+U1404). Check availability.

Stainless steel access covers:

  • H – Fitted with Pin Torx screws for security applications.
  • P – Polished.
