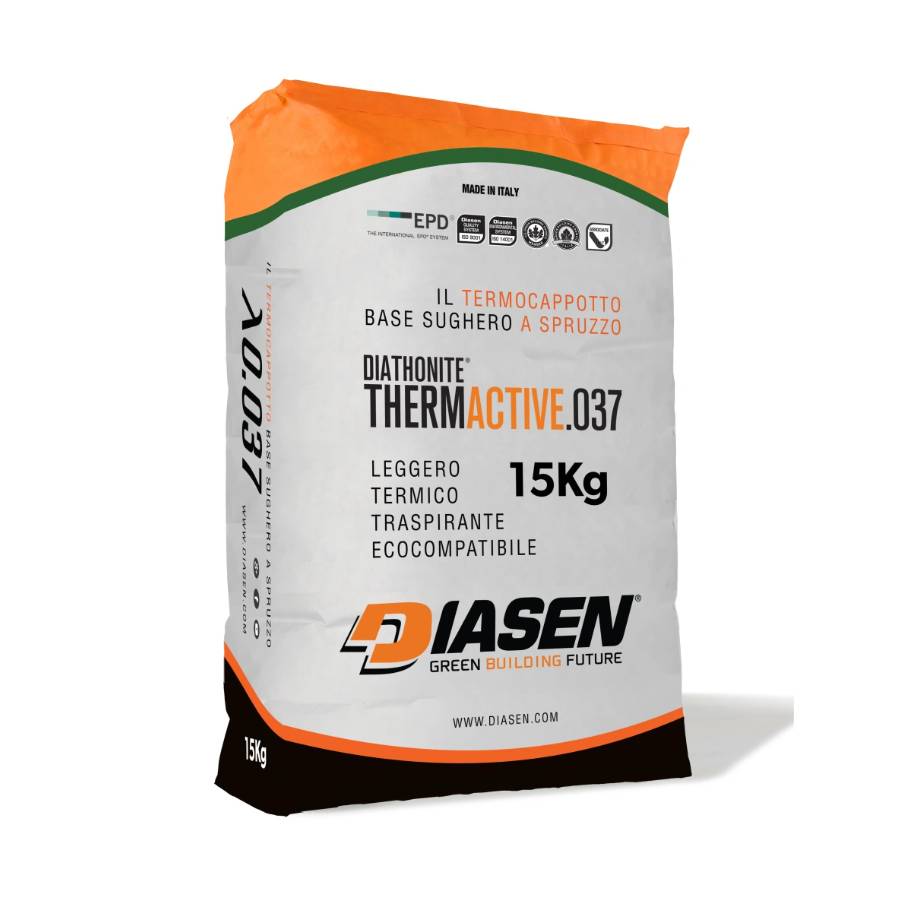

Diasen Diathonite Thermactive.037 - Cork/Lime Thermal Insulating Plaster

Verified by manufacturer 12 hours ago

Diasen Product certifications:
  • EPD

    EPD

    Certificate type

Cork-based thermal plaster, applicable by spraying.

Jump to:
Request BIM
01228 711511 Website

Application

  • Lightweight, eco-friendly thermo-plaster for indoor and outdoor applications, suitable for thermal insulation and dehumidification.
  • It solves the problems related to thermal bridges and moulds induced by humidity, ensuring a healthy environment and a high living comfort.
  • Diathonite Thermactive.037 is comprised of natural compounds, and it is suitable for buildings where moisture vapour diffusion open and water capillary active (breathable) materials are required.
  • Can be used on a variety of substrates (historical brick, stone, blockwork, wood wool boards, and timber).

Description

Diathonite Thermactive.037 is an eco-friendly Exterior Insulation Finishing System - EIFS, whose main ingredients are granulated recycled cork, expanded amorphous silica, perlite and pumice combined in a balanced particle size distribution curve (0–3 mm). Natural hydraulic lime NHL 5 and hydrated lime are also present in the compound; therefore, the product is antibacterial and highly resistant to the formation of moulds and fungi.

Diathonite Thermactive.037 is a highly porous, light-weight, breathable, thermal insulation plaster; it has an excellent reaction to fire performance (non-combustible - Euro Fire Class A1); it is not damaged by dampness, and it is recyclable as an inert at the end of its life cycle. This thermo-plaster offers a versatile, monolithic and highly resistant solution to protect buildings from cold and hot weather. It contributes to the thermo-hygrometric comfort of indoor spaces, and it maintains its characteristics over its lifespan. The product is installed by a plastering spray machine or by trowel.

Features and benefits:

  • Water capillary active
  • High breathability and high porosity
  • Insulates from cold and heat, ensuring good thermal lag, up to 12 hours depending on the characteristics of the wall.
  • Lightweight.
  • Highly resistant to mould and condensation.
  • Absorbs and releases the excess humidity.
  • Suitable for historic restoration.
  • Protects masonry over time.
  • Contains recycled cork
  • Fast construction system (thermal brick + thermal plaster), and quick application (plastering machine).
  • Can apply onto curved walls
  • Made of a combination of natural hydraulic lime NHL 5 and hydrated lime (EN 459-1).
  • It can be applied on top of old lime plasters.
  • Reaction to fire: Euro Fire class A1 (EN 13501-1)
  • External insulation with no need for joints.
  • Product with double CE (EN 998-1, EN 998-2) and UKCA certification (BS EN 998-1, BS EN 998-2).

General information

Color

Grey

Finish

Other

Material

Hydraulic lime

Cork

Shape

Formless

Warranty description

Ten year

Guidance for specification option:

10 year post application warranty

Manufacturer guidance

Shelf life of this product is one year.

Uniclass

Pr_35_31_64_47 Lime plastersPrimary
Pr_35_31_64_48 Lime renders

CAWS

M20/47 One coat proprietary plaster

M1/362 Lime

M20/57 Lime:sand

M20/42 Multicoat proprietary plaster

M20/330 Proprietary lime:sand

M20/240 One coat proprietary plaster

M20/220 Multicoat proprietary plaster

SKU Code

DDTA

Specification data - Lime plasters

Classification data

Product reference

Diasen Diathonite Thermactive.037.

Components

Hydraulic lime.

Lime notification

To BS EN 459-1, NHL 5.

Reinforcement

Granulated recycled cork.

Guidance for specification option:

Grain size: 0–3 mm.

Colour

Light grey.

Typical yield

2.60 kg/m² (± 20%) for each cm of thickness.

Density

250 kg/m³ (±15%).

Application temperature

+5°C to +30°C.

Reaction to fire

To UNI EN 13501-1, A1.

Compressive strength

To EN 998-1, 2.8 N/mm².

Manufacturer guidance

Category CSII.

Flexural strength

To UNI EN 1015-11, 1.0 N/mm².

Vapour Permeability

To UNI EN ISO 12572, µ = 3.

Thermal conductivity (maximum)

To UNI EN 1745, 0.037 W/mK.

Thermal resistance

To UNI 10355, 0.270 m²K/W.

Specific heat

To UNI EN 1745 and UNI EN 10456, 1000 J/kgK.

MoistureDiffusivity

To UNI TS 11300-1, 0.148 x 10⁻⁶ m²/s.

Water absorption by capillarity

To UNI EN 1015-18, 1.00 kg/m² min⁰∙⁵.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Manufacturing plant location

Material

Hydraulic lime
Cork
Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Certified

Stage
Normalised unit (kg CO₂ eq/kg)
Declared unit (kg CO₂ eq/unit)
Stage:A1–A3 ('Production stage')
Normalised unit : 0.004 (kg CO₂ eq/kg)
Declared unit : 0.895

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0.43 %

Expected Life

100 year

Product certifications

Product certifications

EPD

EPD

Diasen Diathonite Thermactive .037 Environmental Product Declaration (EPD)

Literature

Diasen Diathonite Thermactive Technical.037 Datasheet

Diasen Diathonite Thermactive Technical.037 Datasheet

Diasen Diathonite Thermactive.037 Material Safety Datasheet

Diasen Diathonite Thermactive.037 Material Safety Datasheet

Diasen Diathonite Thermactive.037 Declaration of Performance (DOP) EN 998-1 (CE)

Diasen Diathonite Thermactive.037 Declaration of Performance (DOP) EN 998-1 (CE)

Diasen Diathonite Thermactive.037 Declaration of Performance (DOP) EN 998-2 (CE)

Diasen Diathonite Thermactive.037 Declaration of Performance (DOP) EN 998-2 (CE)

Diasen Diathonite Thermactive.037 Declaration of Performance (DOP) BS 998-1 (UKCA)

Diasen Diathonite Thermactive.037 Declaration of Performance (DOP) BS 998-1 (UKCA)

Diasen Diathonite Thermactive.037 Declaration of Performance (DOP) BS 998-2 (UKCA)

Diasen Diathonite Thermactive.037 Declaration of Performance (DOP) BS 998-2 (UKCA)
