Diasen Diathonite Evolution - Cork Lime Thermal Insulating Plaster

Name: Diasen Diathonite Evolution - Cork Lime Thermal Insulating Plaster
Brand: Diasen
SKU: iW3JXBCkg7o51H3oUCgaTJ

Verified by manufacturer 15 hours ago

Diasen

Product certifications:

EPD
Certificate type

Breathable, cork/lime thermal insulating plaster.

Jump to:

Request BIM

01228 711511 Website

Application

Premixed thermal insulating plaster for indoor and outdoor applications.
Solves the problems related to thermal bridges and moulds induced by humidity, ensuring a healthy environment and a high living comfort.

Description

Diathonite Evolution is a cork/lime thermal insulating plaster. It can be applied internally or externally. This premixed plaster is reinforced with granulated recycled cork (grain size 0–3 mm), clay, diatomaceous powders, hydrated lime and natural hydraulic lime (NHL 3.5).

Diathonite Evolution is a ready-to-use, highly moisture vapour diffusion open, water capillary active thermal plaster, designed for indoor and outdoor application. The product can be applied onto a range of substrates (stone, brick, blockwork, wood wool board, and timber). The product has an excellent reaction to fire performance (non-combustible Euro Class A1). The product is highly mould resistant.

Features and benefits:

Insulates from cold and heat, ensuring good dynamic phasing parameters, up to 12 hours depending on the wall characteristics.
Highly moisture vapour diffusion open.
Highly resistant to mould and condensation.
Absorbs and releases the excess humidity.
Suitable for historic restoration.
Can be applied onto curved surfaces
Can be applied on top of old existing lime plaster

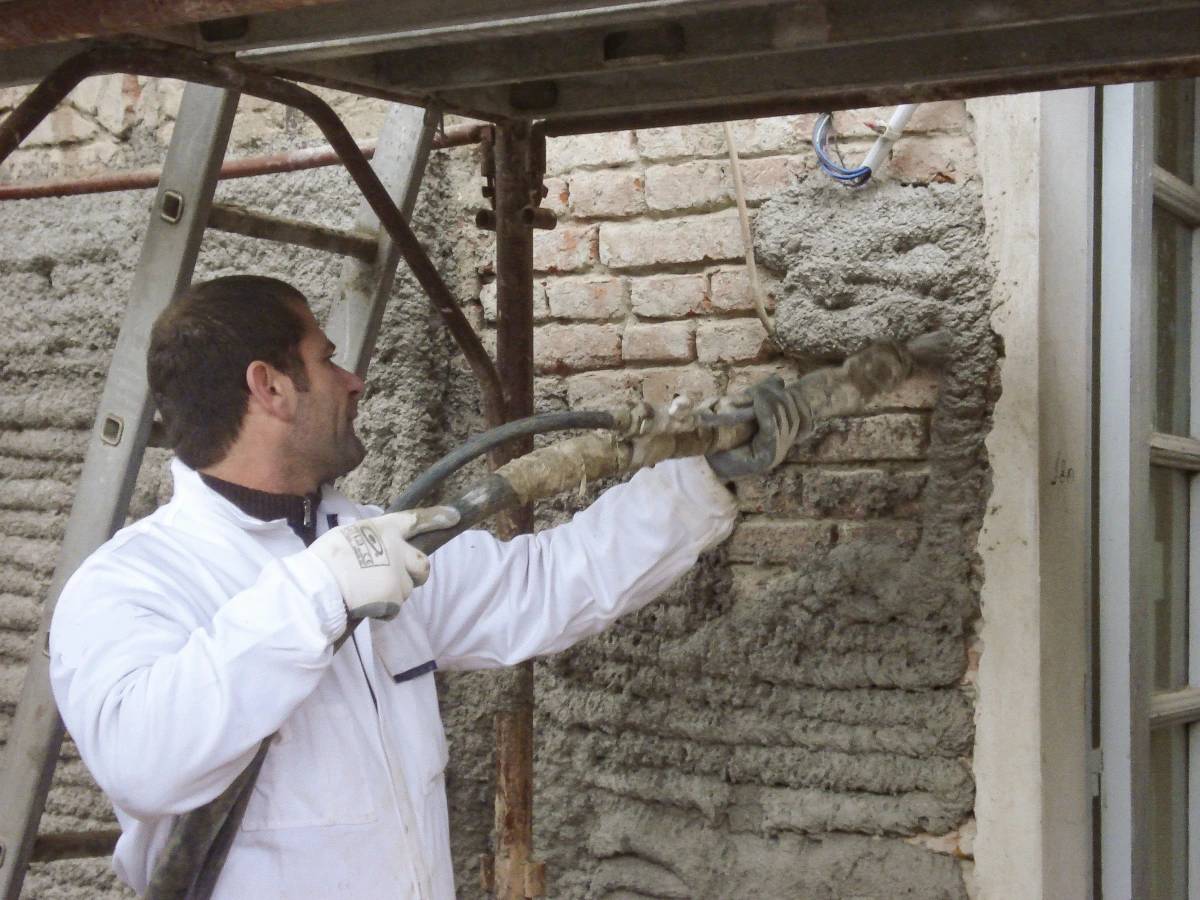

Fast construction system (thermal brick + thermal plaster), and quick application (plastering machine).
Made of natural hydraulic lime NHL 3.5 (EN 459-1).
Excellent compression resistance.
Reaction to fire: class A1 (EN 13501-1).
External insulation with no need for joints.
Product with double CE (EN 998-1, EN 998-2) and UKCA certification (BS EN 998-1, BS EN 998-2).

General information

Color	Grey
Finish	Other
Material	Hydraulic lime Cork
Shape	Formless
Warranty description	Ten year Guidance for specification option: 10 year manufacturer warranty Manufacturer guidance This product has a one year shelf life.

Uniclass	Pr_35_31_64_47 Lime plastersPrimary Pr_35_31_64_48 Lime renders
CAWS	M20/47 One coat proprietary plaster M1/362 Lime M20/57 Lime:sand M20/42 Multicoat proprietary plaster M20/330 Proprietary lime:sand M20/240 One coat proprietary plaster M20/220 Multicoat proprietary plaster

SKU Code	DDE

Specification data - Lime plasters

Classification data
Product reference	Diasen Diathonite Evolution.
Components	Hydraulic lime.
Lime notification	To BS EN 459-1, NHL 3.5.
Reinforcement	Granulated recycled cork. Guidance for specification option: Grain size: 0–3 mm.
Colour	Light grey.
Typical yield	3.70 kg/m² (±10%) for each cm of thickness.
Density	360 kg/m³ (±20).
Application temperature	+5°C to +30°C.
Reaction to fire	To UNI EN 13501-1, A1.
Compressive strength	To EN 998-1, 2.95 N/mm². Manufacturer guidance Category CSII.
Flexural strength	To UNI EN 1015-11, 1.5 N/mm².
Vapour Permeability	To UNI EN 1015-19, µ = 4.
Thermal conductivity (maximum)	To UNI EN 1745, 0.045 W/mK.
Thermal resistance	To UNI 10355, 0.222 m²K/W.
Specific heat	To UNI EN 1745 and UNI EN 10456, 1000 J/kgK.
MoistureDiffusivity	To UNI TS 11300-1, 0.125 x 10⁻⁶ m²/s.
Water absorption by capillarity	To UNI EN 1015-18, 0.40 kg/m² min⁰∙⁵.

Sustainability data

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Italy
Manufacturing plant location	60041 Zona Industriale Berbentina AN, Italy
Material	Hydraulic lime Cork
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : 0.002 (kg CO₂ eq/kg) Declared unit : 0.8 Lower emissions
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0.43 %
Expected Life	100 year
