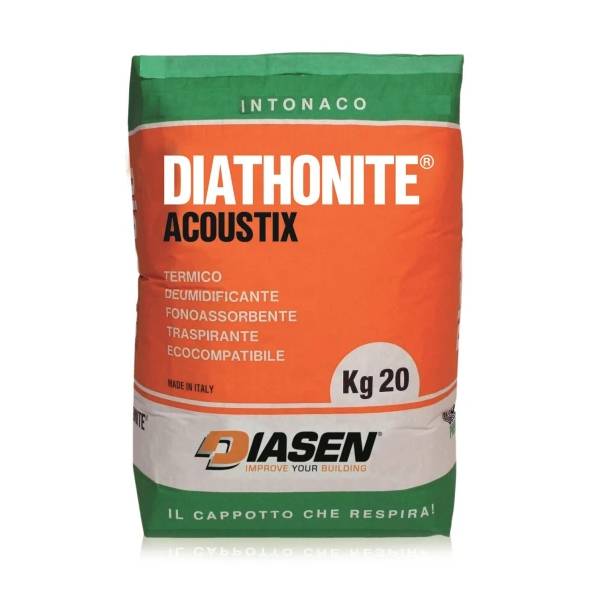

Diasen Diathonite Acoustix Plus - Cork/Lime Thermal Acoustic Plaster

Name: Diasen Diathonite Acoustix Plus - Cork/Lime Thermal Acoustic Plaster
Brand: Diasen
SKU: ephniDuE5Pfwvax5su6Vz5

Verified by manufacturer 17 hours ago

Diasen

Product certifications:

EPD
Certificate type

Eco-friendly, sound absorbing, breathable cork/lime-based plaster with improved sound absorbing ability.

Jump to:

Request BIM

01228 711511 Website

Application

Premixed plaster for indoor and outdoor applications, it is suitable for the realization of sound-absorbing coatings on walls and ceilings of cinema, auditorium, conference rooms, places of worship, sports facilities and in general all large environments where it is necessary to reduce noise.
Suitable for the noise reduction of facades and partition walls. Diathonite Acoustix+ is a natural compound and is suitable where moisture vapour diffusion open materials are required.

Description

Premixed plaster for Noise Reduction (NR) for walls and ceilings.

Diathonite Acoustix+ is environmentally friendly, formulated with natural raw materials such as cork (0–3 mm in grain size), clay, diatomaceous powders and hydraulic binder. Thanks to improved sound-absorbing ability, Diathonite Acoustix+ eliminates reverberation and reduces reflected echoes. The plaster has a high breathability, good thermal insulation, dehumidifying capacity and excellent reaction to fire. The porosity that characterises the structure and the presence of natural hydraulic lime make the plaster also bacteriostatic and highly mould resistant.

Features and benefits:

Excellent sound absorbing properties: NRC 0.75.
Highly moisture vapour diffusion open, thus avoiding mould formation and condensation.
Excellent compression resistance
Reaction to fire: class A1.
Quick application (plastering machine/hand trowel applied).
Product with double CE certification (EN 998-1, EN 998-2).
It can be applied on top of old plasters.
Easily applicable on curved surfaces and complex geometries.
Product obtained LEED credits.
Product with double CE (EN 998-1, EN 998-2) and UKCA certification (BS EN 998-1, BS EN 998-2).

General information

Color	Grey
Finish	Other
Material	Hydraulic lime Lime Guidance for specification option: Hydrated. Cork Clay Other Guidance for specification option: Diatomaceous powder.
Shape	Formless
Warranty description	Ten year Guidance for specification option: 10 year post application warranty. Manufacturer guidance Shelf life of this product is one year.

Uniclass	Pr_35_31_64_47 Lime plastersPrimary Pr_35_31_64_48 Lime renders
CAWS	M20/47 One coat proprietary plaster M1/362 Lime M20/57 Lime:sand M20/42 Multicoat proprietary plaster M20/330 Proprietary lime:sand M20/240 One coat proprietary plaster M20/220 Multicoat proprietary plaster

SKU Code	DDA+

Specification data - Lime plasters

Classification data
Product reference	Diaseon Diathonite Acoustix Plus.
Components	Hydraulic lime, hydrated lime, cork, clay, diatomaceous powder.
Reinforcement	Granulated recycled cork. Guidance for specification option: Grain size: 0–3 mm.
Colour	Light grey.
Typical yield	4.0 kg/m² (± 10%) for each cm of thickness.
Density	400 kg/m³ (±30%).
Application temperature	+5°C to +30°C.
Reaction to fire	To UNI EN 13501-1, A1.
Compressive strength	To EN 998-1, 4.0 N/mm². Manufacturer guidance Category CSIII.
Flexural strength	To UNI EN 1015-11, 1.6 N/mm².
Vapour Permeability	To UNI EN 1015-19, µ = 4.
Thermal conductivity (maximum)	To UNI EN 1745, 0.075 W/mK. Manufacturer guidance Category T1.
Thermal resistance	To UNI 10355, 0.133 m²K/W.
Water absorption by capillarity	To UNI EN 1015-18, 1.00 kg/m² min⁰∙⁵.
Noise reduction coefficient	To ASTM C423, 0.75.
Sound absorption class	To UNI EN ISO 11654, Class C.
Sound insulation rating	To UNI EN ISO 10140–2 and UNI EN ISO 717-1, 3 dB.

Sustainability data

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Italy
Manufacturing plant location	Zona Industriale Berbentina, 60041 Zona Industriale Berbentina AN, Italy
Material	Hydraulic lime Lime Guidance for specification option: Hydrated. Cork Clay Other Guidance for specification option: Diatomaceous powder.
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : 0.002 (kg CO₂ eq/kg) Declared unit : 0.87
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0.43 %
Expected Life	100 year
