DH Plus Anchors
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type

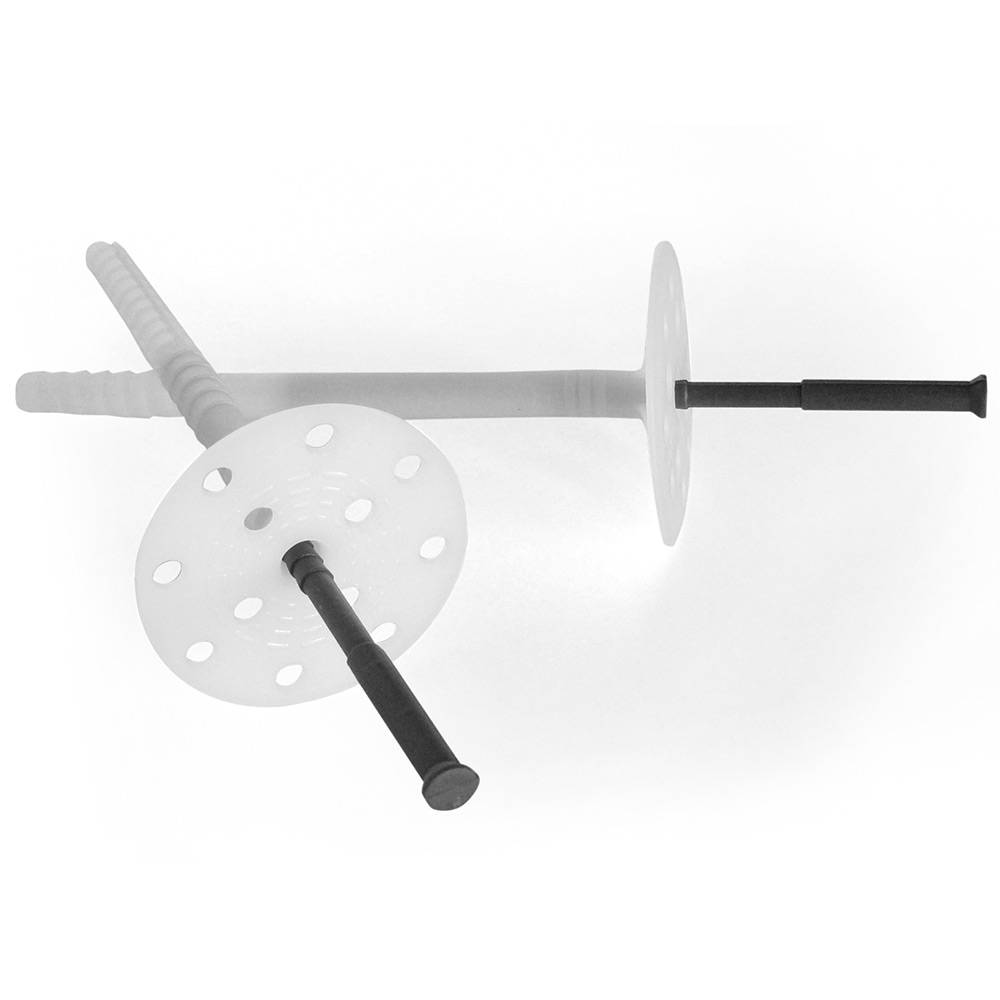

Anchor/ fixing pin made from plastic designed to fix rigid insulation and other sheet membranes to brick and concrete structures.
Application
An insertion pin used to rigid insulation and the attachments of sheet membranes to brick and concrete structures.
Description

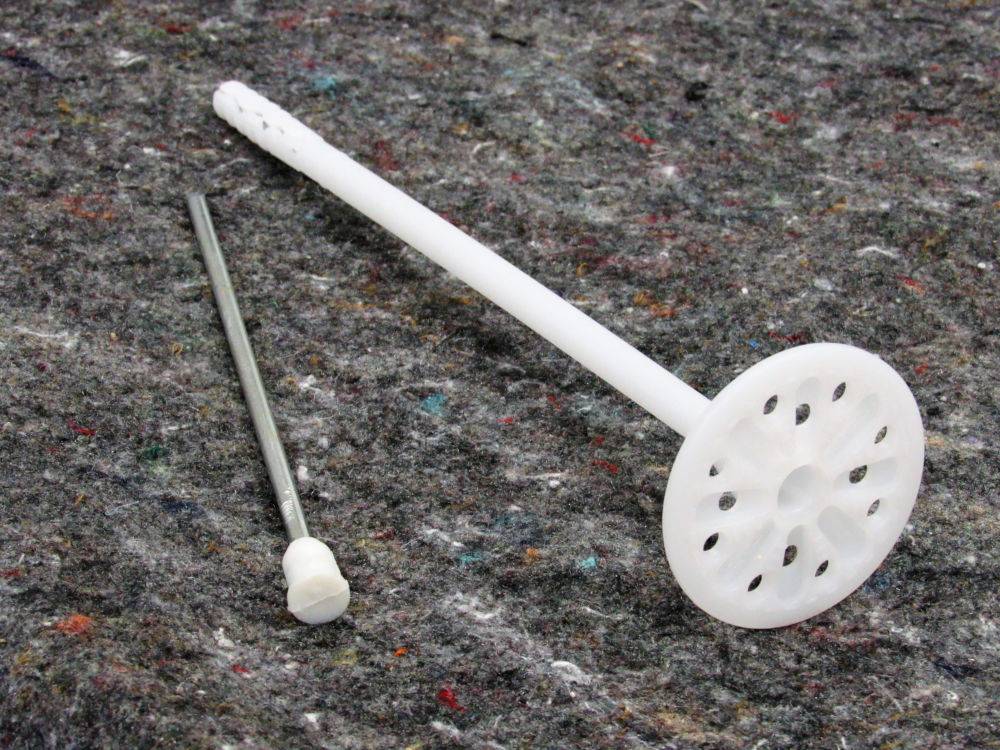

Anchor/ fixing pin made from plastic designed to fix rigid insulation and other sheet membranes to brick and concrete structures. A pilot hole is usually required to be drilled before hammer fitting the pin into the structure. The plastic pin is surrounded by a plastic sheath which acts as a rawplug when the pin is inserted. A circular surface washer helps spread the point load.
Features and benefits:
- Available in multiple sizes.
- Very strong.
General information
Color | White |
Finish | Smooth |
Material | Plastic Steel |
Shape | Circle Other |
Length | 90 mm |
Width | 10 mm |
Warranty description | 15 year Guidance for specification option: 15 year limited warranty where products used strictly for intended purpose. |
Uniclass | |
CAWS | G20/721 Expansion anchors |
Product range |
Specification data - Expansion anchors
Material | Polypropylene and plastic.Guidance for specification option: Sleeve. |
Finish | Smooth. |
Anchor length | 70 mm.90 mm.120 mm.140 mm.160 mm.180 mm.200 mm.220 mm. |
Accessories | Not required.Fixing dowels.THERMOMASTER Cover. |
Thread diameter | 10 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Literature
Brochure - Wallbarn Products & Services Overview(A5)
