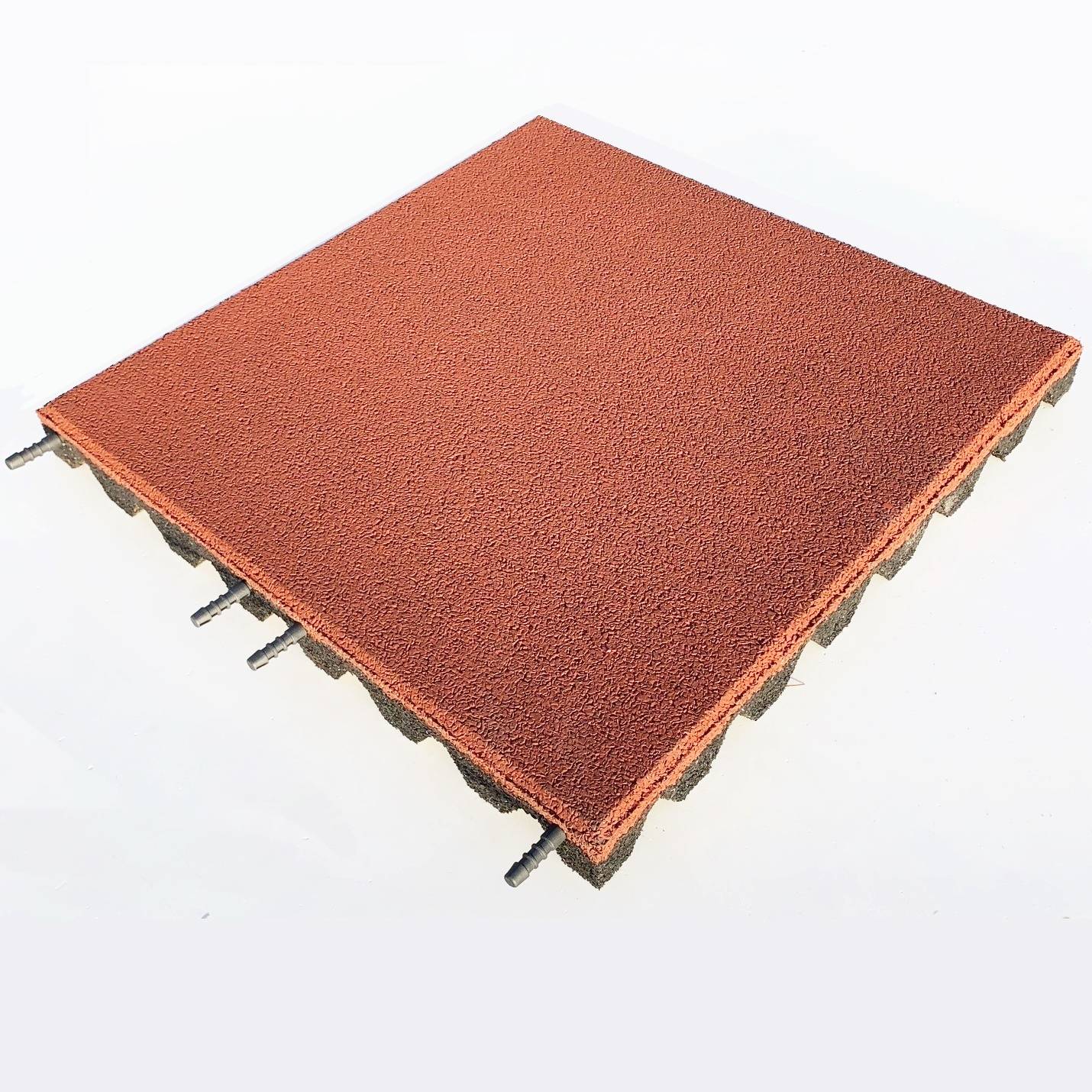

Dflect EPDM Coated Tile - Rubber Tile
Verified by manufacturer 2 months ago
ISO 9001 Quality Management
Certificate type
Styrene-butadiene rubber (SBR) granulate playground tiles with a polyurethane (PU) binding agent and a top layer of ethylene propylene diene monomer (EPDM).
Application
Suitable for use within playground applications.
Description
Styrene-butadiene rubber (SBR) granulate playground tiles with a polyurethane (PU) binding agent and a 5 mm top layer of ethylene propylene diene monomer (EPDM).
Features and benefits:
- REACH compliant.
- TUV certified.
- Provides a high level of fire and smoke resistance.
- Available in a range of colours and sizes.
- Manufactured in accordance with EN 1177.
- Three-year guarantee for wear resistance.
- 100% recyclable.
General information
Color | Black Green Grey Red Other Guidance for specification option: Sand. |
Finish | Anti-slip |
Material | EPDM Rubber |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 30 mm |
Warranty description | Three year Guidance for specification option:
|
Uniclass | |
CAWS | M50/10 Resilient floor tiling M50/110 Resilient floor tiling |
Product range |
Specification data - Ethylene propylene diene monomer (EPDM) rubber tiles
Standard | To BS EN 1177 and BS EN 1176. |
Thickness (minimum) | 25 mm.30 mm.40 mm.45 mm.50 mm.65 mm.80 mm.100 mm. |
Size | 500 x 500 mm. |
Colour | Black.Green.Grey.Red.Sand. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | To BS EN 7976 & EN1339 Annex 1, dry: 102 wet: 62.Guidance for specification option: Low potential for slip. |
Recycled content | 80%. |
FireRating | CFL to EN 13501-1. |
Water permeability | 325 mm per hour to EN 12616. |
Smoke classification | S1 to EN 13501-1. |
Insulation value | Rd: 0.15 to EN 13165; U-value: 3.13 W/m²·K to EN 6946. |
Density | 800 kg/m³. |
Material: | Styrene-butadiene rubber (SBR) with EPDM coating. |
Third-party certification | REACH compliant and TUV certified. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature

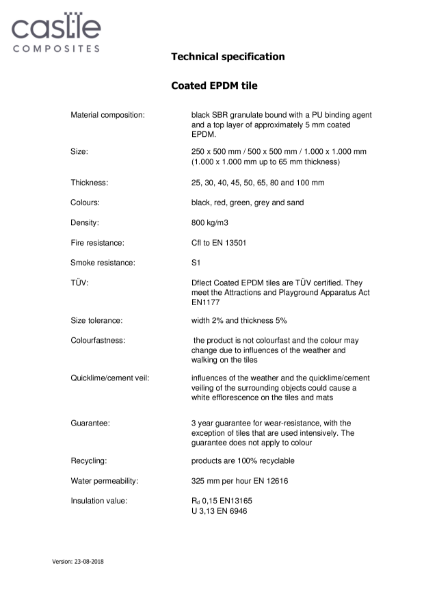

Castleflex - Coated EPDM
Castleflex Rubber Tile - Install Guide
Dflect Brochure
Similar products from Castle Composites

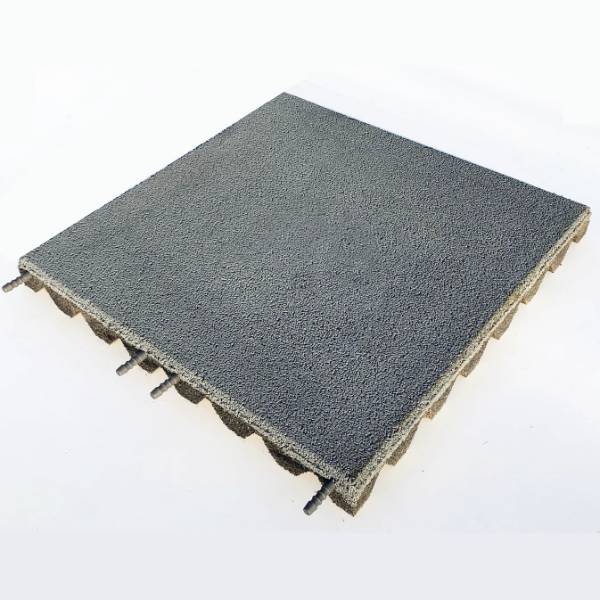

Castleflex EPDM Coated Tile - Rubber Tile

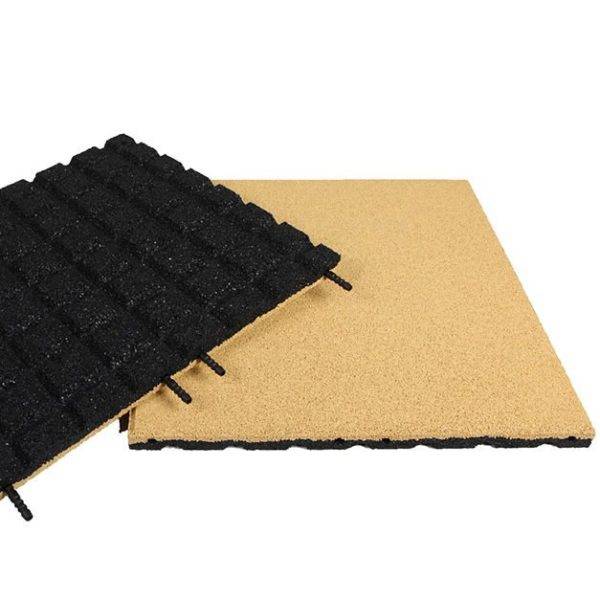

Castleflex EPDM Rubber Tiles - Rubber Tile
