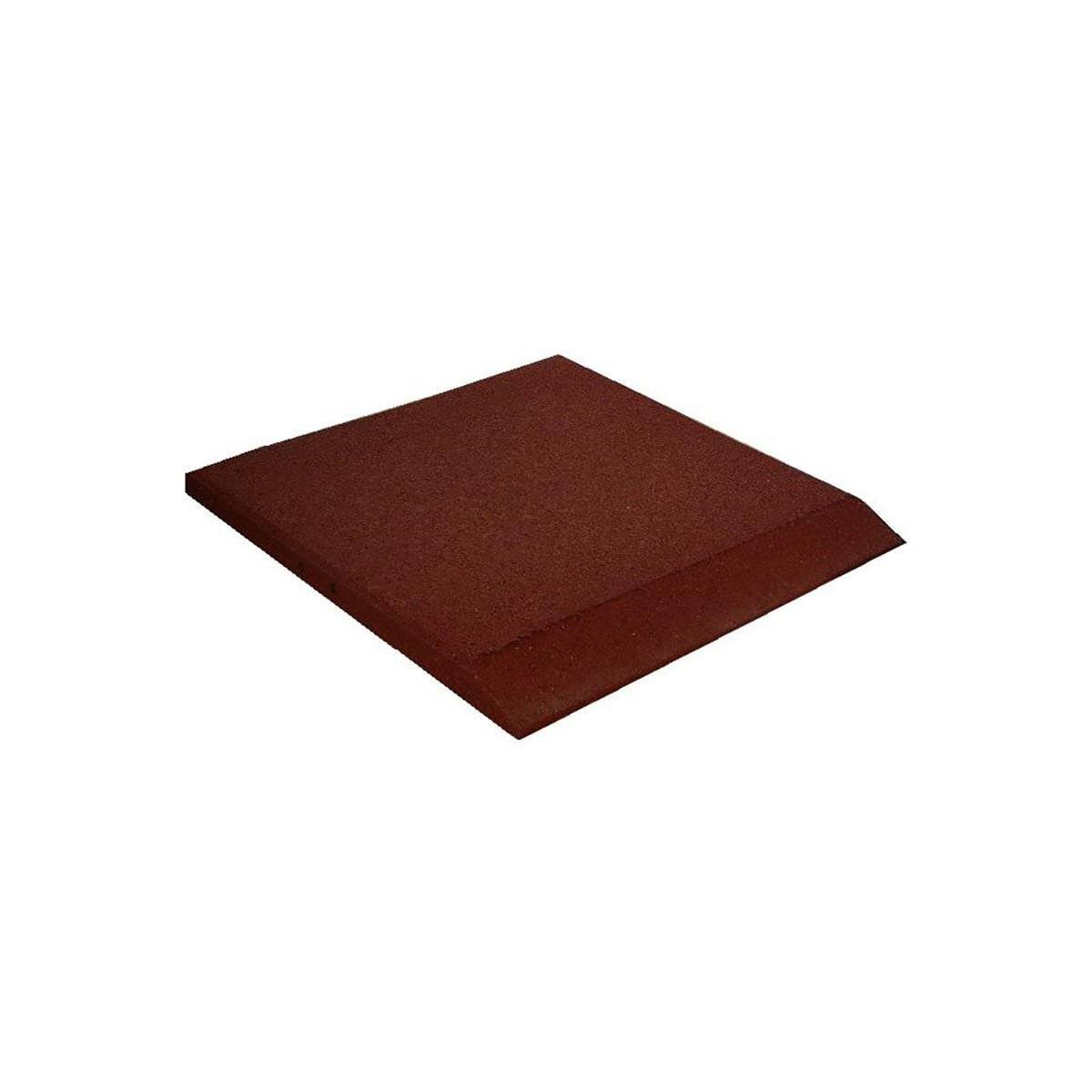

Dflect 500 Edge Ramp - Rubber Tile
Verified by manufacturer 1 month ago
ISO 9001 Quality Management
Certificate type
Recycled rubber granulate edge ramp tile.
Application
Suitable for installation onto almost any surface. For use in conjunction with Dflect interlocking tiles.
Description
High quality recycled rubber granulate edge ramp tile.
Features and benefits:
- Manufactured with channels on the underside to provide drainage and critical fall height test results (available on request).
- Critical fall height test result of up to 3.2 m.
- Reduced labour and adhesive requirements.
- Tested in accordance with EN 1177.
- Includes interlocking pins for laying.
General information
Color | Black Green Grey Red Beige |
Finish | Anti-slip |
Material | Rubber |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 30 mm |
Warranty description | Five year |
Uniclass | |
CAWS | M50/10 Resilient floor tiling M50/110 Resilient floor tiling |
Product range |
Specification data - Granular rubber tiles
Standard | To BS EN 1177 and BS EN 1176. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | Dry: 102; Wet: 62 (Low Potential For Slip), BS EN 7976 & EN1339 Annex 1. |
Recycled content | 100%. |
Size | 500 x 500 mm. |
Thickness | 25 mm.30 mm.40 mm.45 mm.50 mm.65 mm.100 mm. |
Colour | Black. Green. Grey. Red. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature
2435 PU Adhesive - Data
Dflect Rubber Tiles - Data
Dflect Rubber Tiles - Install Guide
Dflect Brochure
