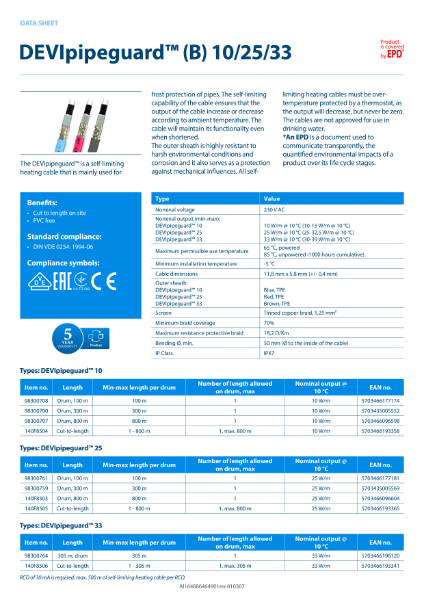

DEVIpipeguard™ 10/ 25/ 33 Heater Cable - Heating Cable - Trace Heating

Name: DEVIpipeguard™ 10/ 25/ 33 Heater Cable - Heating Cable - Trace Heating
Brand: Danfoss Ltd
SKU: caCdKR8DiqDZabz4BNtQaE

Verified by manufacturer 5 months ago

DEVIpipeguard™ 10 - 140F8504

Product certifications:

Self-limiting heating cable, for frost protection applications.

Jump to:

Application

Suitable for the frost protection of pipes within multiple indoor floor constructions.

Not approved for use in drinking water.

Self-limiting heating cable with highly resistant outer sheath.

Features and benefits:

Can be cut to length on site (or drums can be supplied).
PVC free.
The self-limiting capability of the cable ensures that the output of the cable increases or decreases according to ambient temperature.
The cable will maintain its functionality even when shortened.
The outer sheath is highly resistant to harsh environmental conditions and corrosion, and it also serves as a protection against mechanical influences.
Compliant with DIN VDE 0254: 1994-06.

Note: The cables must be over-temperature protected by a thermostat.

Color	Blue Red Brown
Material	Thermoplastic elastomer (TPE) Copper Polyolefin
Shape	Other
Length	305000 mm 800000 mm Bespoke
Width	11.8 mm
Height	5.8 mm
Warranty description	Five year

Uniclass	Pr_70_60_36_76 Self-regulating trace heating cablesPrimary
CAWS	T90/478 Underfloor electric heating cables S90/565 Trace heating tape for pipework

SKU Code	140F8504, 140F8505, 140F8506

Classification data
Maximum withstand temperature	-
Power on	65°C.
Power off	85°C. Guidance for specification option: 1000 hours cumulative.
Power output	10 W/m at 10°C. Guidance for specification option: Nominal. Range: 10–15 W/m at 10 °C.
Voltage rating	230 V a.c.
Cable construction	-
Conductors	Nickel-plated copper.
Electrically conductive covering	Tinned copper braid. Guidance for specification option: Maximum resistance: 18.2 Ω/Km.
Overjacket	Polyolefin.
Colour	Blue.
Ingress protection (minimum)	IPX7.
Insulation	Radiation cross-linked, primary dielectric insulation.
Cable length	800 m maximum, cut-to-size.
Installation temperature	-5°C (minimum).

Country of product manufacture	Germany
Material	Thermoplastic elastomer (TPE) Copper Polyolefin
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 0.43 Manufacturer guidance See EPD for details. Value guidance: A1-A3 4.34E-01.
