Desktop Modules

Name: Desktop Modules
Brand: Marshall-Tufflex Ltd
SKU: t2f7FkKcouCnxuvDt6KY65

Verified by manufacturer 1 day ago

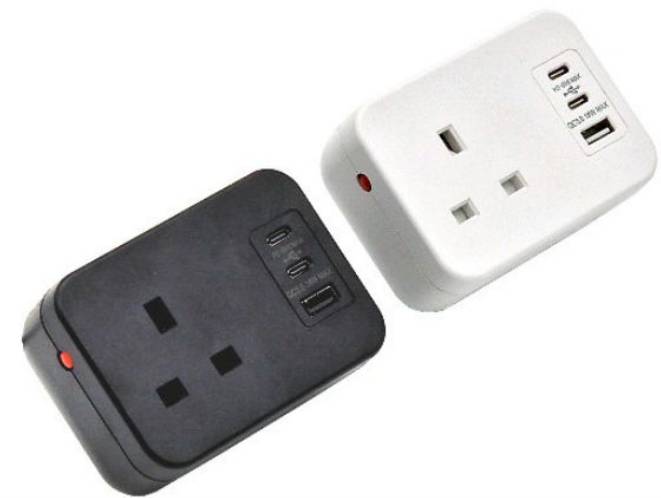

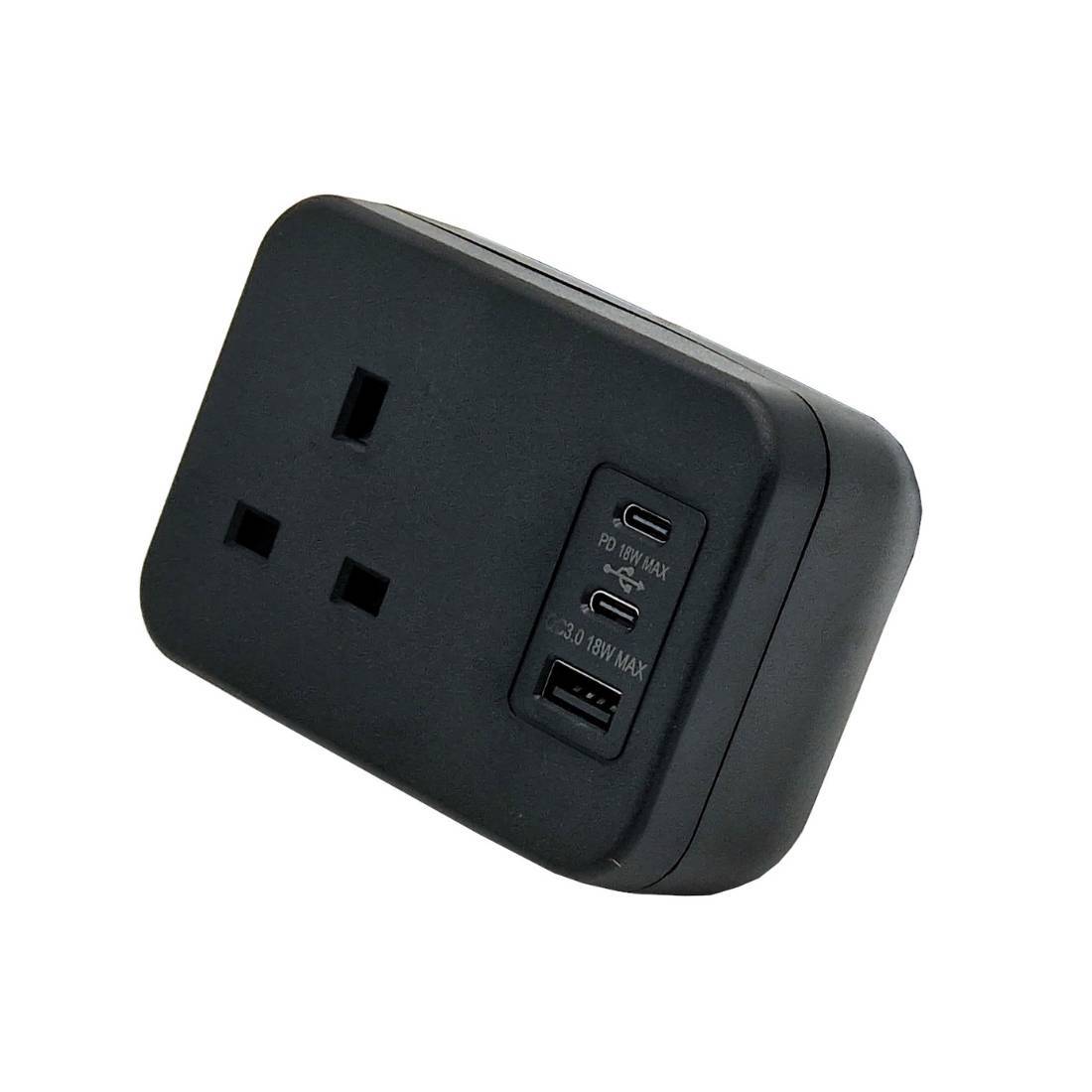

DTM 1G Power with 3 x USB

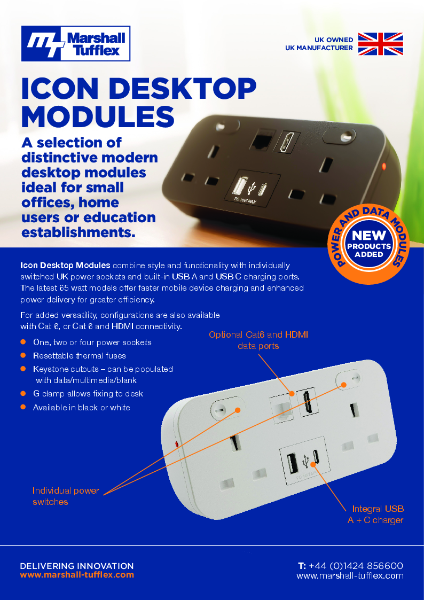

A range of power and data modules with a distinctive modern design, particularly suitable for small offices, home users or education establishments.

Jump to:

+44 (0)1424 856600 Website

Application

Suitable for use in on top of the desk and particularly for small offices, home users or education establishments.

Description

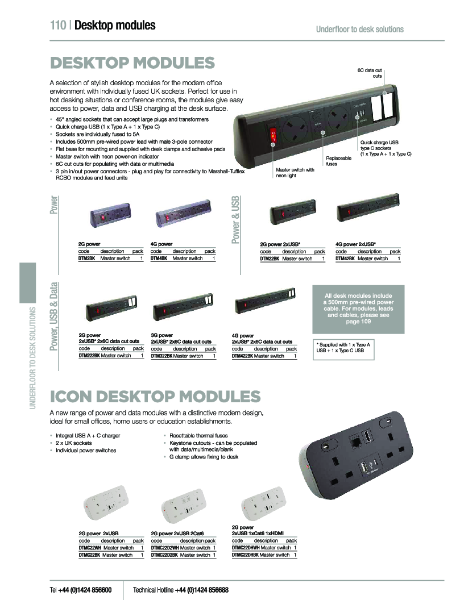

A selection of stylish desktop modules for the modern office environment with individually fused UK sockets. particularly suitable for use in hot desking situations or conference rooms, the modules give easy access to power, data and USB charging at the desk surface.

Features and benefits:

45° angled sockets that can accept large plugs and transformers.
Quick charge USB (1 x Type A + 1 x Type C).
Sockets are individually fused to 5A.
Includes 500 mm pre-wired power lead with male 3-pole connector.
Flat base for mounting and supplied with desk clamps and adhesive pads.
Master switch with neon power-on indicator.
6C cut outs for populating with data or multimedia.
3 pin in/ out power connectors - plug and play for connectivity to Marshall-Tufflex RCBO modules and feed units.

General information

Color	Black White
Finish	Matt
Material	Polycarbonate
Shape	Rectangle
Length	100 mm 150 mm 265 mm 410 mm 242 mm
Width	80 mm 76 mm
Height	80 mm

Uniclass	Pr_65_72_97_52 Multi-gang power outletsPrimary
CAWS	V90/440 Standard socket outlets

Specification data - Multi-gang power outlets

Classification data
Standard	To BS 1363-2.
Current rating	13 A.
Fuse protection	Re-settable 3.15 A fuses.
Outgoing ways	-
Type	Unswitched socket outlets.
Quantity	1.
Features	GST18 connector on 0.5 m fly lead. Dual USBs type C (PD 18 W maximum). Single USBs type A (PD 18 W maximum). G-clamp for deck mounting.
RatedVoltage	250 V.
Dimensions	74 x 76 x 100 mm.
