DeltaWing Cladding And Screening - Steel Louvre Protective Privacy Screen
Verified by manufacturer 1 month ago

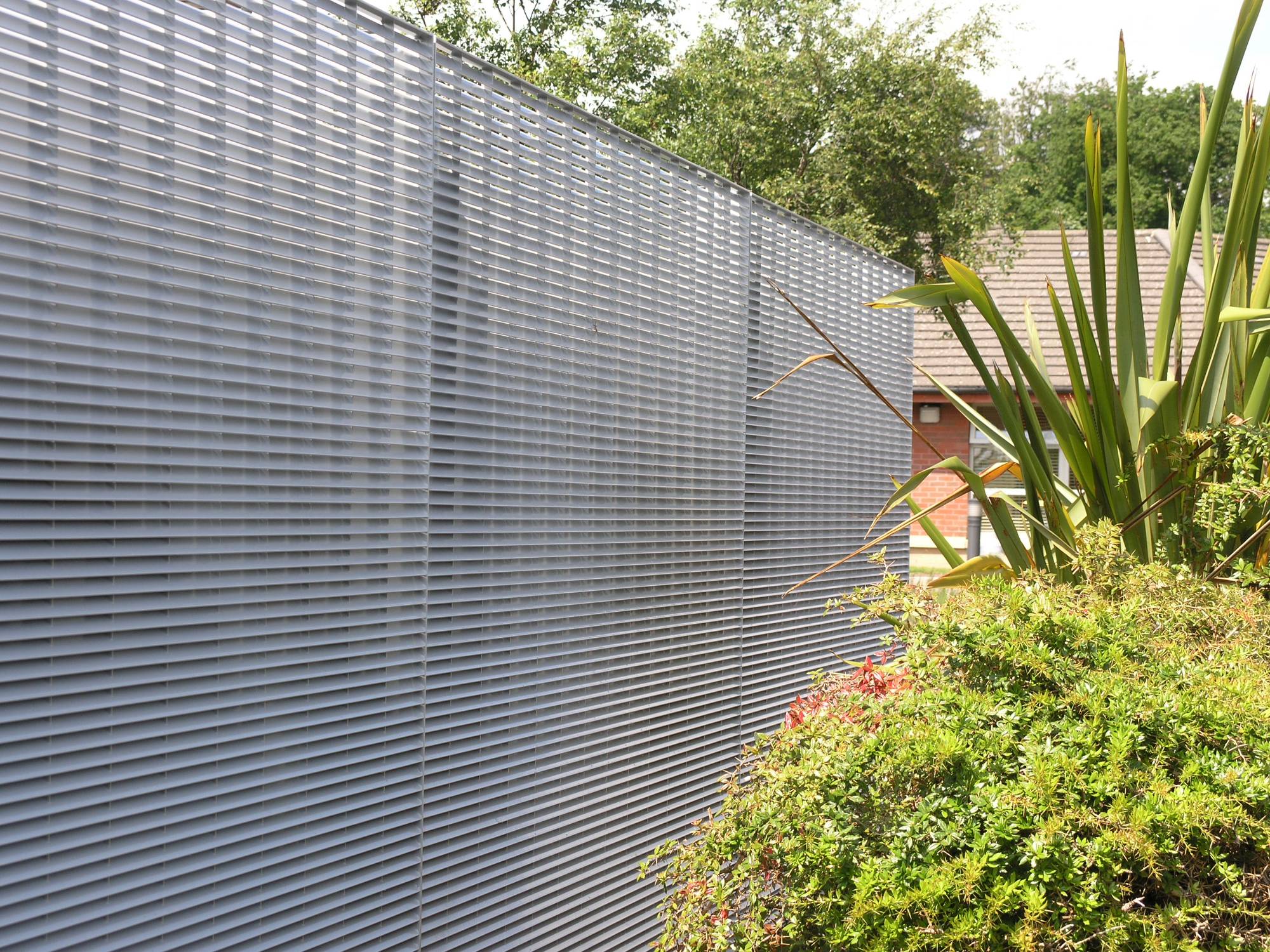

DeltaWing-100 Cladding and Screening, Louvre Flat Bars Inclined Downwards
DeltaWing-100 Cladding and Screening, Louvre Flat Bars Inclined Downwards
A steel louvre with recessed vertical bars, providing five alternate levels of visual screening for cladding, plant housing or brise soleil.
Application
Louvre Flat Bars Inclined Downwards:
- Suitable for wall cladding, car park screens, compounds, plant housing, ventilation grilles, balconies, balustrades, wheelie bin stores and brise soleil.
Louvre Flat Bars Inverted:
- Suitable for compounds, plant housing, balconies and balustrades, or any elevated roof-top situation.
Description
A steel louvred panel system which is notable for its durability and the perfectly formed intersections of the grating, which form a crisp geometric aesthetic. The range offers a choice of total or partial visual screening with a corresponding level of free area for ventilation.
The steel construction creates a robust panel suitable for ground and street-front locations as well as screening roof-top plant.
Features and benefits:
- Framed panels are manufactured to custom-sizes for a wide variety of applications such as wall cladding, car park screens, compounds, plant housing, ventilation grilles, balconies and balustrades, wheelie bin stores and brise soleil.
- Manufactured from inclined carbon steel flat bars, which are pressure locked to recessed vertical flat bars.
- The inclined louvres can be spaced at any increment of 11 mm to provide the required level of visual screening.
- Louvre flat bars 40 x 2 mm set at 45 degrees, centred at 22, 33, 44, 66 or 88 mm.
- Vertical flat bars 20 x 2 mm, centred at 132 mm.
- Panels and ancillary steelwork can be supplied galvanized only or galvanized and powder coated to any RAL colour.
General information
Color | Grey Beige Black Blue Bronze |
Finish | Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated Guidance for specification option: Hot-dip galvanized and polyester powder coated to BS EN ISO 1461 and BS EN 13438. |
Material | Steel |
Shape | Rectangle Manufacturer guidanceTo suit project requirements. |
Length | Bespoke |
Width | 1850 mm Guidance for specification option: Maximum. Manufacturer guidance
|
Height | 1600 mm Guidance for specification option: Maximum. Manufacturer guidance
|
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal L10/60 Security L10/650 Metal louvres L10/670 Brises-soleil L10/690 Security L30/55 Proprietary balustrades L30/560 Proprietary balustrades |
Product range |
Specification data - Carbon steel louvre panel units
Material | Steel. |
Finish | Galvanized.Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated.Guidance for specification option: Hot-dip galvanized and polyester powder coated to BS EN ISO 1461 and BS EN 13438. |
Colour | Grey.Beige.Black.Blue.Bronze.Brown.Copper.Gold.Green.Red.Silver.White.Yellow.Other.Guidance for specification option: Hot-dip galvanized and powder-coated to any RAL/BS colour. Insert requirements. |
Construction | Mild steel S235JR. |
Actuators | Fixed. |
Accessories | M10 stainless steel bolts, grade A2.Secondary support steelwork.Guidance for specification option: Designed and supplied as required. |
Panel | DeltaWing–34. Guidance for specification option: 34% visual screening; 67% free area. DeltaWing–45. Guidance for specification option: 45% visual screening; 66% free area. DeltaWing–70. Guidance for specification option: 70% visual screening; 65% free area. DeltaWing–90. Guidance for specification option: 90% visual screening; 63% free area. DeltaWing-100. Guidance for specification option: 100% visual screening; 60% free area. |
Panel size | 1600 x 1850 mm (maximum). Guidance for specification option: Bespoke H x W, insert requirements (up to 4 m²). Manufacturer guidance
|
Inclination angle | Downwards. Guidance for specification option: Panels are designed with the louvre flat bars inclined downwards to the outside of the enclosed area. |
Finish: | Hot-dip galvanized. Guidance for specification option:
Hot-dip galvanized and polyester powder coated, RAL. Guidance for specification option:
|
Framing | 50 x 4 mm flat bar. Guidance for specification option: Panels bolted to structure on both sides, in line. 60 x 30 mm angled bar. Guidance for specification option: Panels bolted behind louvre at 90º. |
Louvre blades | Horizontal flat bars: 40 x 2 mm, 45°, Vertical flat bars: 20 x 2 mm. Guidance for specification option:
|
Centres | 22 mm. |
Free area | 60%. |
CoverageArea | Visual screen: 100%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.42 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % |
Literature
Case Studies: Steel Louvred Screening, Plant Housing, Bin Stores & Fencing
Louvred Gratings for Screening, Ventilation and Security
Case studies

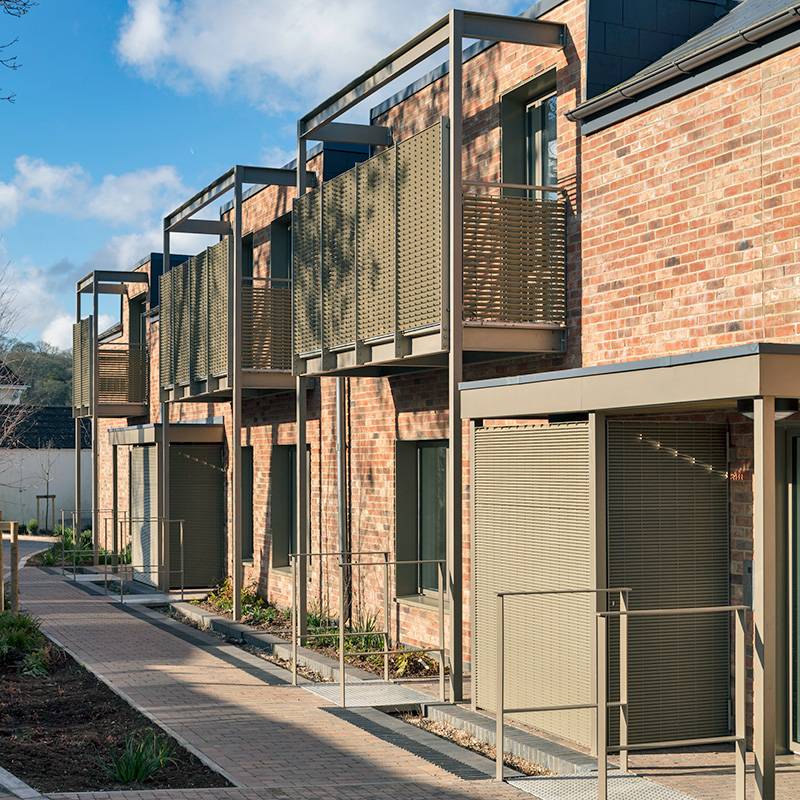

DeltaWing used for screening balconies at social housing project
