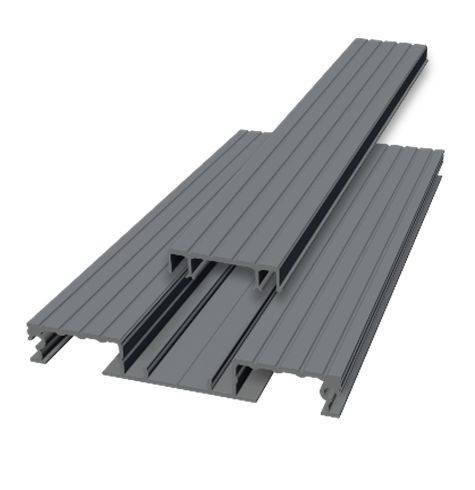

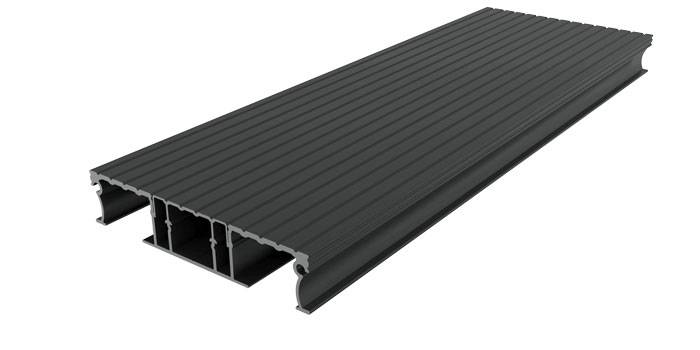

Delta30 Aluminium Decking System - Aluminium Non-combustible Decking Board

Name: Delta30 Aluminium Decking System - Aluminium Non-combustible Decking Board
Brand: MyDek Ltd
SKU: 6AorTgdtTWeEP6TTLT9Fjj

Verified by manufacturer 2 months ago

MyDek Ltd

Third party certifications:

BS EN 13501-1
Certificate type

Durable, non-combustible, two-part aluminium decking.

Jump to:

BOS

+44 3300 94 94 11 Website

Application

For use on balconies, walkways and roof terraces.

Description

A durable, non-combustible, two-part aluminium decking system designed to enhance balconies and terraces, available in a range of standard finishes. Available with as a complete decking system with accessories to facilitate fast and accurate installation, MyDek offers speed, accuracy and choice in decking solutions. Fire Class A2 - s1, d0 and A2fl.

Features and benefits:

Fully certified.
Non-combustible.
Lightweight.
Concealed fixings.
Slip resistant.
30-year warranty.
60-year design life.

General information

Color	Brown Grey
Finish	Powder-coated Guidance for specification option: Qualicoat Class 2 powder.
Material	Aluminium Guidance for specification option: Grade 6063-T6.
Shape	Rectangle
Length	4200 mm
Width	144 mm
Height	30 mm
Warranty description	30 year

Uniclass	Ss_30_20_30_25 Decking systemsPrimary
CAWS	Q55/110 Deck

Specification data - Decking systems

Deck boards	-
Material	Aluminium grade 6063-T6.
Fasteners	Self-drilling screws. 5.5. x 25 mm 4000 series stainless steel. 8 mm hex head Guidance for specification option: Mounted directly onto steel joists with bi-metal self-drilling carbon/stainless steel screw Mounted onto aluminium SupportRail™ joist or aluminium bearers with standard self-drilling stainless steel screw.
System accessories	Guidance for specification option: Contact manufacturer for details.

Colour	Anthracite grey. Guidance for specification option: RAL 7016. Dusty grey. Guidance for specification option: RAL 7037. Quartz grey. Guidance for specification option: RAL 7039. Window grey. Guidance for specification option: RAL 7040. Sepia brown. Guidance for specification option: RAL 8014. Grey brown. Guidance for specification option: RAL 8019. Show more
Deflection	To EN 310, 5.00 mm. Guidance for specification option: 100 kg at 600 mm span (to BS EN 310): <1 mm. 2 kN at 600 mm span (to BS EN 310): <2 mm.
Slip resistance	To BS7976 -2, 41 PTV (wet); 63 PTV (dry). Manufacturer guidance Pendulum Slip Test.
FireRating	To BS EN 13501–1, A2-s1, d0.
Weight	13.86 kg/m².
Wear resistance	To TM391:2016, 'very slight' (at 50 K); 'slight' (at 100 K). Manufacturer guidance Accelarated wear test. Biomechanical.
Adhesion	To ISO-0 ASTM-5B, no separation. Manufacturer guidance Coating adhesion.
UV stabilization	To ISO2810, Class 2.
Board size	144 x 30 mm. Guidance for specification option: 150 mm module.
Board length	4.2 m. Guidance for specification option: Standard. Custom. Guidance for specification option: Cut to length (subject to conditions, 4.2 m maximum).
Surface finish	Polyester powder coating. Guidance for specification option: Qualicoat Class 2 powder.
Depth	30 mm.
Coating application	Up to 120 μm (maximum).

Sustainability data

Contains Red List materials	No
Material	Aluminium Guidance for specification option: Grade 6063-T6.
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 %
