Vista Aluminium Decking System - Aluminium non-combustible decking board

Name: Vista Aluminium Decking System - Aluminium non-combustible decking board
Brand: MyDek Ltd
SKU: h1EhXF34gUVfLkZfdAvXBn

Verified by manufacturer 2 months ago

MyDek Ltd

Third party certifications:

BS EN 13501-1
Certificate type

Durable, non-combustible, aluminium decking.

Jump to:

BOS

+44 3300 94 94 11 Website

Application

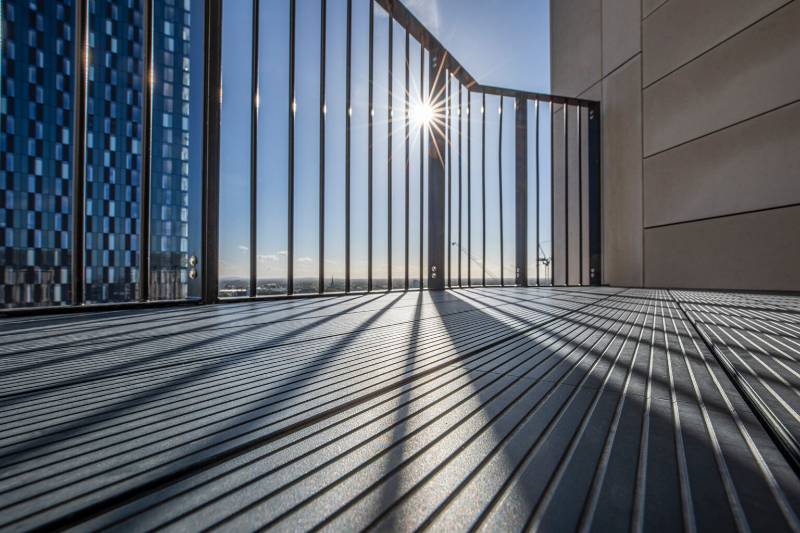

For use on balconies, walkways, roof terraces, leisure areas, patios and poolside environments.

Description

A durable, non-combustible, aluminium decking system designed to enhance balconies and terraces, available in a range of standard finishes. Available with as a complete decking system with accessories Products to facilitate fast and accurate installation, MyDek offers speed, accuracy and choice in decking solutions.

Features and benefits:

Fully certified.
Non-combustible.
Lightweight.
Concealed fixings.
Slip resistant.
30-year warranty.
60-year design life.

General information

Color	Brown Grey
Finish	Powder-coated Guidance for specification option: Min 60 μm. Qualicoat Class 2 powder.
Material	Aluminium Guidance for specification option: Grade 6063-T6.
Shape	Rectangle
Length	4200 mm
Width	144 mm
Height	20 mm
Warranty description	30 year

Uniclass	Ss_30_20_30_25 Decking systemsPrimary Pr_25_71_51_04 Aluminium profiled sheet decking
CAWS	Q55/110 Deck

Specification data - Decking systems

Deck boards	-
Material	Aluminium grade 6063-T6.
Fasteners	Basic clip and associated self drilling screw. Guidance for specification option: CB01 Basic Clip (screw-fixed). Material: Black coated stainless steel.
System accessories	None. Board. Guidance for specification option: Aluminium grade LM24.

Coefficient of thermal expansion	0.024 mm/m/°C.

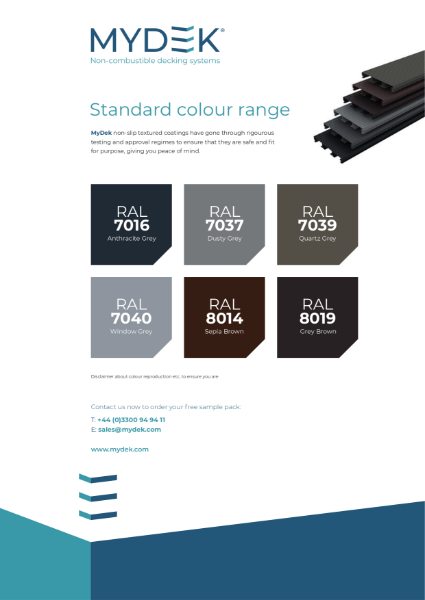

Colour	Anthracite grey. Guidance for specification option: RAL 7016. Dusty grey. Guidance for specification option: RAL 7037. Quartz grey. Guidance for specification option: RAL 7039. Window grey. Guidance for specification option: RAL 7040. Sepia brown. Guidance for specification option: RAL 8014. Grey brown. Guidance for specification option: RAL 8019. Show more
Deflection	To EN 310, 1.05 mm. Guidance for specification option: 80 kg at 500 mm span (to BS EN 310): 1.1 mm. 2 kN at 500 mm span (to BS EN 310): 2.9 mm.
Expansion capacity	1 mm per linear metre.

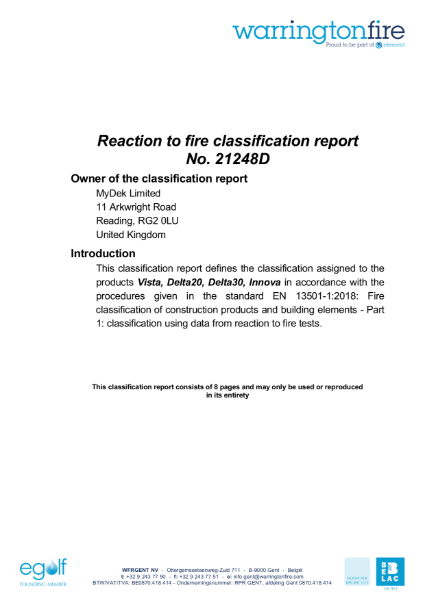

FireRating	To EN 13501–1, A2-s1,d0.
Slip resistance value	To BS 7976-2, 39.5 PTV (wet); 59 PTV (dry). Manufacturer guidance Pendulum Slip Test.
Weight	11.22 kg/sqm.
Wear resistance	To TM391:2016, 'very slight' (at 50 K); 'slight' (at 100 K). Manufacturer guidance Accelarated wear test. Biomechanical.
Adhesion	To ISO-0 ASTM-5B, no separation.
UV stabilization	To ISO2810, Class 2.
Board size	144 x 20 mm.
Board length	4.2 m. Guidance for specification option: Standard. Custom. Guidance for specification option: Cut to length (subject to conditions, 4.2 m maximum).
Surface finish	Polyester powder coating. Guidance for specification option: Qualicoat Class 2 powder.
Depth	20 mm.
Coating application	up to 120 μm (maximum).

Sustainability data

Contains Red List materials	No
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	90 kg CO₂ eq/m² Self declared
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 %
