Delta20 Aluminium Decking System - Aluminum Non-combustible Decking Board
Verified by manufacturer 1 month ago
BS EN 13501-1
Certificate type
Durable, non-combustible, two-part aluminium decking.
Application
For use on balconies, walkways and roof terraces.
Description

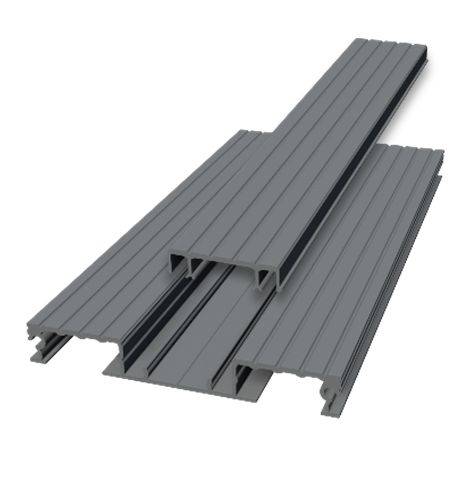

A durable, non-combustible, two-part aluminium decking system designed to enhance balconies and terraces, available in a range of standard finishes. Available with as a complete decking system with accessories to facilitate fast and accurate installation, MyDek offers speed, accuracy and choice in decking solutions. Fire Class A2-s1, d0 and A2fl.
Features and benefits:
- Fully certified.
- Non-combustible.
- Lightweight.
- Concealed fixings.
- Slip resistant.
- 30-year warranty.
- 60-year design life.
General information
Color | Grey Brown |
Finish | Powder-coated Guidance for specification option: Qualicoat Class 2 powder. |
Material | Aluminium Guidance for specification option: Grade 6063-T6. |
Shape | Rectangle |
Length | 4200 mm |
Width | 144 mm |
Height | 20 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | Q55/110 Deck |
Specification data - Decking systems
Deck boards | |
Material | Aluminium grade 6063-T6. |
Fasteners | Self drilling screws. 5.5. x 25 mm 4000 series stainless steel. 8 mm hex head.Guidance for specification option: Installation:
|
Board accessories | Edge trims. |
System accessories | Guidance for specification option: Contact manufacturer for details. |
Colour | Dusty grey. Guidance for specification option: RAL 7037. Quartz grey. Guidance for specification option: RAL 7039. Window grey. Guidance for specification option: RAL 7040. Sepia brown. Guidance for specification option: RAL 8014. Grey brown. Guidance for specification option: RAL 8019. |
FireRating | To BS EN 13501–1, A2-s1, d0. |
Deflection | To EN 310, 1.59 mm. Guidance for specification option:
|
Slip resistance value | To BS7976 -2, 41 PTV (wet); 63 PTV (dry). Guidance for specification option: To BS 7976-2 Pendulum Slip Test. |
Weight | 12.47 kg/m². |
Wear resistance | To TM391:2016, 'very slight' (at 50 K); 'slight' (at 100 K). Manufacturer guidanceAccelarated wear test. Biomechanical. |
Adhesion | To ISO-0 ASTM-5B, no separation. Manufacturer guidanceCoating adhesion. |
UV stabilization | To ISO2810, Class 2. |
Board size | 144 x 20 mm. Guidance for specification option: 150 mm module. |
Board length | 4.2 m. Guidance for specification option: Standard. Custom. Guidance for specification option: Cut to length (subject to conditions, 4.2 m maximum). |
Surface finish | Polyester powder coating. Guidance for specification option: Qualicoat Class 2 powder. |
Depth | 20 mm. |
Coating application | Up to 120 μm (maximum). |
Sustainability data
Contains Red List materials | No |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 80.0 kg CO₂ eq/m² Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
