Delta Trela Plus - Damp-proofing/Roofing membrane
Verified by manufacturer 5 months ago
Offers protection from corrosion and moisture. Breathable, elastic, and sound-absorbing membrane
Application
Provides a permanent air gap under the cladding, preventing moisture accumulation.
Description
Offers protection from corrosion and moisture. Breathable, elastic, and sound-absorbing.

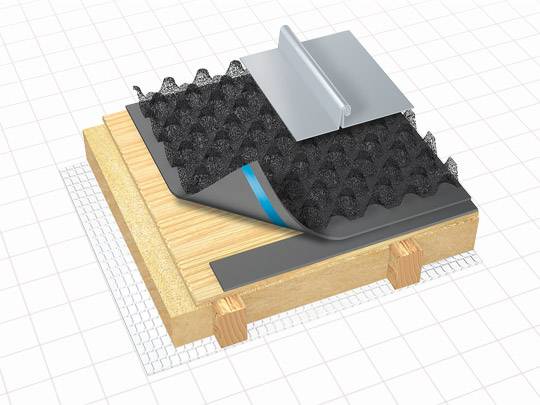

Delta Trela and Trela Plus consist of a 3-ply spun-bonded polypropylene breather underlay base sheet laminated to a dimple-textured random-fibre spacer mat to provide a permanent air gap under the cladding, preventing moisture accumulation. Delta Trela Plus includes an integrated self-adhesive edge.
Features and benefits:
- Dimple height (approximately): 8 mm.
- Roll properties: Width: 1.4 m.
General information
Color | Black |
Material | Polypropylene |
Length | 30000 mm |
Width | 1500 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | H71/645 Sheet underlay H72/110 Aluminium sheet fully supported roof covering H73/645 Sheet underlay H74/645 Sheet underlay H75/645 Sheet underlay |
Specification data - Vapour-permeable sheets
Material | Polypropylene. |
Form | Three ply. |
Weight (minimum) | 17 kg.Guidance for specification option: Roll properties. |
Fire resistance | To DIN 4102, class B2. |
Dimensions | 30 x 1.5 m. Guidance for specification option: Roll properties. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 5 |
 Vectorworks | - | 1 |
 Revit | Revit 2016 | 7 |
 AECOsim | - | 1 |
 ARCHICAD | - | 1 |
Literature

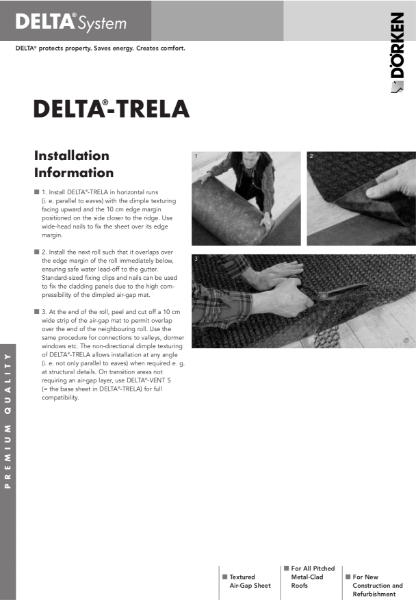

Delta-Trela Installation Information
