Delta MS 500 - Waterproofing Membrane - HDPE Type C Cavity Drainage
Verified by manufacturer 3 months ago
BBA Agrément Certificate
Certificate type
Delta MS 500 is a high-density polyethylene (HDPE), Type C, Cavity Drainage Studded Membrane.
Application
- Suitable for use on walls, floors, vaults and tunnels as a waterproof system.
- Can also be used externally for waterproof protection of sub-ground structures.
Description

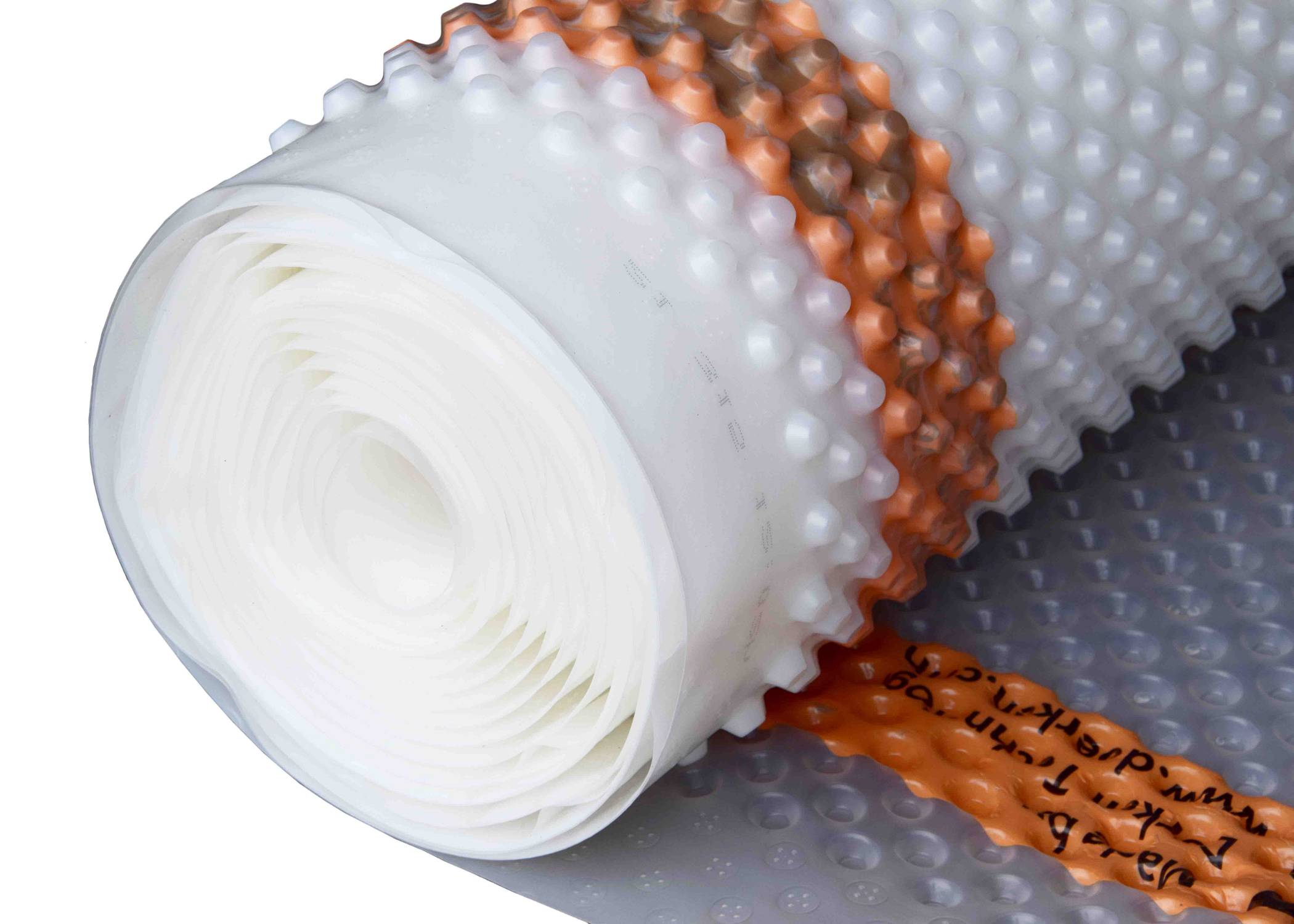

A high-density polyethylene (HDPE) studded membrane.
Provides excellent chemical resistance, is completely rot-proof and prevents root penetration.
Features and benefits:
- Joint lap: 70 mm plain edge to overlap three studs is recommended; all laps sealed with joint sealant.
General information
Color | Clear |
Material | High density polyethylene (HDPE) Guidance for specification option: (HDPE) |
Shape | Rectangle Guidance for specification option: Supplied in rolls. |
Length | 20000 mm |
Width | 2000 mm 2400 mm |
Height | 8 mm Guidance for specification option: Stud height. Sheet thickness is 0.5 mm. |
Warranty description | 30 year |
Uniclass | |
CAWS | J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane |
Specification data - High-density polyethylene (PE-HD) studded sheets
Third-party certification | BBA Agrément Certificate number 00/3742. |
Stud height | 8 mm. |
Sheet thickness | 0.5 mm. |
Weight (minimum) | Manufacturer's standard. |
Colour | Clear. |
Performance characteristics | |
Flow rate | 2.25 L/s/m.Guidance for specification option: Drainage capacity. |
Fire performance | Reaction to fire, to EN 13501-1: Class E. |
Joint sealant | Delta-Tape to flanged joints. Guidance for specification option: 28 mm wide x 2 mm thick, black butyl rubber tape for sealing joints in membrane. Delta-Rope to studded joints. Guidance for specification option: 10 mm-diameter black butyl rubber beading for sealing the membrane around pipes and openings, joining floor and wall membranes, and to form a gasket between the plug and membrane. |
Accessories | Guidance for specification option: A range of accessories and associated products is available; consult manufacturer for details and insert requirements or omit. |
Typical compressive strength | >250 kN/m². |
Roll size | 20 x 2 m. Guidance for specification option: DMS 005. 20 x 2.4 m. Guidance for specification option: DMS 007. |
Service temperature range | -30°C to +80°C. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Vectorworks | - | 1 |
 Revit | Revit 2016 | 9 |
 AECOsim | - | 1 |
 ARCHICAD | - | 1 |
 IFC | - | 9 |
Third party certifications
BBA Agrément Certificate
3742ps2i5 - BBA Certificate Delta MS20
