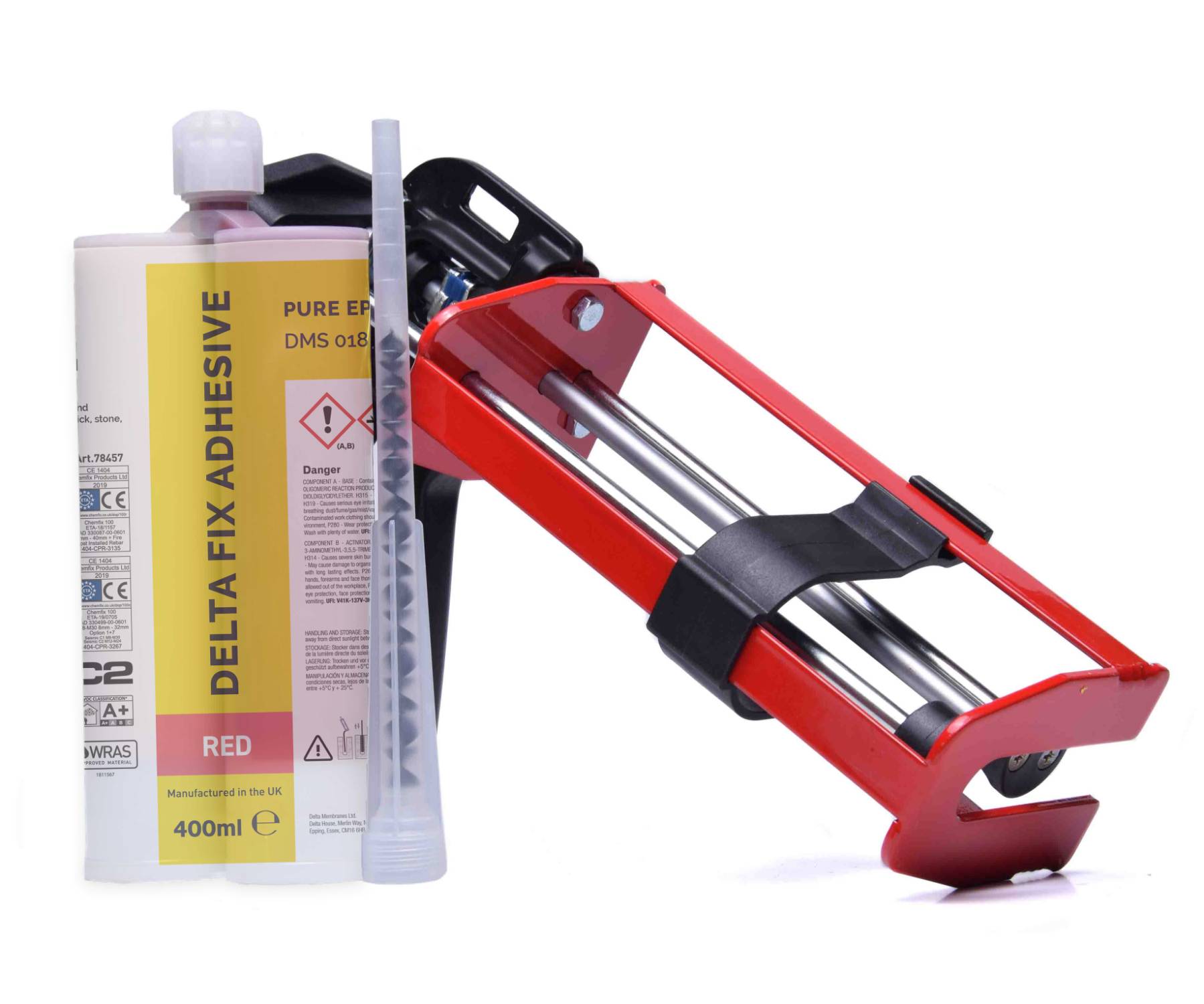

Delta Fix Adhesive - Epoxy Resin Anchor System
Verified by manufacturer 3 days ago
Epoxy resin anchor system for fixings into masonry and concrete structures.
Application
Suitable for fixing bolts and penetrations through waterproof coatings to provide a waterproof seal.
Description
Delta Fix Adhesive is formulated as a two-component anchoring injection system in a 1:1 ratio for bonding and anchoring most building materials e.g. brick, stone, steel, mortar and timber.
Delta Fix Adhesive formulation is derived from pure epoxy with very high bond strength is used for high performance structural applications where loading is critical.
Suitable for fixing bolts and penetrations through waterproof coatings to provide a waterproof seal.
Features and benefits:
- Ideal for bonding building materials
- Ideal for anchoring building materials
- Suitable for high loads featuring large diameters and deep embedments
- High durability, resistance to chemicals
- Can be used for diamond drilled holes
- Solvent free resin
- Fixings in concrete, wood, or other high strength materials
Mechanical properties:
- Compressive Strength 88 N/mm² (EN ISO 604).
General information
Color | Red Grey |
Material | Resin Guidance for specification option: Epoxy resin. |
Shape | Formless |
Uniclass | |
CAWS | Z20/390 Adhesives Z20/700 Applying adhesives Z20/700 Applying adhesives |
Specification data - Epoxy resin-based adhesives
Form | Two-component. |
Carrier | Solvent-free. |
Open time (minimum) | 15 minutes.Guidance for specification option: In cartridges Delta Fix Adhesive has no waste apart from the mixed product in the nozzle, which will stay workable for a minimum of 15 mins. In pot form the mixed product will remain workable for approximately 15 mins. This can vary depending upon the working temperature. |
Colour | Red.Grey.Manufacturer guidance
|
Execution | Applying adhesives generally. |
Density | 43 kg/m². |
Typical compressive strength | To EN ISO 604, 88 N/mm². |
Cure time | 7 days. |
Working temperature | 5ºC to 25ºC. |
Sustainability data
Contains Red List materials | No |
Material | Resin Guidance for specification option: Epoxy resin. |
Recyclability | No |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
Delta Fix Adhesive Product Data Sheet
Similar products from Delta Membrane Systems Ltd

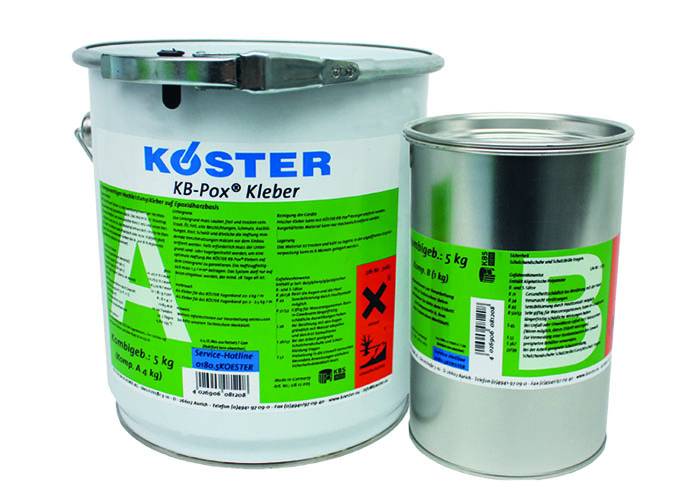

Koster KB-Pox Adhesive
