Description

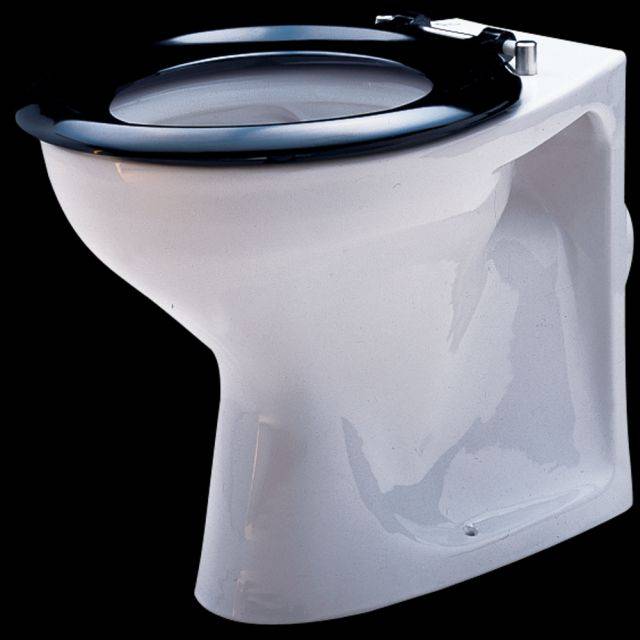

A back to wall P trap washdown WC suite with open flushing rim designed for use in hospitals and public areas.

General information
Uniclass 2015
WC suites (Pr_40_20_93_97)Primary
Specification data - WC suites
Product Reference

Delphic back to wall WC suite

Pan -
Type

WC1742WH

Delphic BTW.

Colour

White WH

Seat and cover

ST6881BE

Blue.

ST6881WH

White.

ST6882BK

Black.

ST6882WH

White.

Cistern

CX9561XX

Concealed cistern single, BSIO (bottom water supply).

CX9560XX

Concealed cistern, SSIO (side water supply).

Flush pipe

CF6220WH

Accessories

None

CF9104XX

Inlet restriction washer.

Standard product features

Pan material:

  • Vitreous china.
  • Colour: White.

Pan connector:

Standard: To BS EN 5627.

Cistern material:

Plastics.

Flushing arrangement:

Valveless cistern siphon.

Operation control:

High level lever handle, chrome plated.

Water supply connection:

  • Bottom for BSIO cistern.
  • Side for SSIO cistern.

Flush volume:

  • 6 L.

Flush pipe:

  • Type: Concealed.
  • Size: 560 x 405 mm.
  • Material: Plastics.
