DekRock Heavy / Gravel Range

Verified by manufacturer 5 days ago

DEKS INDUSTRIES EUROPE LIMITED

A Heavy/ Gravel Range drainage system offers a robust and efficient solution for managing surface water in areas subjected to substantial loads and requiring high permeability.

Jump to:
Request BIM
01275 858866 Website

Application

DekRock Heavy:

Permeable and landscaping ground stabilisation – Drives, Patios, Gardens, Events, Drives, Parks and Leisure Areas.

DekRock Gravel:

Permeable Ground Stabilisation, Pathways, Drives, Patios, Gardens, Events, Parks and Leisure Areas.

Description

The DekRock Heavy/Gravel Range drainage system offers a robust and efficient solution for managing surface water in areas subjected to substantial loads and requiring high permeability. The open structure of the gravel allows for rapid infiltration of rainwater, minimising standing water and reducing the risk of flooding or ice formation. This effective drainage capacity helps to maintain a safe and usable surface, even during periods of heavy rainfall.

DekRock Heavy:

  • 35 tonne axle load capability.
  • Creates a dynamic surface that will not crack pothole and self-destruct.
  • Solves problematic drainage issues through permeability.
  • Onsite SuDS compliant.
  • Durable, strong and long lasting.
  • Strong interlocking design fast installation time.
  • DekRock reduces the crabon footprint of a project, and it is completely recyclable.

DekRock Gravel:

  • 20 tonne axle weight
  • For areas where containment is the key, permanent non migrating features, creative designs and options too.
  • SuDS compliant, filtered draining lose the mud not the gravel.
  • NBS Specification support in accordance with Q23 for gravel surfacing or Q30 for seeding/turfing.
  • Durable, Lightweight .95 Mtr2 square unit delivers faster install time.

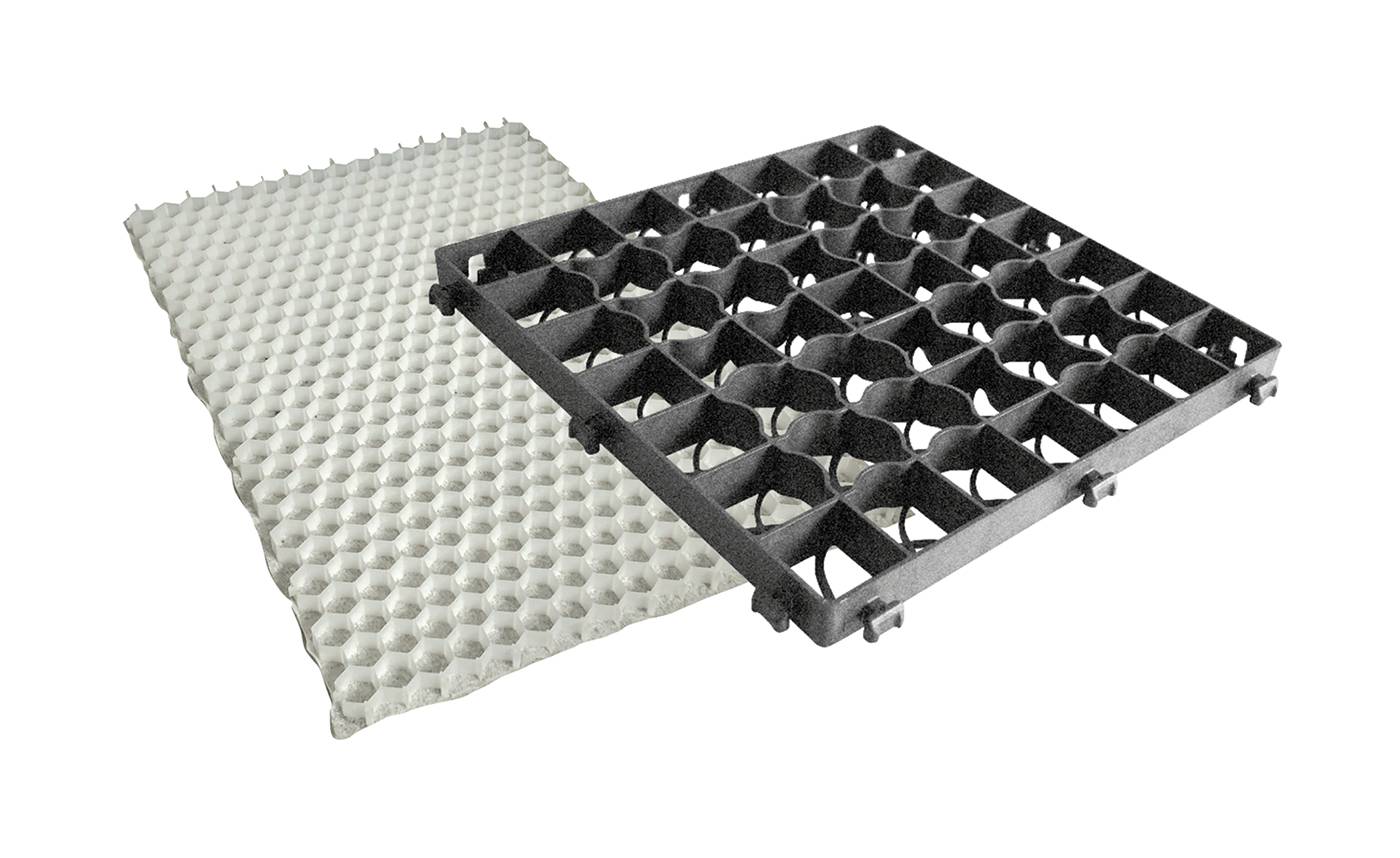

  • Affixed Geotextile Backing reduces extra costs and laying time.
  • The lightweight interlocking design stops separation and creates a seamless professional finish.
  • Recyclability improves carbon footprint.
  • No need to buy and install a geotextile separately reduces waste and overlaps will not lift move or blow away during installation.

Can be used with grass or gravel surfacing.

General information

Color

Black

Green

White

Finish

Smooth

Material

Polypropylene

Shape

Square

Length

493 mm

1123 mm

Width

493 mm

795 mm

Height

30 mm

39 mm

Warranty description

One year

Uniclass

Pr_25_93_60_61 Plastics cellular paversPrimary

CAWS

Q25/185 Gravel-filled plastics paving system

Q25/180 Plastics grass reinforcing paving system

Q25/350 Plastics pavers

Q25/46 Plastics grass reinforcing paving systems

Q25/62 Plastics pavers

SKU Code

DCD

Specification data - Plastics cellular pavers

Classification data

Physical properties

-

Material

Recyclable polypropylene.

Colour

Black.

Guidance for specification option:

DekRock Heavy

Green.

Guidance for specification option:

DekRock Heavy

White.

Guidance for specification option:

DekRock Gravel

Top surface finish

Plain.

Profile

-

Paver type

Regular plan form, square.

Interlocking features

Required.

Guidance for specification option:

  • DekRock Heavy: Tongue and groove
  • DekRock Gravel: M/F peg

Dimensions

-

Plan size

493 x 493 mm.

Guidance for specification option:

DekRock Heavy

1123 x 795 mm.

Guidance for specification option:

DekRock Gravel

Thickness (minimum)

30 mm.

Guidance for specification option:

DekRock Gravel

39 mm.

Guidance for specification option:

DekRock Heavy

Load-carrying capacity (minimum)

35 tonne axle load.

Guidance for specification option:

DekRock Heavy

20 tonne axle load,

Guidance for specification option:

DekRock Gravel

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Manufacturing plant location

Material

Polypropylene

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

Ten year
