Deko MV
Verified by manufacturer 8 months ago
MV41
MV41

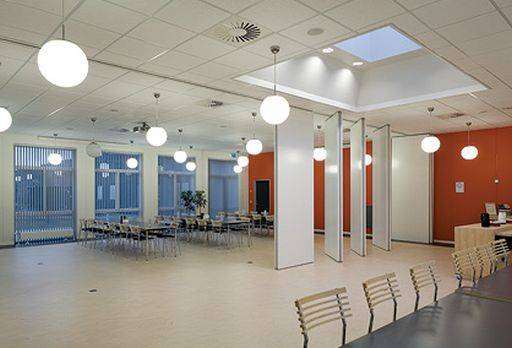

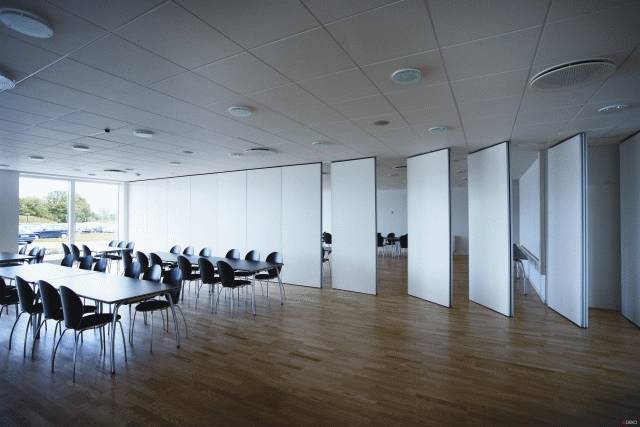

Deko MV Flexible Panel Wall.
Application
Adaptable and suited to fit individual projects.
Description
Optimum solution when high sound and fire classifications are required.
Features and benefits:
- Several stacking solutions.
- Surfaces are easy to clean.
- Individual surface finishes.
- Fire classified up to EI 60.
- Top hung.
- Modules are operated individually, offering a large number of stacking solutions.
- Size and number of modules are adapted to suit individual projects.
General information
Color | White Grey |
Finish | Laminated Guidance for specification option: Insert type. Veneered |
Material | Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Sliding stacking panel partitions
Classification data | |
Operation | Manual. |
Dimensions (nominal) | |
Panel (average) | |
Thickness | 85 mm. |
Panels | |
Finish as delivered | Laminate. Guidance for specification option: Insert type. Prefinished veneer. Guidance for specification option: Insert species and cut. Standard Deko Melamine White. Standard Deko Melamine Grey. |
Fixing | Head channel fixed to structure. Head channel fixed through suspended ceiling to structure. |
Sound insulation | 41 dB (R'w). |
Fire rating for panels | None. |
Finish: | Satin anodized. White powder coated. RAL. Guidance for specification option: Insert requirement. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Glass |
Recyclability | All aluminium & glass can be recycled |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
Literature
Deko MV - Panel Wall with Discrete Stacking Solutions
