Deko FV
Verified by manufacturer 2 months ago
FV 41
FV 41

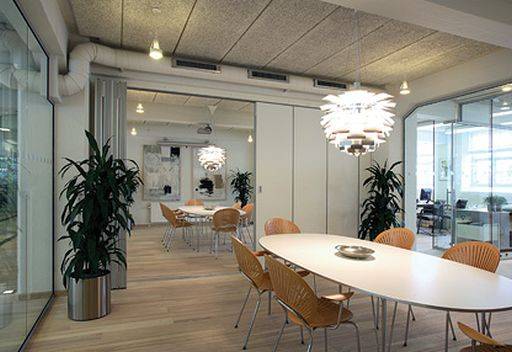

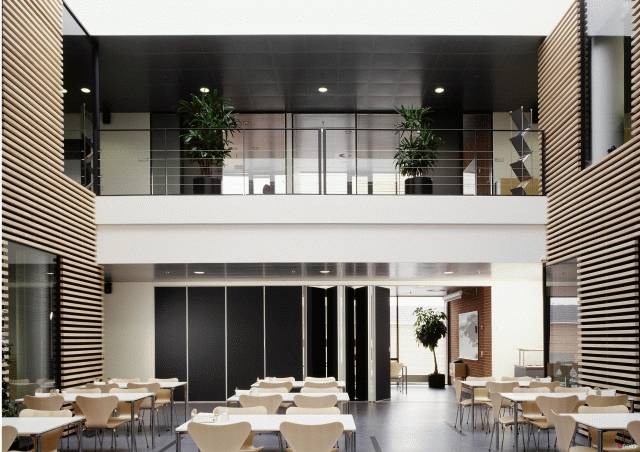

Deko FV sound insulated partition – designed to divide areas like meeting and conference rooms, offices, canteens, and class rooms, or to divide large open spaces in public buildings.
Application
Suitable use for schools, public building, meeting rooms, conference rooms, offices, and canteens.
Description
Suitable when a flexible working space is paramount.
Features and benefits:
- Modules available top hung or with a floor track.
- Individual surface finishes available.
- Surfaces easy to clean.
- Easy to operate.
- Built-in door module.
- Sound reduction: 52 dB (maximum) is available, which makes Deko FV particularly suitable for meeting and conference rooms as well as schools and public buildings.
- Size and number of modules are calculated according to individual requirements.
General information
Color | White |
Finish | Satin Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Sliding stacking panel partitions
Dimensions (nominal) | |
Panel (average) | |
Width | Guidance for specification option: 400–1000 mm. |
Height | Guidance for specification option: 6000 mm maximum. |
Thickness | 80 mm. |
Track system | |
Head track | Single point suspension, single parking.Single point suspension, bi parting (split parking). |
Park position | Centre stacking single leaf.Guidance for specification option: Single direction panels. Centre stacking double leaf.Guidance for specification option: Bi-parting. Side stacking single leaf.Guidance for specification option: Single direction panels. Side stacking double leaf.Guidance for specification option: Bi-parting. |
Panels | |
Finish as delivered | Laminate.Guidance for specification option: Insert type. Prefinished, veneer.Guidance for specification option: Insert species and cut. Standard Deko Melamine, White.Standard Deko Melamine, Grey. |
Fixing | Floor track. Top hung. |
Base | 93 mm aluminium floor guide rail. Guidance for specification option: Floor track. |
Head | Head channel fixed to structure. Guidance for specification option: Top hung. Adjustable head channel fixed to structure or ceiling. Guidance for specification option: Floor track. |
Wall start | Adjustable start profile. |
Sound insulation | 41 dB (R'w). |
Frame finish | Satin anodized. White powder-coated. RAL. Guidance for specification option: Insert requirement. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | Aluminium Can Be Recycled |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
Literature
Deko FV - Folding Partition
