Deko Doors Double - DG Glazed - GD

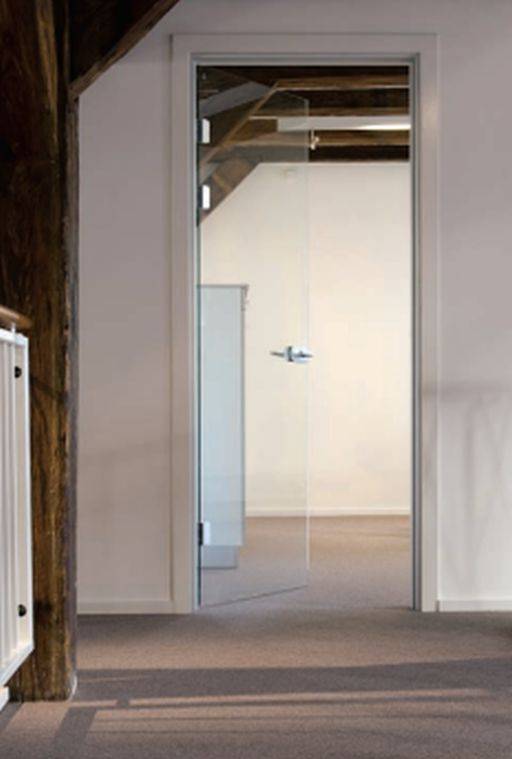

Double glazed doors - available and supplied using toughened glass which closes tight to the rubber profiles in the frame, providing a soundproof connection.
DEKO have developed an aluminium snap-on architrave profile. This is clipped onto the frame, providing an attractive joint detail with no visible fixings.
Alternatively, a DEKO Door can be finished with conventional timber architraves or joint filler can be used between the partition and door frame.
Double glazed doors - available and supplied using toughened glass which closes tight to the rubber profiles in the frame, providing a soundproof connection.
Features and benefits:
Color | White |
Finish | Glazed |
Material | Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/460 Frameless glass doors |
Format | Double leaf, single action. |
Leaf | |
Material | Toughened glass. |
Hardware | |
Door rails and patch fittings | |
Type | Hinged. |
Material and finish | Polished stainless steel. |
FireRating | Up to BD 60. |
Sound insulation | 26—35 dB. |
Third-party certification | Danish Indoor Climate Label. |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | All Aluminium & Glass Can Be Recycled |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
Revit 2017 | 1 | |
- | 1 |
