DekDrain Catch Pit Range

Name: DekDrain Catch Pit Range
Brand: DEKS INDUSTRIES EUROPE LIMITED
SKU: gh7QZ9fGBVF5e9PDXpHWJw

Verified by manufacturer 5 days ago

Black catch-pit plus with B125 cast iron grating.

Jump to:

Application

It is used as an alternative to traditional concrete catch-pit for the collection of surface water.

DekDrain catch pit range includes options for catch pit riser and siphon plates and catch pits with covers/ gratings with a handle.

Features and benefits:

Made of PP (polypropylene).
It is used as an alternative to a traditional concrete catch pit.
Light weight for easy transport, positioning and installation, even by a single person.
High resistance, thanks to the reinforcements and ribs on the sides.
Pipes of every size can easily fit thanks to the special pre-cut concentric shaped holes on the sides.
Compatible with relative PP catch pit cover.

Uniclass	Pr_65_52_24_31 Floor gulliesPrimary
CAWS	R12/315 One piece gullies and covers R12/50 One piece gullies and covers

SKU Code	DCD

Classification data
Properties	-
Body	-

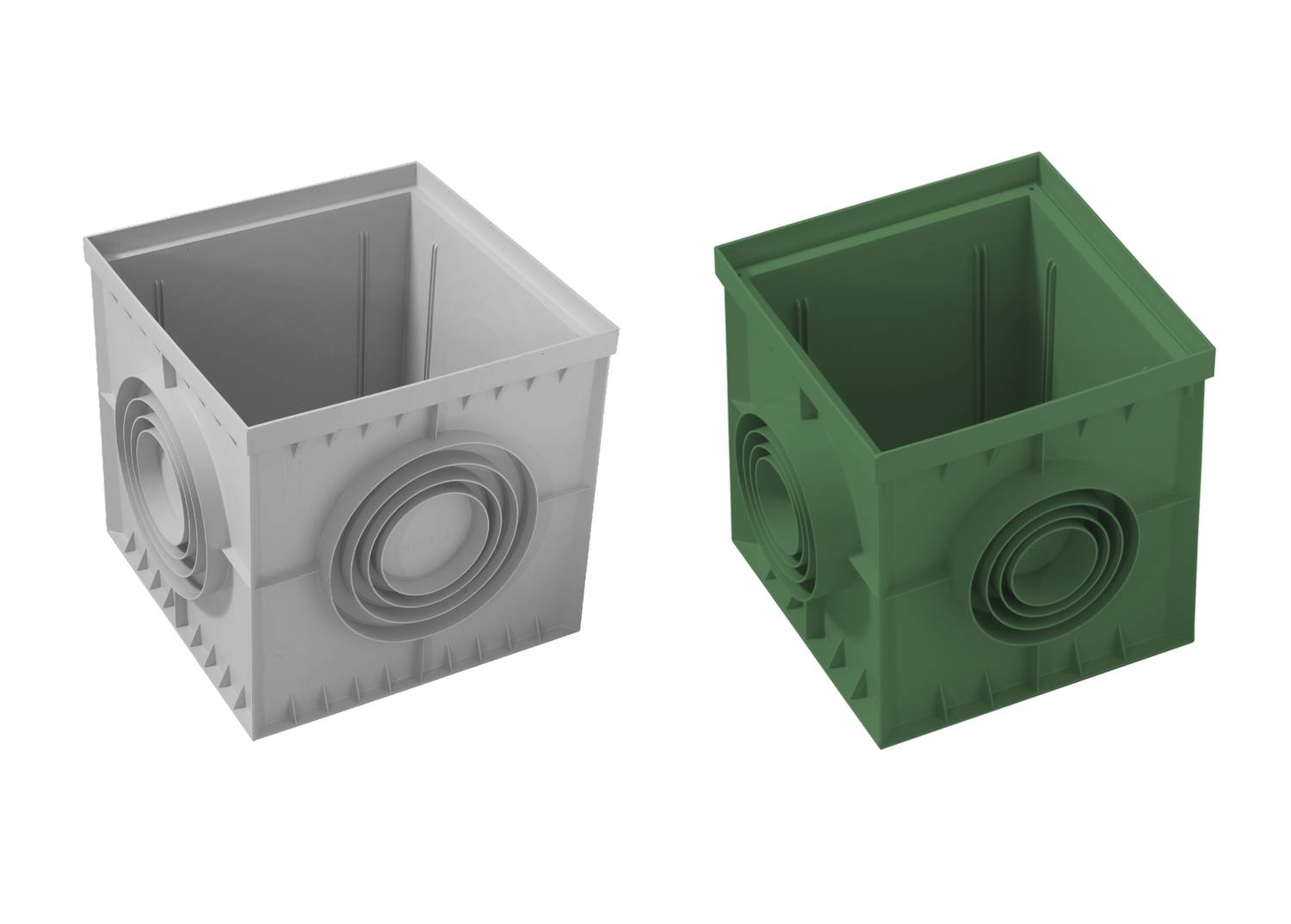

Configuration	DekDrain Catch pit, 300 x 300 mm, green. DekDrain Catch pit, 300 x 300 mm, grey. Manufacturer guidance Diameter: 75–140 mm.
Material	Polypropylene.
Cover or grating	-

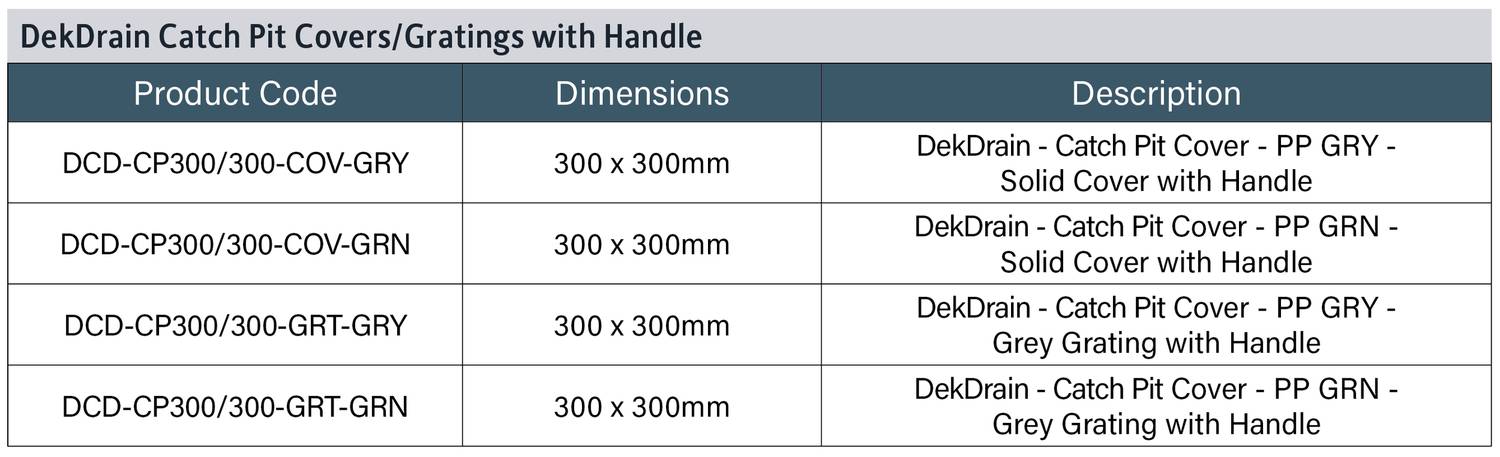

Cover or grating type	Green solid catch pit cover with handle, 300 x 300 mm. Grey solid catch pit cover with handle, 300 x 300 mm. Green catch pit grating with handle, 300 x 300 mm. Grey catch pit grating with handle, 300 x 300 mm.
Material	Polypropylene.
Outlet	Horizontal.
Load class (minimum)	B 125.
Integral accessories	Catch pit 100 mm riser, 300 x 300 mm, grey polypropylene. Catch pit siphon plates, 300 x 300 mm, grey polypropylene.

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Italy
Manufacturing plant location	Italy
Material	Polypropylene
Expected Life	Ten year
