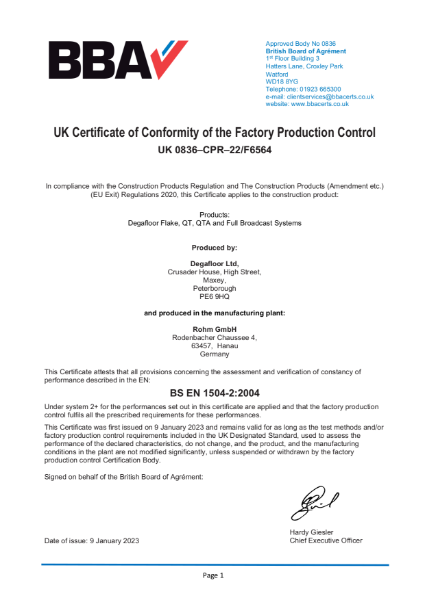

UK Conformity Assessed (UKCA)
Certificate type
BBA Agrément Certificate
Certificate type

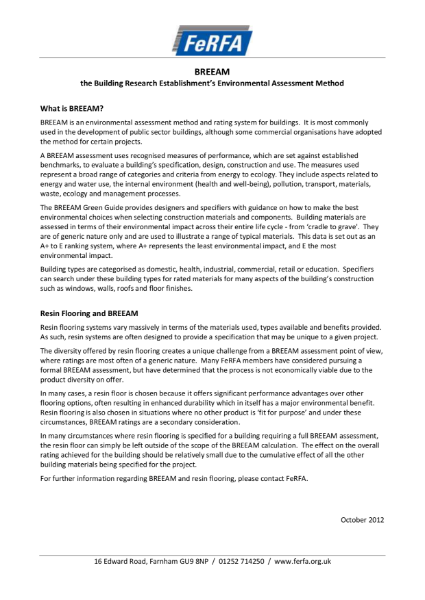

BREEAM - Certification
Certificate type

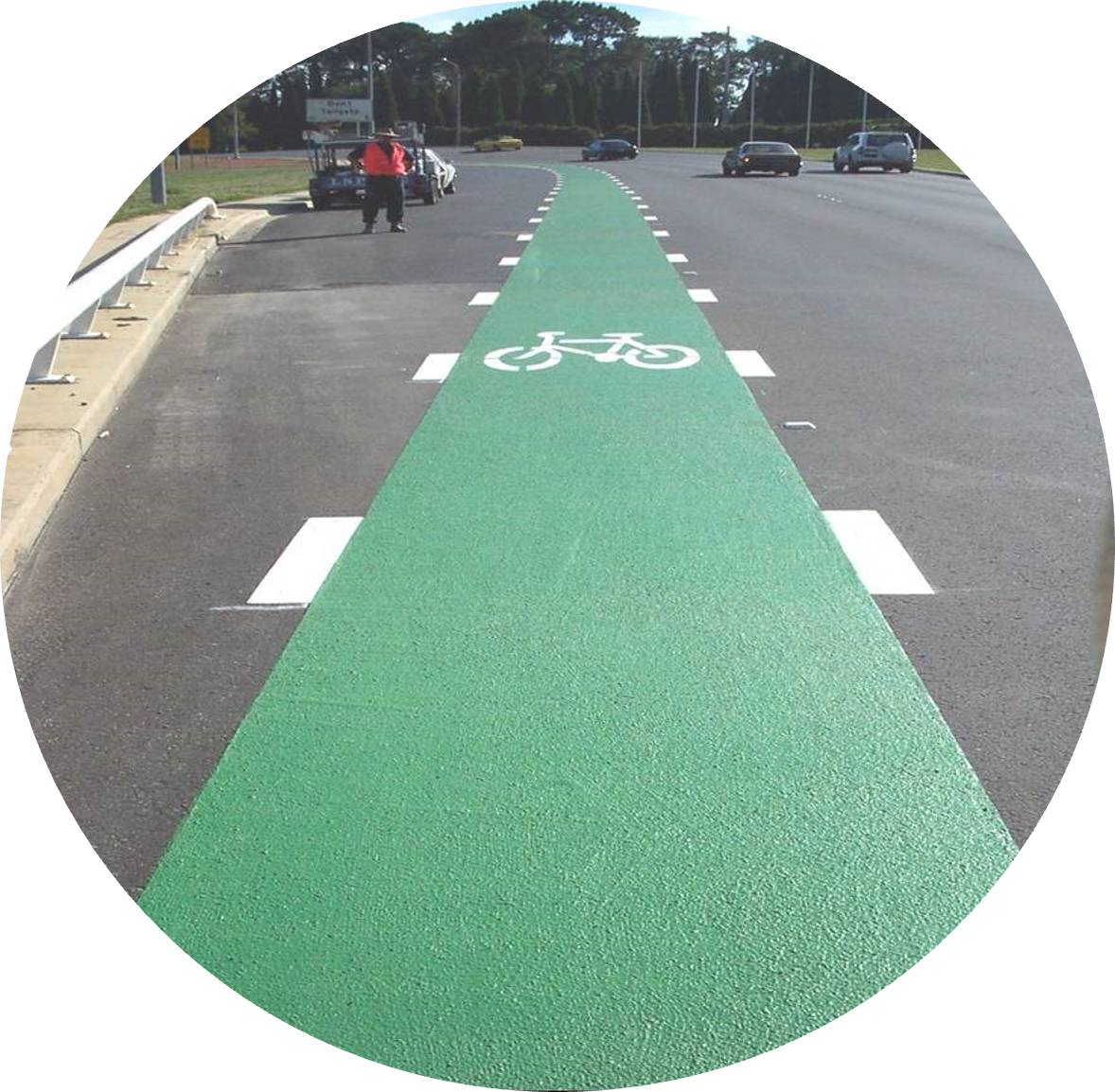

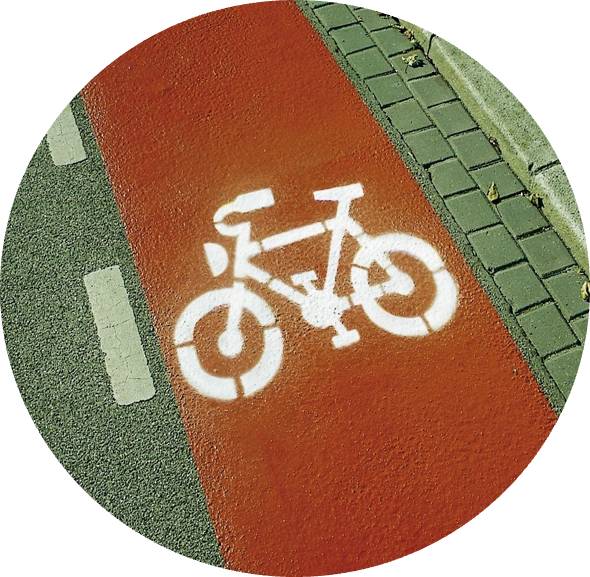

Anti-skid cycle route system engineered using fast-curing MMA resin technology, delivering high slip resistance with a choice of colours to suit route demarcation and design requirements.

Jump to:

BOS

+44 (0)1778 342545 Website

Application

Suitable for external use on both concrete and asphalt substrates.

Applications include:

Cycle lanes.
Pedestrian routes.
Bus Lanes.
Pedestrian crossings.
Highway area marking.
Anti-skid surfacing.
Use with road salts.

Description

Provides slip and skid resistance for both pedestrian and vehicular surfaces.

Manufactured using high-performance methyl methacrylate (MMA) resin, the system delivers exceptional durability and flexibility, designed to withstand demanding operating environments.

Key features and benefits:

Rapid cure time – Fully cured in just 20 minutes, allowing immediate return to full traffic with no ongoing annual repair requirements.
Excellent adhesion to asphalt – Bonds directly without the need for priming, requiring only minimal surface preparation.
Impervious to water ingress – Prevents freeze/thaw damage and associated failure.
Resistant to chemicals – Suitable for areas exposed to oils, fuels and other contaminants.
Cold-applied installation – Eliminates the health and safety risks linked to hot works and reduces environmental impact.
Thermal and UV stability – Remains flexible in both high and low temperatures and resists UV degradation throughout seasonal changes.
Quality assured manufacturing – Produced under ISO 9001:2015, ISO 14001:2015 and ISO 18001:2007 certified Quality and Management Systems.

General information

Color	Black Guidance for specification option: Stock colours. Blue Guidance for specification option: Made to order colours. Green Guidance for specification option: Made to order colours. Grey Guidance for specification option: Stock colours. Purple Guidance for specification option: Made to order colours. Red Guidance for specification option: Stock colours. White Guidance for specification option: Stock colours. Yellow Guidance for specification option: Made to order colours. Show more Manufacturer guidance Stock colours include traffic grey, mid grey and traffic red. Made to order colours also include traffic purple, traffic blue, traffic green and traffic yellow.
Material	Methyl methacrylate Guidance for specification option: Methyl methacrylate resin. Resin
Shape	Formless
Warranty description	Five year Guidance for specification option: Pothole repair product called Degafill, which is designed for repairs within asphalt.

Uniclass	Ss_30_42_54_75 Resin flooring systemsPrimary
CAWS	M12/110 Resin flooring M12/10 Resin flooring

Product range	Highways and car park marking solutions

Specification data - Resin flooring systems

Classification data
Substrate	-
Testing	Surface hardness of substrate(s).
Preparation	Preparation of existing substrates. Manufacturer guidance All substrates must be clean, dry and free from contamination. Concrete substrates must be mechanical prepared by means of shotblasting, planning or diamond grinding and will require priming. Asphalt substrates may not require priming, a bond test will confirm.
Primer	Resin coating primers.
Resin flooring	Resin floor coatings Floor seals
Surface treatment	Slip-resistant surface treatments. Surface treatment fine aggregates. Floor surface sealers.
Movement joints	-
Type	Resin flooring strip movement joints.
System completion	Testing slip resistance.
Colour	Black. Guidance for specification option: Stock colours. Mid Grey. Guidance for specification option: Stock colours. Traffic Blue. Guidance for specification option: Made to order colours. Traffic Green. Guidance for specification option: Made to order colours. Traffic Grey. Guidance for specification option: Stock colours. Traffic Purple. Guidance for specification option: Made to order colours. Traffic Red. Guidance for specification option: Stock colours. Traffic Yellow. Guidance for specification option: Made to order colours. White. Guidance for specification option: Stock colours.
Cure time	20 minutes.
Material	MMA. Guidance for specification option: Methyl methacrylate resin.
Third-party certification	To British Board of Agrément-certified (20/Q064).
Cleaning options	Guidance for specification option: Cleaning equipment and products for all industrial and commercial floor maintenance. Consult manufacturer and insert requirements or omit: Heavy Duty Wet Vacuum 30 Litre. Heavy Duty Wet Vacuum 60 Litre. Degafloor Eco-Clean. The DegaWash Range. Swift95. The Maxey. Emex. Crusader. Manufacturer guidance Floor Cleaning Solutions. See manufacturer literature 'DegaClean Cleaning & Maintenance Brochure'.

Sustainability data

Material	Methyl methacrylate Guidance for specification option: Methyl methacrylate resin. Resin

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Product certifications

QA Certificate

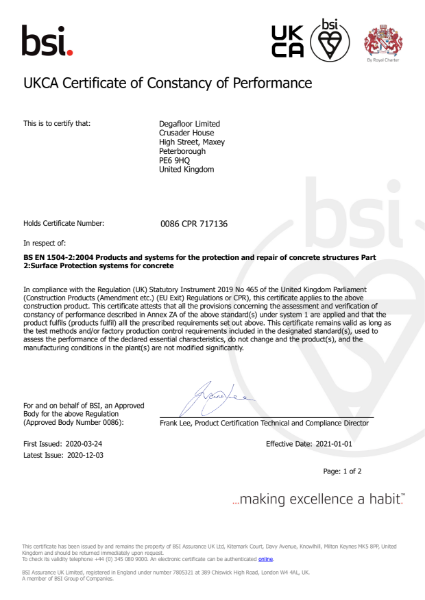

BSI UKCA Certificate of Performance - BS EN 1504-2 : 2004 Products and Systems for the Protection and Repair of Concrete Structures Part 2: Surface Protection Systems for Concrete
