Defender Warehouse Bollard (Sub-Surface) Ø 193mm
Verified by manufacturer 12 days ago
Galvanized steel single warehouse bollard.
Application

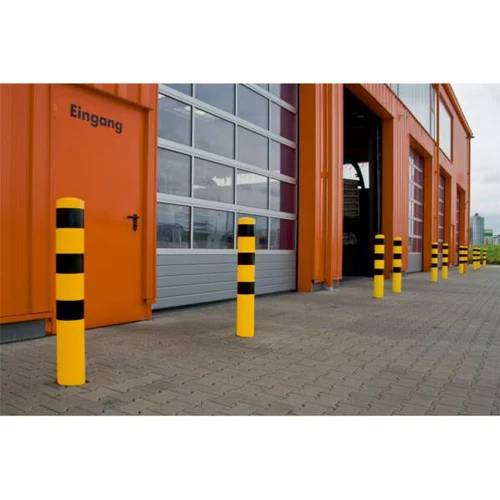

Suitable for use in warehouses.
Description

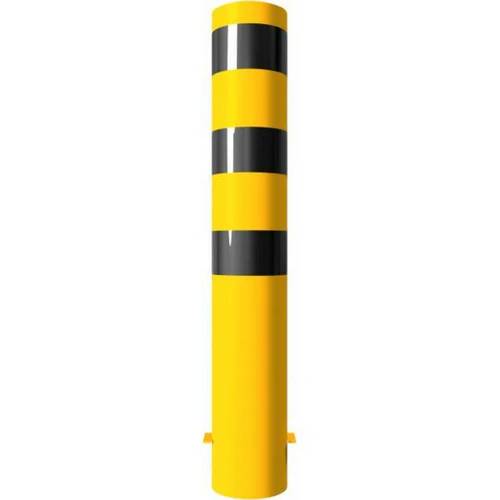

Hot dip galvanized steel single bollard.
Features and benefits:
- 1200/ 1500/ 2000 x Ø193 mm (height x diameter).
- 3.6 mm wall thickness.
- Hot-dip galvanized steel - high resistance to rusting.
- Concrete-in design for direct install into concrete.
- Integral anchor bars for added ground stability.
- Powder-coated yellow for high colour retention.
- Optional steel cap for insertion of concrete if additional strength is required.
- One year manufacturer's warranty.
General information
Color | Black Yellow |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Circle |
Width | 193 mm |
Height | 1200 mm 1500 mm 2000 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
SKU Code | 752548 |
Specification data - Carbon steel bollards
Classification data | |
Duty | |
Dimensions | |
Size and profile | Ø193 mm. |
Height | 1200 mm. 1500 mm. 2000 mm. |
Length below ground | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Post top | Rounded. |
Post base | Flat. |
Finishes | |
Applied finish | Galvanized and powder-coated. |
Colour | Yellow. |
Accessories | Not required. Steel cap. |
Sustainability data
Material | Steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

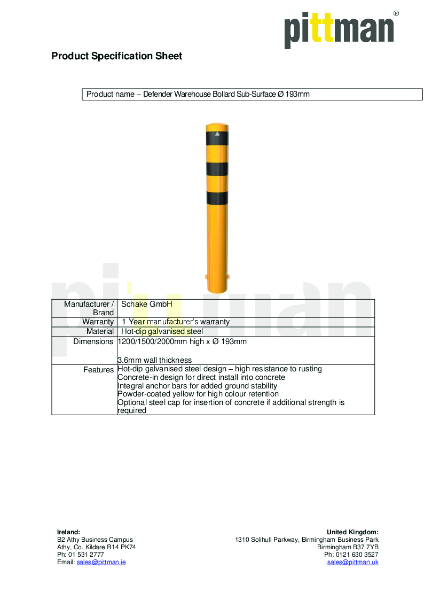

Defender Warehouse Bollard (Sub-Surface) Ø 193mm - Data Sheet
