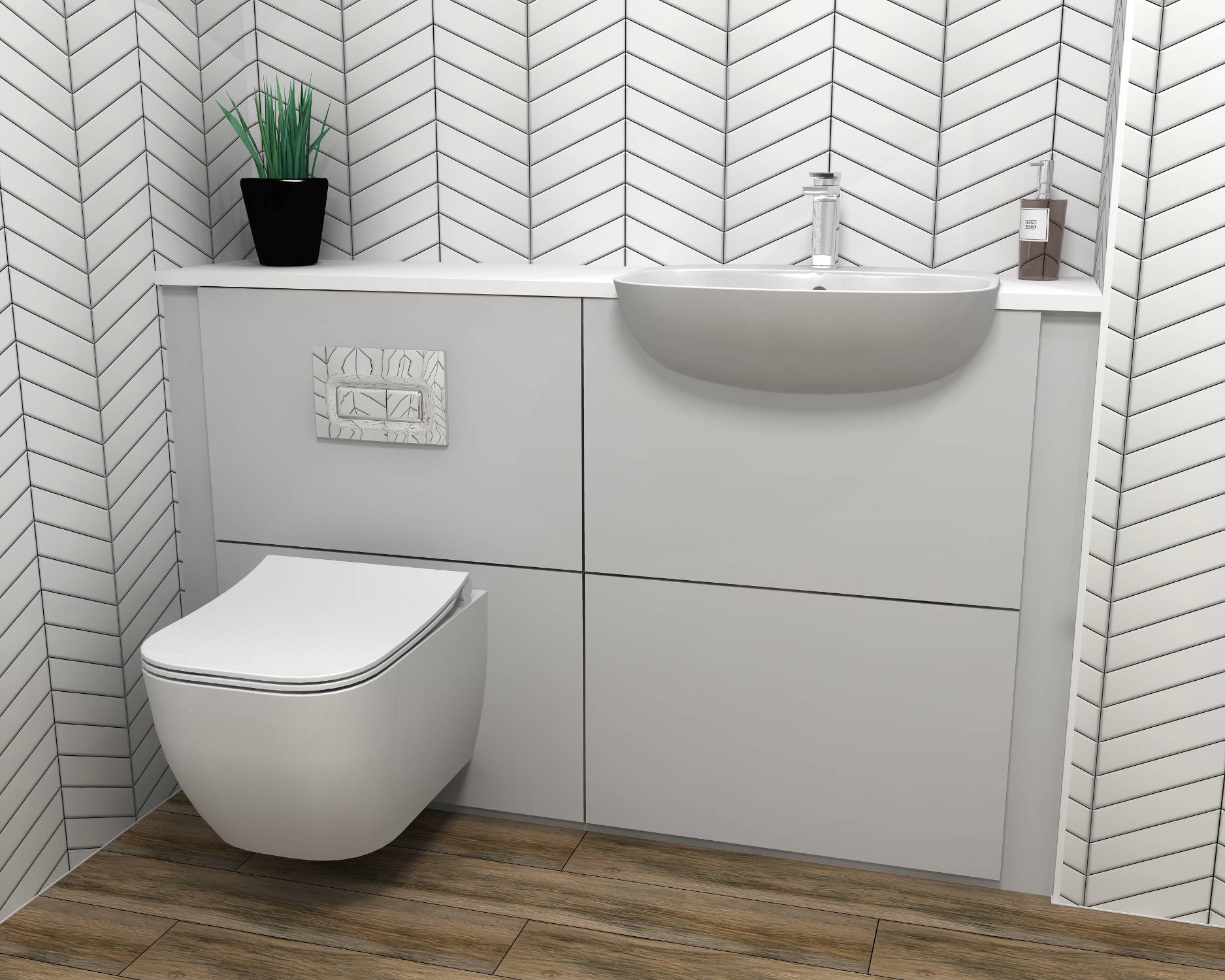

Décor Access System Integrated Plumbing System
Verified by manufacturer 2 months ago
Achilles Information Limited - Procurement Management
Certificate type
Chain of Custody Certification
Certificate type
A décor access system allows you to conceal a cistern and plumbing inside a decorative frame system. A more cost effective alternative to tiled bulkheads.
Application
The Décor Access System is a front frame system, comprising of:
- Oversized pre-cut and drilled frame scribed into aperture.
- Factory edged Décor panels pre-drilled for fixings.
- The basin and WC Décor panels are the only ones requiring cutting on site and are then clicked into position.
Suitable for domestic and residential bathrooms.
Description
A fully recyclable décor access system suitable for domestic bathrooms, offering a furniture solution to team with a semi recess basin and BTW WC.
Features and benefits:
- Includes lift-off panels.
- Supplied with a frame, four fascias and fixings.
- Available in a selection of 7 decors
- FSC accredited.
- Cleaner aesthetics.
- Quicker installation.
- No wet trades.
- Immediate access to cisterns, basin traps and all associated pipework/valves and ease of replacement for those components.
- Improved access for cistern replacement.
- Easier and cheaper customer care resolution.
- Ideal solution for an ongoing maintenance responsibility.
General information
Color | Green Blue White Grey Brown |
Finish | Laminated |
Material | MFC |
Shape | Rectangle |
Length | 32 mm Manufacturer guidanceDepth |
Width | 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm |
Height | 900 mm |
Warranty description | Five year |
Uniclass | |
CAWS | K32/15 Duct/ wall lining panels K13/160 Proprietary K32/140 Duct/ wall linings – panels only N10/110 Purpose-made N10/10 Purpose-made K13/160 Proprietary K13/140 Proprietary laminated plastics-veneered panel lining |
Specification data - Decorative laminated plastics sheet veneered panels
Third-party certification | FSC certified. |
Finished thickness | 32 mm. |
Edges | Square. |
Finish | Matt. |
Colour | White Gloss.Glacier Grey.Aragon Flint.Eton Oak. |
Balancing veneer | To match face colour. |
Width | 1200 mm. 1400 mm. 1600 mm. 1800 mm. 2000 mm. |
Height: | 900 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | MFC |
Manufacturing plant location | |
Recyclability | Fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 47 % |
Expected Life | 20 year |
Third party certifications
Achilles Information Limited - Procurement Management
Achilles
Chain of Custody Certification
FSC certificate
Literature
Decor access system
