Deco Shower Set One Or Two - Shower Set
Verified by manufacturer 4 months ago
Set One: Crosstop Handles - 5146-5140-5182-5157-3165-5185-5105-5396CP - Chrome
Set One: Crosstop Handles - 5146-5140-5182-5157-3165-5185-5105-5396CP - Chrome

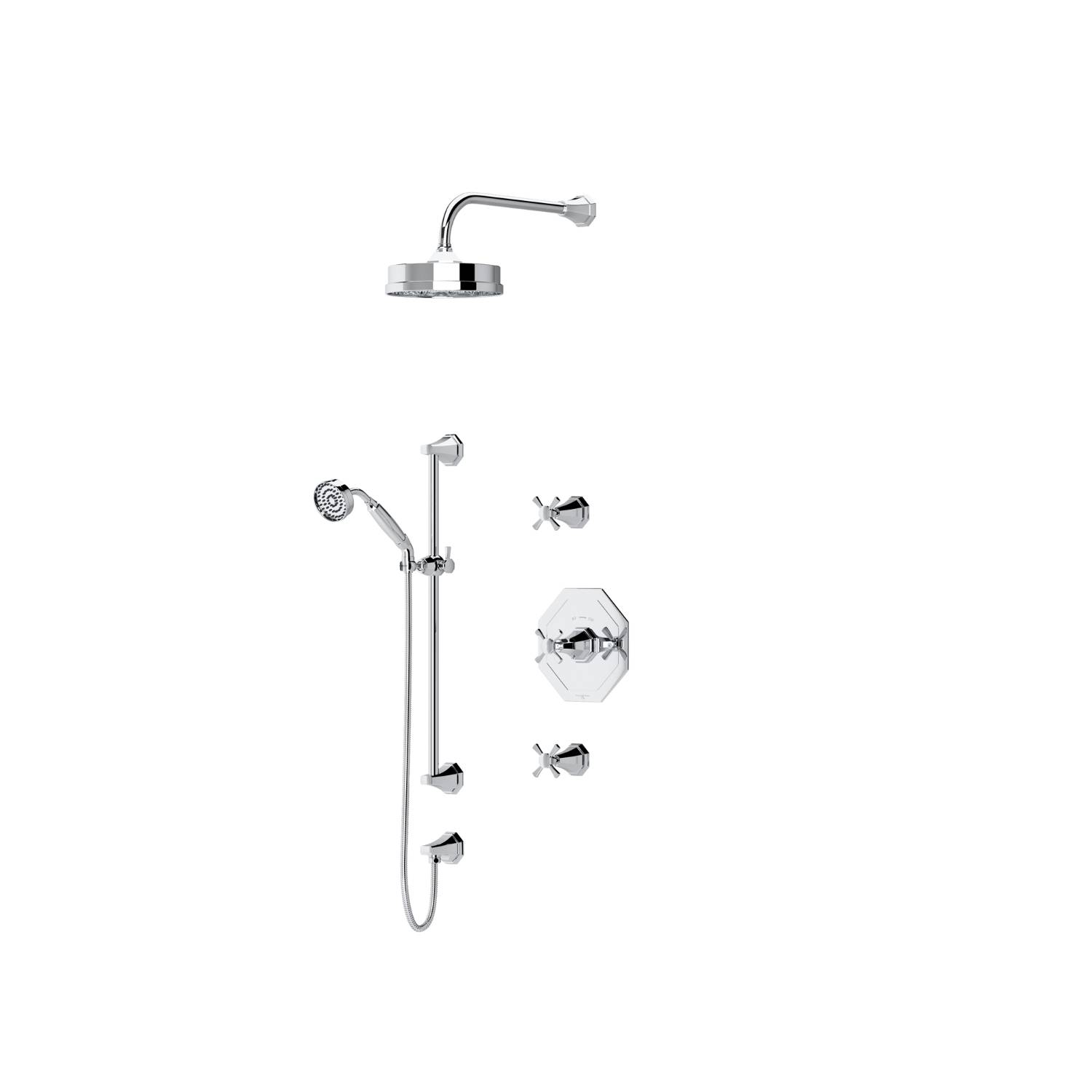

Shower set including thermostatic concealed valve, fixed shower head, slide rail kit and lever or crosstop handle.
Application
Bathrooms.
Description
Shower set including thermostatic concealed valve, fixed shower head, slide rail kit and crosstop (set one) or lever (set two) handles.
Features and benefits:
- Handcrafted in the UK.
- Plated to a thickness that exceeds the industry standards.
- Produced from quality low lead brass.
- Handcrafted in the UK.
- Plated to a thickness that exceeds the industry standards.
- Lever or crosstop handles.
Set components:
- 5146 Deco handshower wall outlet.
- 5140 Deco 600 mm sliding rail.
- 5184 Deco 410 mm overhead shower arm.
- 5157 Deco concealed thermostatic shower mixer without flow control with handle.
- 3164 Deco 3/4" wall stop valve with handle.
- 5185 Deco inclined handshower and hose.
- 5105 Deco 8" shower rose.
- 5396 Secondary outlet connector.
General information
Color | Silver Gold |
Finish | Chrome |
Material | Brass Nickel |
Shape | Other |
Uniclass | |
CAWS | N13/42 Shower mixer valves N13/41 Shower heads N13/40 Shower units N13/375 Shower units |
Specification data - Shower thermostatic water supply sets
Form | Concealed wall-mounted thermostatic shower mixer valve. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Water supply temperature (maximum) | Pre-set to 38°C.Guidance for specification option: Min 1°C / 34°F. |
Shower head | ø203.2 mm (shower rose). Guidance for specification option: 8". Manufacturer guidanceDeco 8" Shower Rose: 5105. |
Showerhead | ø75 mm (Handshower). Manufacturer guidanceDeco Inclined Handshower and Hose: 5185. |
HoseLength | 1.5 m. Manufacturer guidance5185. |
Arm | 180 mm. Manufacturer guidanceDeco 180 mm Overhead Shower Arm: 5182. |
Thermostatic mixing valve | 200 x 200 mm (back plate; with crosstop handle). Manufacturer guidanceDeco Concealed Thermostatic Shower Mixer without Flow Control with Crosstop Handle: 5158. |
Shower rail | 600 mm. Manufacturer guidanceDeco 600 mm Sliding Rail: 5140. |
Outlet | 65 x 70 mm; G1/2". Guidance for specification option: Base width x projection. Manufacturer guidanceDeco Handshower Wall Outlet: 5146. |
Handle type | 3/4" Wall Stop Valve with Crosstop Handle. Manufacturer guidanceDeco 3/4" Wall Stop Valve with Crosstop Handle: 2x 3165. |
Handles | 62 x 95 mm. Guidance for specification option: Base width x projection. |
Outlet connector | G1" x 22 mm. Manufacturer guidanceSecondary Outlet Connector: 5396. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Brass Nickel |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
