Decktect

Description

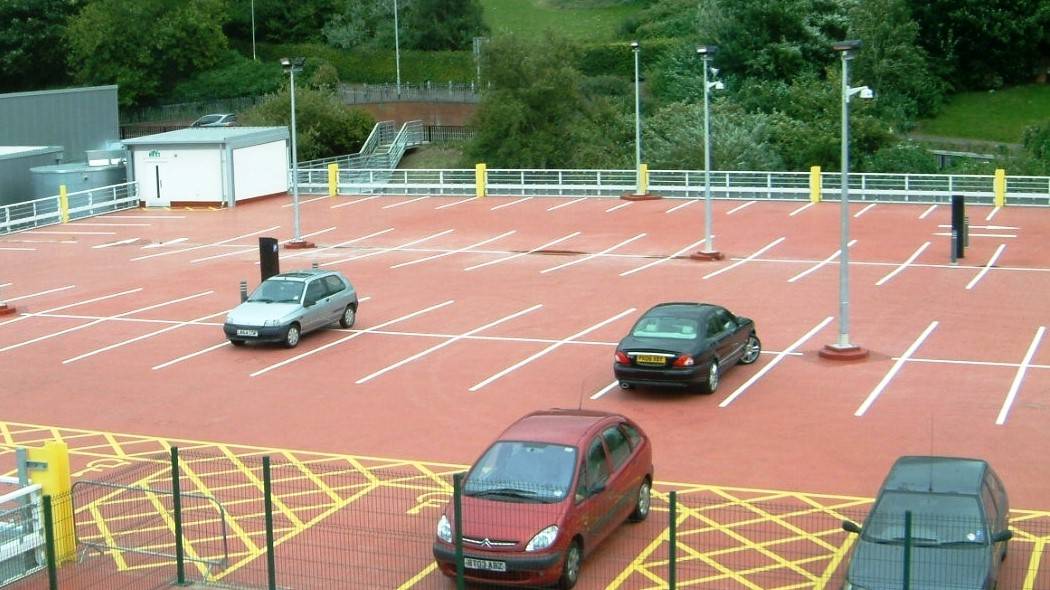

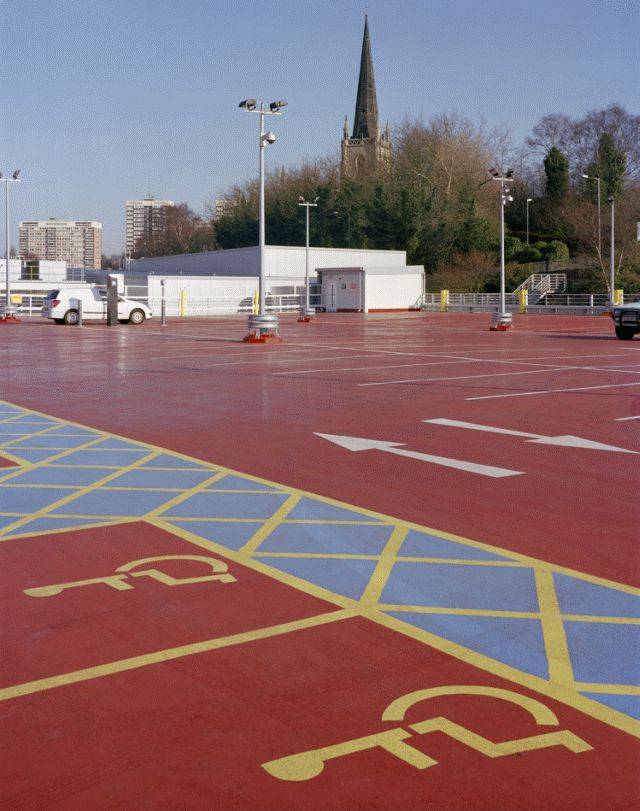

Decktect PU is an impervious and very hard-wearing waterproofing membrane primarily designed for car park decks and can be used for pedestrian walkways and vehicle access floors. The coating is flexible and accommodates normal substrate movement without cracking.

Joint system:

Flexijoint suits all manner of construction methods, including crack induced/ sawn joints and pre-formed expansion joints as well as coved skirting details and other finishing requirements.

Preparation:

All substrates to be sound and free from contamination with oil, grease and other matter. These can be removed by grinding, scabbling or shotblasting. Laitance to be removed by vacuum blasting, grinding or light scabbling. New concrete or cementitious substrates to have been placed for minimum 28 days and give Protimeter reading of less than 75% RH. Steel substrate to be cleaned to bright metal finish by grinding or shotblasting to S.A. 2.5.

General information

Finish

Chemically Resistant, impervious with excellent abrasion properties

Material

Polyurethane resins with aggregate dressing

WarrantyDescription

All warranties provided are based on each individual project - dependant on environmental and maintenance factors

Uniclass 2015

Pr_35_31_68_52 Membrane walkway coatingsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Membrane walkway coatings

Product Reference

Decktect PU

Primer

WD Bonder

To concrete substrate.

WD Aquatect

To concrete substate.

Resin flooring

-

Application

-

Basecoat

Decktect PU Basecoat. Spread with a serrated trowel

Decktect PU Aggregate Holding Coat. Apply with roller, broadcast antislip aggregate

Topcoat

Decktect Topcoat. Apply with roller

Colour

Arctic Blue

Conren Blue

Cream

Dark Grey

Light Green

Light Grey

Light Stone

Mid Green

Tile Red

Surface finish/ treatment

Decktect aggregate

Standard product features

Primer:

Allow primer to become tack free before applying base coat.

Product Options

Nominal thickness:

Consult with manufacturer for details.

Colours:

Other colours can be formulated on request, from both the BS 4800 and RAL colour groups.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

4

2.0
Download now from NBS National BIM Library
