Deck-VQ - Vacuum Insulation Panel
Verified by manufacturer 2 days ago
Deck-VQ - 40 mm
Deck-VQ - 40 mm
A vacuum insulation panel (VIP) for flat roofs, terraces and floors.
Application
For flat roofs, terraces and floors.
Description

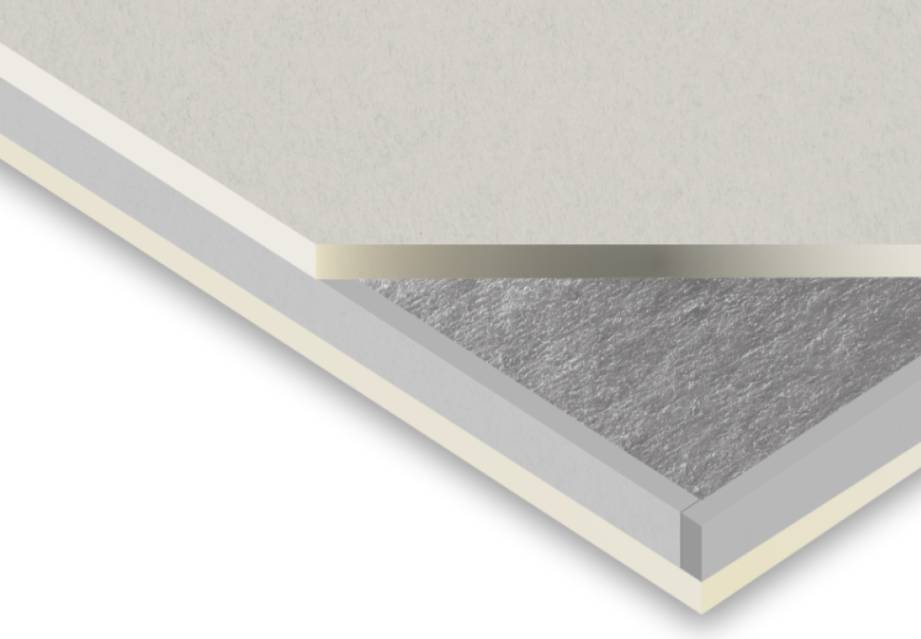

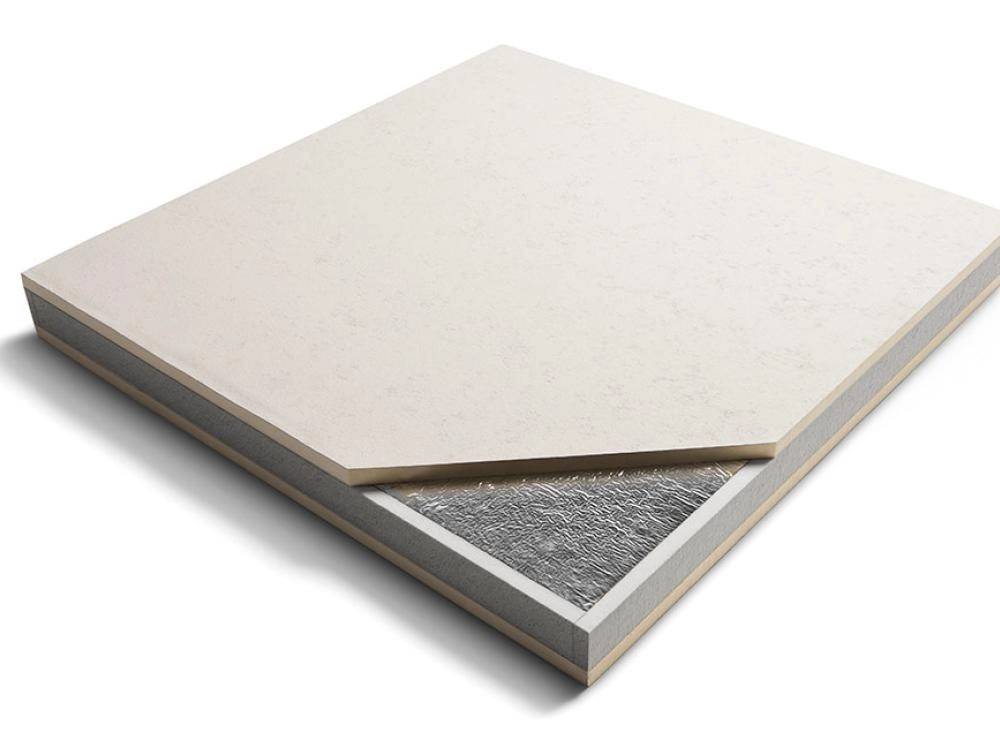

Deck-VQ is a vacuum insulation panel (VIP) containing a fumed silica core material. The core is inserted into multilayer foil envelope and the vacuum insulation panel is encapsulated with a high density thermal insulation board (PIR) on all sides.
Features and benefits:
- The solution for limited space.
- Thin thickness options available.
- CCPI assessed.
General information
Color | Grey |
Material | Polyisocyanurate (PIR) Foil Silica |
Shape | Rectangle |
Length | 600 mm 1200 mm |
Width | 300 mm 600 mm |
Height | 40 mm 45 mm 50 mm 55 mm 60 mm |
Uniclass | |
CAWS | J41/26 Thermal insulation M13/40 Floating construction M10/40 Floating construction J41/430 Warm deck roof insulation J42/10 Warm deck roof covering J42/420 Rigid urethane foam insulation M13/260 Floating construction M10/290 Floating construction J42/430 Warm deck roof insulation |
Specification data - Vacuum insulated panels
Classification data | |
Edges | Square. |
Panel facings | PIR insulation board faced with mineral coated glass fleece. |
Dimensions | |
Size (length x width) | 600 x 300 mm. 600 x 600 mm. 1200 x 300 mm. 1200 x 600 mm. |
Thickness | 40 mm. |
Density (minimum) | 180 kg/m³. Guidance for specification option: +/-10. |
Thermal conductivity (maximum) | 0.010 W/m·°K. Manufacturer guidanceThermal conductivity can vary with the dimensions of the boards. |
Compressive strength (minimum) | ≥ 150 kPa at 10% compression. |
Fire performance | Reaction to fire classification of Class E to EN 13501-1. |
Sustainability data
Country of product manufacture | Slovenia |
Material | Polyisocyanurate (PIR) Foil Silica |
Recyclability | Not recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Lifetime |
Literature
Literature type

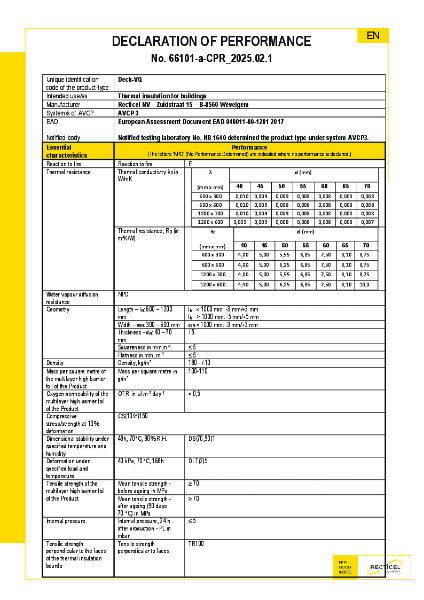

DoP Deck-VQ

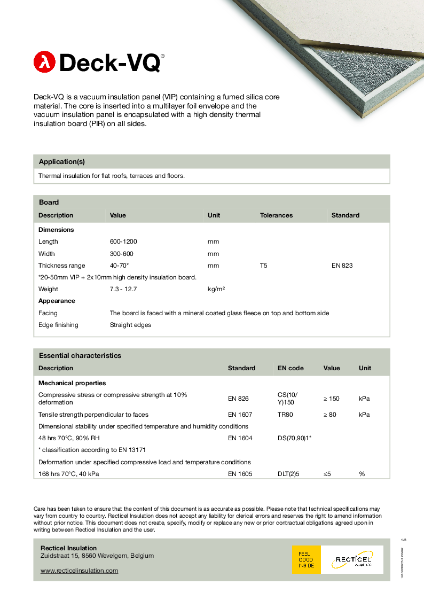

Deck-VQ Data Sheet

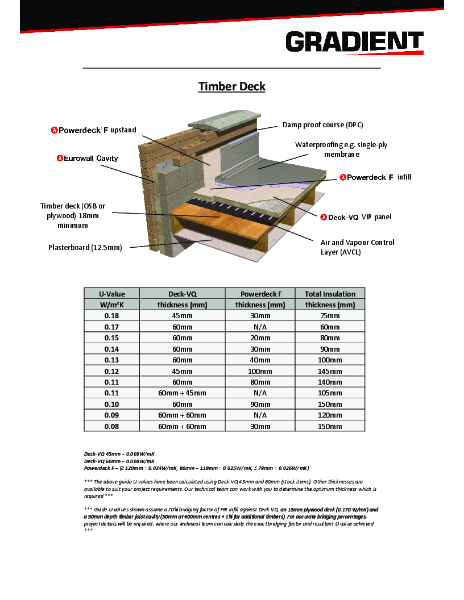

Deck-VQ Guide U-values - Timber Deck

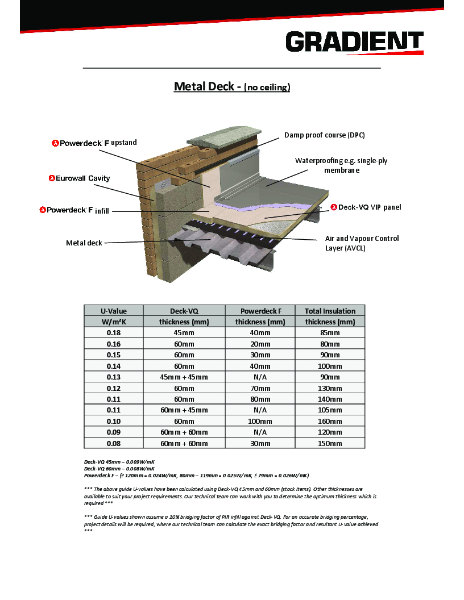

Deck-VQ Guide U-values - Metal Deck
Deck-VQ Guide U-values - Concrete Deck

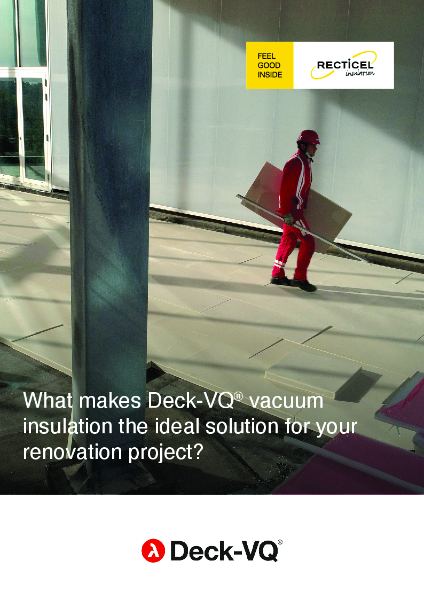

Deck-VQ Whitepaper
