Debonding Sleeves - For Use With Movement Ties

Verified by manufacturer 2 months ago

V31-100-PDBS (25 x 100 mm)

Vista Engineering Ltd Variant:

Debonding sleeves to allow for movement of ties.

Jump to:
+44 (0)1663 736700 Website

Application

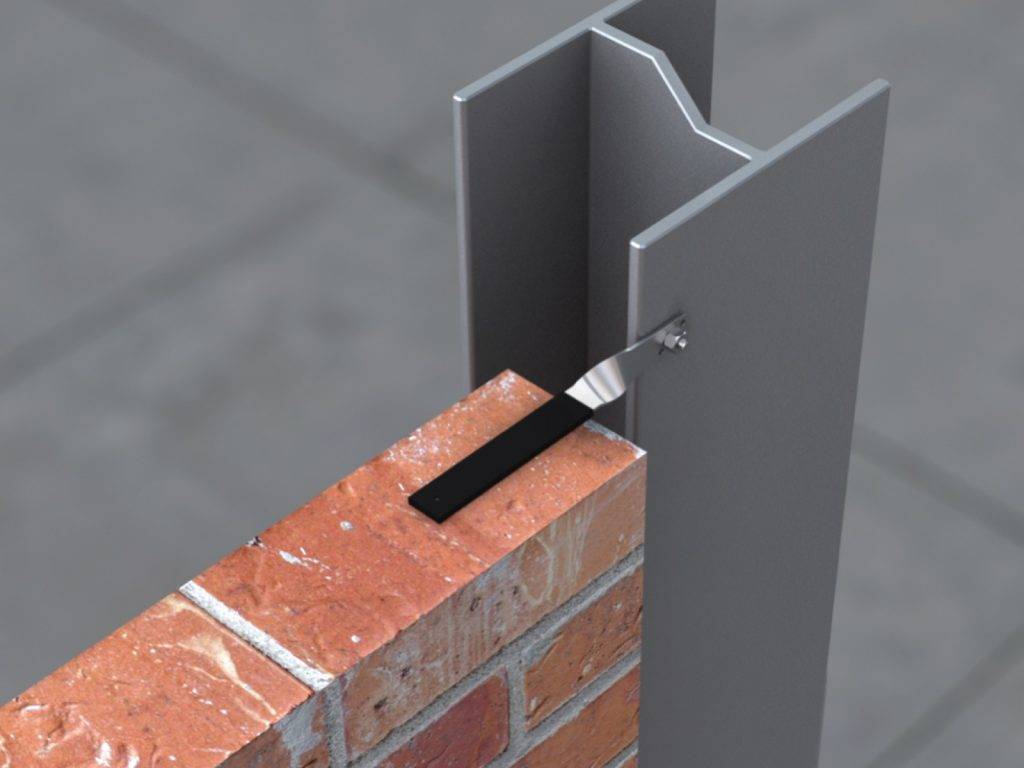

  • Allows masonry walls to be tied back to other structures, (steelwork or masonry) providing restraint in one direction but allowing movement in the other.
  • Also used in movement joints where they occur in long runs of brickwork, the ties span over a vertical joint preventing vertical movement but allowing horizontal expansion and contraction.

Description

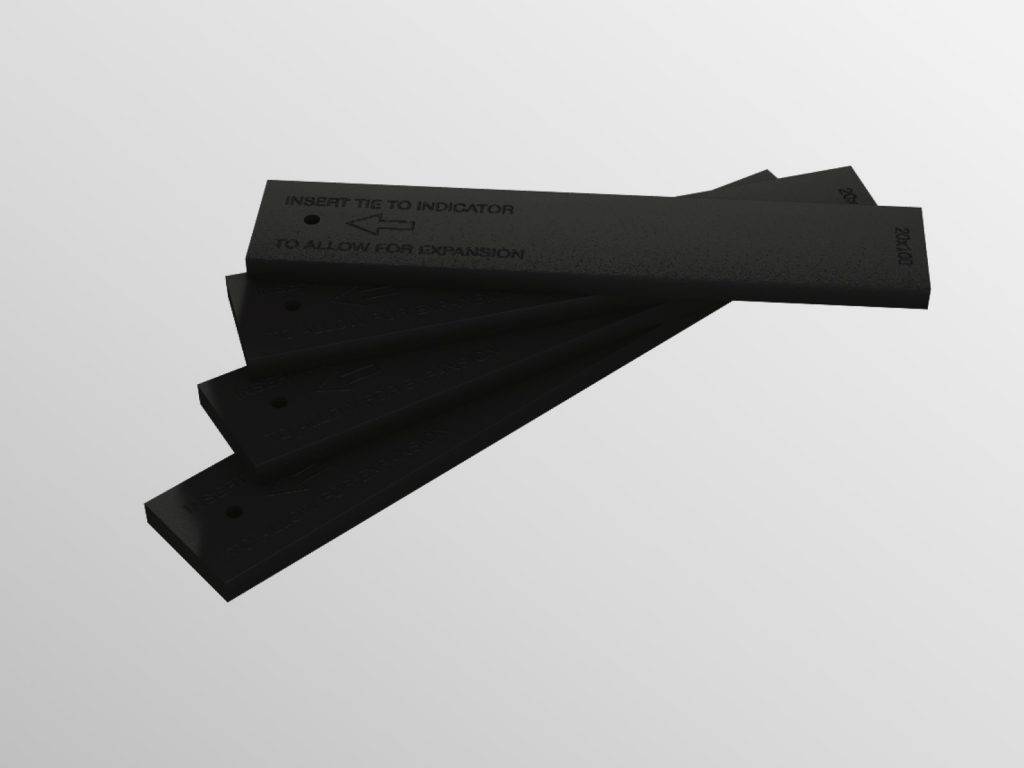

Debonding sleeves to allow for movement of ties.


Features and benefits:

  • Compatible with Vista movement ties.
  • Sleeves should have a 10 mm gap left at end to allow for movement once installed.
  • 20, 25 and 30 mm-wide options.
  • Note that a 25 mm-wide sleeve is required for channel ties.
  • Ties to be specified separately.

General information

Color

Black

Length

100 mm

120 mm

150 mm

Width

20 mm

25 mm

30 mm

Uniclass

Pr_20_85_84_33 General-purpose slip tiesPrimary
Pr_20_85_84_20 Channel slot ties

CAWS

F30/245 Channel/ slot ties

F30/41 Channel/ slot ties

F30/282 Slip ties

Specification data - General-purpose slip ties

Additional requirements

-

Shear load capacity

Manufacturer's standard.

Debonding sleeves

V31-100-PDBS: 20 x 100 mm.

Manufacturer guidance

Supplied in bags of 250.

Fixing

All 10 mm gap at the end to allow for movement once installed.

Purpose

Movement ties/ channel ties.

Guidance for specification option:

To be specified separately.

Sustainability data

Country of material origin

United Kingdom

Literature

Wall Ties Brochure

Wall Ties Brochure

Similar products from Vista Engineering Ltd

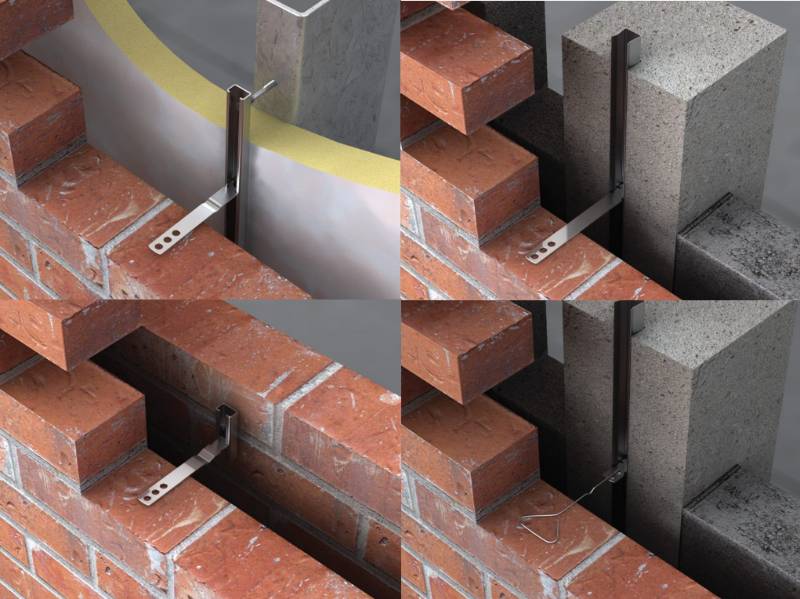

Channel Ties - Cavity Wall Ties for use with Channels
