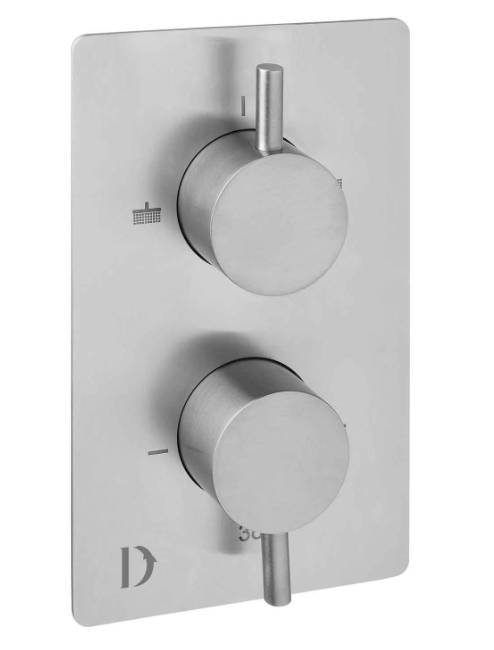

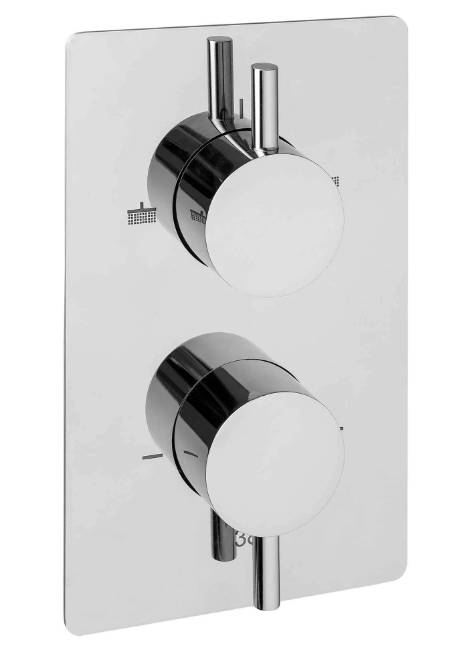

DB3100 Dolphin Blue Shower Valve & Two Way Diverter
Verified by manufacturer 3 months ago
Slimline shower valve with TMV2 thermostatic temperature control and two way diverter.
Application
Suitable for shower areas in high demand commercial locations. The lever makes the valve particularly suitable for accessible areas.
Description
Shower valve with thermostatic temperature control and two way diverter.
Features and benefits:
- Minimalist design with a slimline rectangular face plate.
- The thermostatic temperature control maintains consistent, comfortable showering temperature, preventing scalding.
- Manufactured from high quality brass and stainless steel.
- Satin, chrome or powder-coated finishes available.
- The valve is compatible with most Dolphin taps and fittings.
- Suitable for all water systems.
- Lever-less version is available (DB3101).
- Water Regulations Advisory Scheme (WRAS)-approved.
General information
Color | Silver Black Other Guidance for specification option: Powder coated in any RAL colour. |
Finish | Satin Chrome Powder-coated |
Material | Brass Stainless steel |
Shape | Rectangle |
Width | 130 mm |
Height | 215 mm |
Warranty description | Five year Guidance for specification option: Parts and labour guarantee. |
Uniclass | |
CAWS | S90/680 Thermostatic mixing valves S90/680 Thermostatic mixing valves N13/42 Shower mixer valves N13/40 Shower units N13/375 Shower units |
Specification data - Shower thermostatic valves
Approvals | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Wall-mounted thermostatic shower mixer valve. |
Materials | |
Body | Brass and stainless steel. |
Finish and colour | Chrome-plated.Satin.Powder-coated, RAL colour. |
Water supply temperature (maximum) | User-controlled. |
Thermostatic mixing valve | TMV2. |
Outlet | Two outlets. Guidance for specification option: For connection to a fixed shower head and hand held shower head with hose (sold separately). |
Lever | 30 mm. |
Width | 130 mm. |
Height | 215 mm. |
Projection | 45 mm. |
