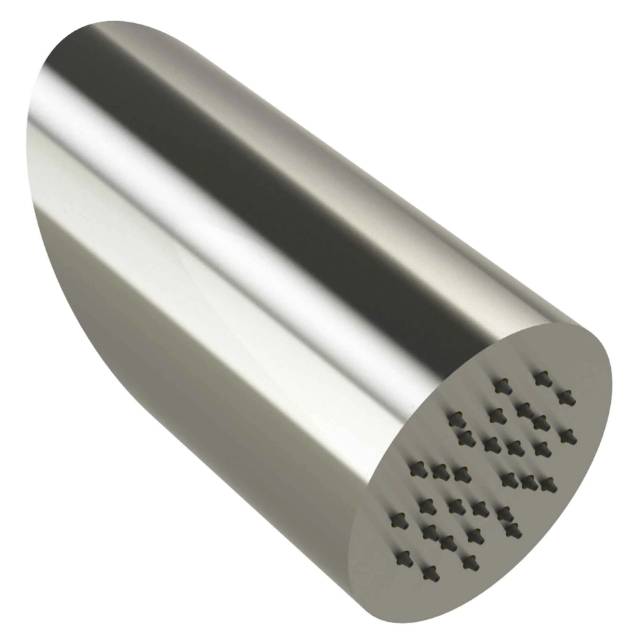

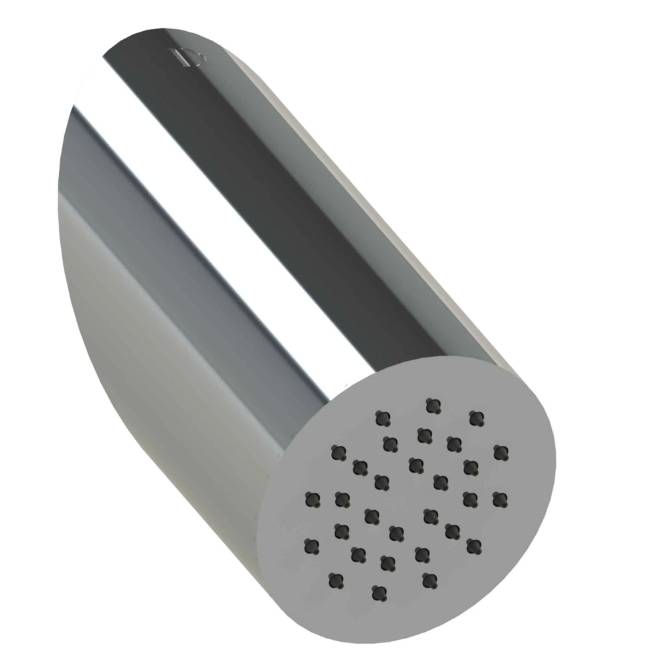

DB3000 Dolphin Blue Wall Mounted Shower Head
Verified by manufacturer 3 months ago
High quality wall mounted shower head.
Application
Suitable for wall mounting in high demand commercial shower areas.
Description
High quality shower head.
Features and benefits:
- Shower head has 30 nozzles.
- Manufactured from high quality brass and stainless steel.
- Polished chrome, brushed satin, PVD or powder-coated finishes available.
- The shower head is compatible with most Dolphin taps and fittings.
- Two flow regulators are included (6 or 9 litres per minute at 6 bar).
- Suitable for all water systems.
- Water Regulations Advisory Scheme (WRAS)-approved.
General information
Color | Black Bronze Copper Gold Silver |
Finish | Brushed Polished PVD Powder-coated |
Material | Brass Stainless steel |
Shape | Other |
Width | 102 mm |
Height | 219 mm |
Warranty description | Two year Guidance for specification option: Parts and labour guarantee. |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units N13/41 Shower heads |
Specification data - Shower heads
Approval | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Single function fixed head. |
Materials | |
Body | Brass and stainless steel. |
Finish and colour | Polished.Satin brushed.PVD, bronze.PVD, brass.PVD, gold.PVD, rose gold.PVD, black.PVD, copper.Powder-coated, RAL colour. |
Size | 102 mm diameter. |
Flow regulator | 6 L/min at 6 bar and 9 L/min at 6 bar. Guidance for specification option: Two flow regulators included as standard (not fitted). |
Accessories | Not required. Flow regulator, 5 L/min. Guidance for specification option: DB58863510000 - optional. |
Width | 102 mm. |
Height | 219 mm. |
Projection | 129 mm. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
