Day-Lite Kapture Skylight
Compare variants

Application

Suitable for any roof pitch application.

Description

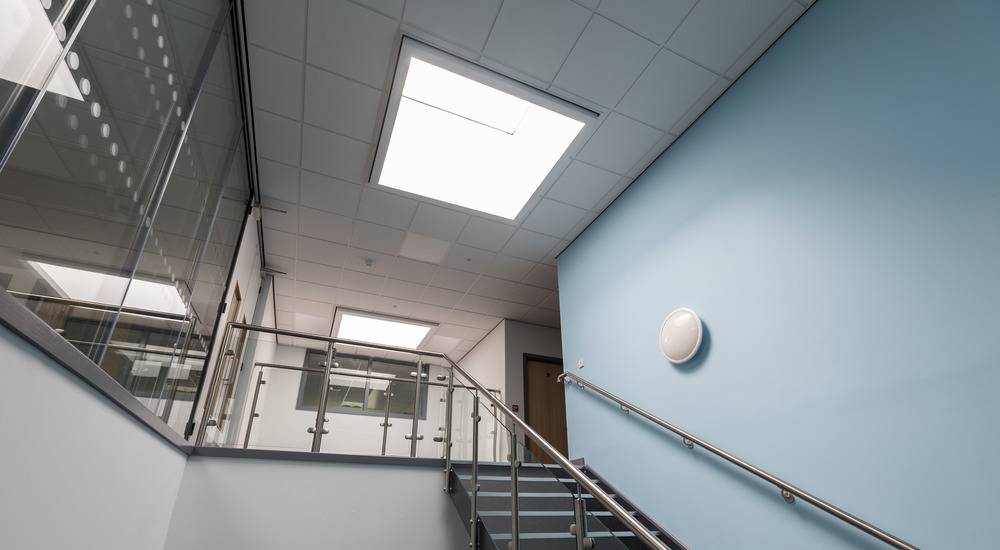

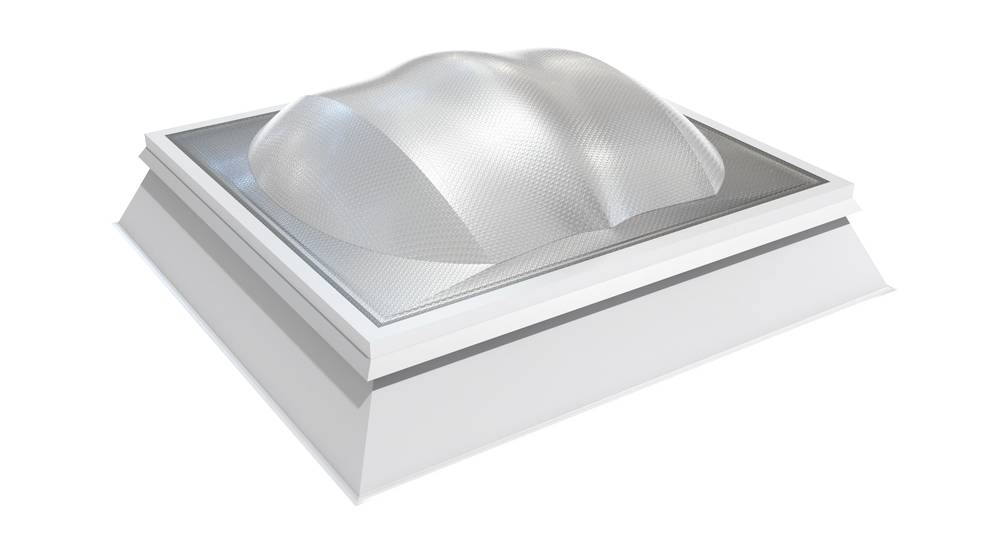

The exclusive, contoured design of the Kingspan Day-Lite Kapture skylight allows it to capture enhanced levels of natural light at low sun angles — illuminating internal spaces during early morning and late evening. Its advanced nano-prismatic technology efficiently scatters light ensuring excellent levels of light transmission while eliminating hot-spots and glare.


Features and benefits:

  • 100% diffusion with nano-prismatic technology.
  • White unplasticized polyvinyl chloride (PVC-U) or galvanized steel base, to suit design requirements.
  • Light transmission: Up to 83%.
  • Diffusion: 100%.
  • Solar Heat Gain Coefficient: 0.45.
  • Air leakage: 3 m³/hr/m² at 50 Pa.

General information

Color

White

Silver

Galvanized steel.

Material

Polycarbonate

Triple-layered polycarbonate skin.

Aluminium

Frame only.

Shape

Trapezoidal

Size

External sizes only; see product references for daylight opening sizes.

810 x 810 mm

WarrantyDescription

25 years

Guaranteed structural, thermal and UV resistance performance for up to 25 years.

Uniclass 2015

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/460 Rooflights

L10/45 Rooflights

Specification data - Framed rooflights Enhanced data

Form

Dome.

Size

Exterior length x width.

810 x 810 mm

Product performance

-

Fire performance

-

Fire resistance

Day-Lite Kapture polycarbonate achieves European class B-s1,d0 to EN 13501.

Can be regarded as an AA (National class) designation or BROOF(t4) (European class) in accordance with UK building regulations. Achieves B2 according to DIN 4102-1 and E according to DIN EN 13501-1.

Whole window U-value

Manufacturer's standard.

Skylight base: 1.3 W/m²K.

Polycarbonate glazing: 2.2 W/m²K.

Frame

-

Material

Aluminium.

Finish

-

Coating

Manufacturer's standard.

Colour

Manufacturer's standard.

Glazing or infill

-

Type

Polycarbonate.

Construction

Triple skin.

Colour

Manufacturer's standard.

Coating

Manufacturer's standard.

Integral kerb

PVC-U, 150 mm-high.

Heat-insulating.

PVC-U, 300 mm-high.

Heat-insulating.

PVC-U, 500 mm-high.

Heat-insulating.

Galvanized steel, 300 mm-high.

Galvanized steel, 400 mm-high.

Galvanized steel, 500 mm-high.

Operation

-

Type

Motorized actuator.

For daily aeration and ventilation of rooflights, as well as for exploiting daylight.

Accessories

None.

Steel security safety screen.

Tested to withstand the impact of a 50 kg weight (400 mm in diameter) a from a height of 2400 mm (BS EN 1873:2014 Class SB1200).

Visual warning light for control panel.

Wind and rain sensors.

Product Reference

KS700DLK

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
