Davits

Verified by manufacturer 9 days ago

Rostek Davit BR - R006300 (D400)

ROSTEK UK Limited Variant:
Third party certifications:
  • Alcumus SafeSupplier

    Alcumus SafeSupplier

    Certificate type

  • Achilles Information Limited - Procurement Management

    Achilles Information Limited - Procurement Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

Portable suspension system.

Jump to:
+44 (0)114 2138 600 Website

Application

Roof mounted portable suspension system suitable for suspending a self hoisting cradle for one person, two persons or a rope access operative.

Description

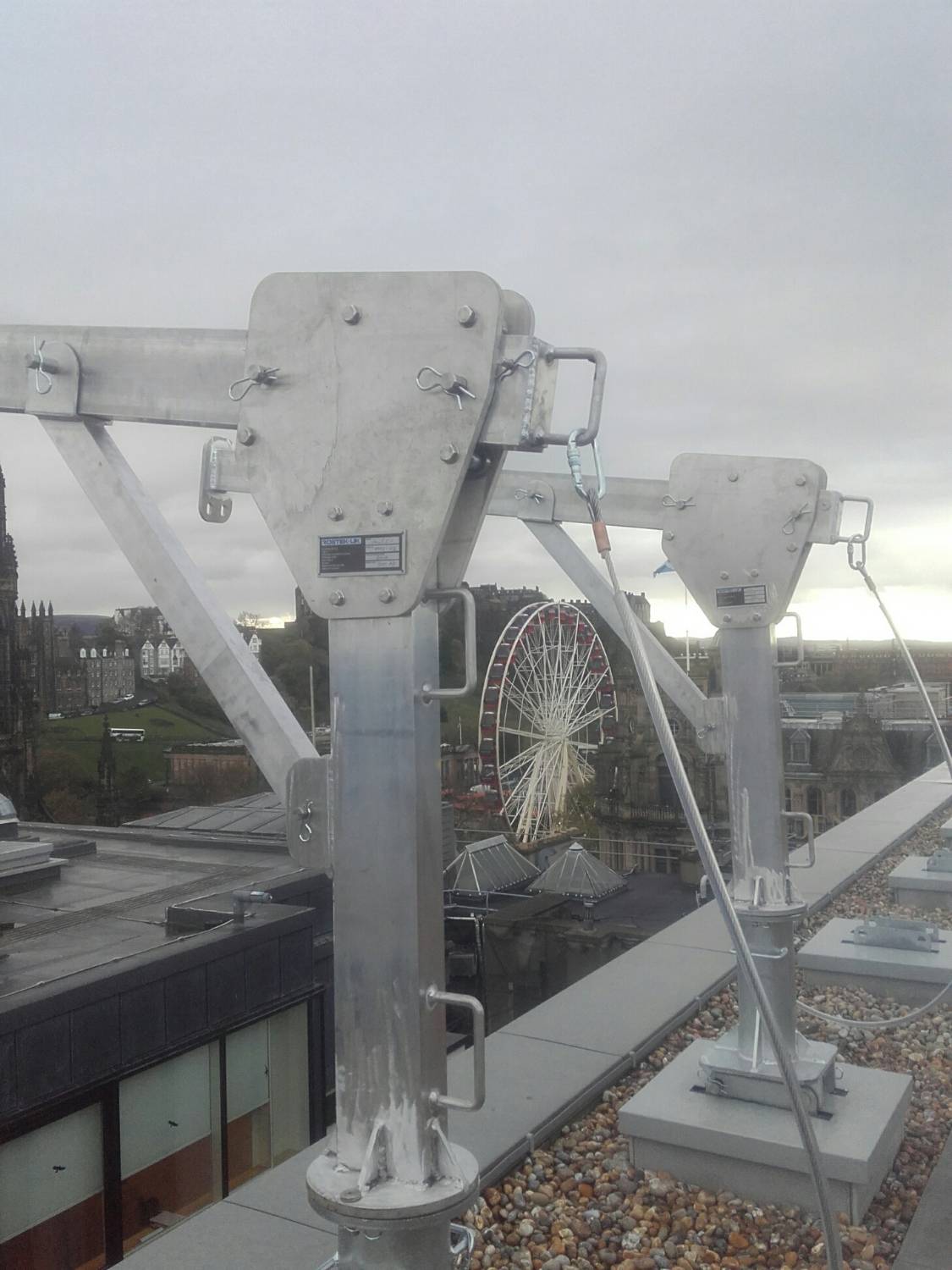

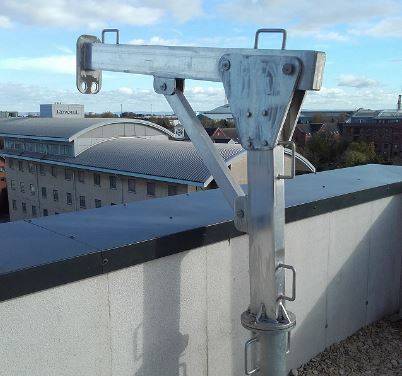

The davit is a portable suspension system which is roof mounted upon a base plate in order to suspend a self hoisting cradle for one person , two persons or a rope access operative.


The davit can rotate on its base plate so that the cradle may be lifted over the parapet and stored on the roof area. The davit can be dismantled in order to be transported from one base plate to the next along the roof, and for storage out of sight when not in use.


The lead designer is required to ensure that the davit will enable safe and accessible rigging and derigging of the cradle system.


Features and benefits:

  • Jib length varies to suit project.
  • Mast height varies to suit project.
  • Manufactured from aluminium and galvanized steel.
  • Conforms to BS 8610:2017 personal fall protection equipment - anchor systems.
  • Conforms to BS EN 1808:2015 safety requirements for suspended access equipment.

General information

Color

Silver

Finish

Mill

Galvanized

Material

Aluminium

Steel

Shape

Other

Length

Bespoke

Guidance for specification option:

Varies to suit project.

Width

Bespoke

Height

Bespoke

Guidance for specification option:

Varies to suit project.

Warranty description

Two year

Uniclass

Pr_40_70_75_21 Davit armsPrimary

CAWS

N25/10 Personal fall protection equipment

N25/210 Personal fall protection equipment

Specification data - Davit arms

Standard

To BS 8610:2017 and BS EN 1808:2015.

Third-party certification

Complies to Lifting Operations and Lifting Equipment Regulations (LOLER).

Loading (maximum)

-

Safe working load

400–600 kg.

Mode of operation

Manual.

Dimensions

-

Height (maximum)

Guidance for specification option:

Varies to suit project (maximum 4200 mm). Consult manufacturer and insert requirements.

Reach (maximum)

Guidance for specification option:

Varies to suit project (maximum 3000 mm). Consult manufacturer and insert requirements.

Material

Aluminium alloy.

Factory finish

-

Coating

Mill finish.

Colour

Self-coloured.

Ancillary equipment

Base plate.

Sockets

High grade hot-dip galvanized steel.

Weight

190 kg.

Guidance for specification option:

Approximately (depends on height and reach).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Steel

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

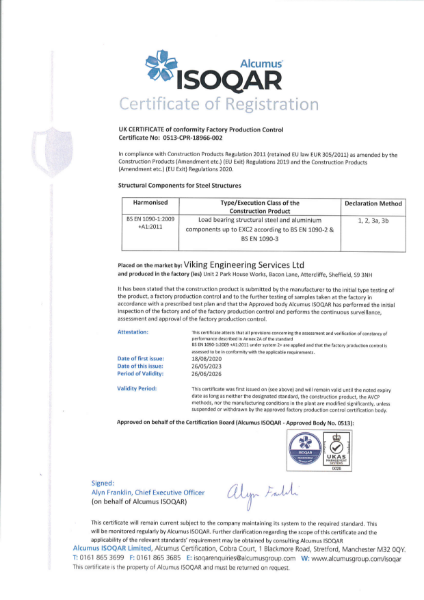

Alcumus SafeSupplier

Alcumus SafeSupplier

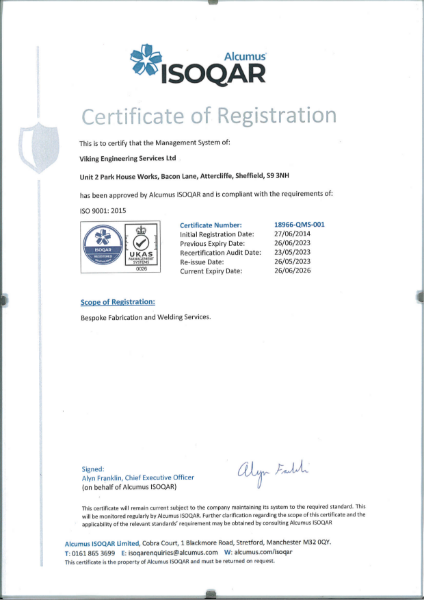

ISOQAR Certificate of registration

Alcumus SafeSupplier

Alcumus SafeSupplier

Bespoke fabrications and welding services Alcumus ISOQAR

Achilles Information Limited - Procurement Management

Achilles Information Limited - Procurement Management

Achilles Building with Confidence

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

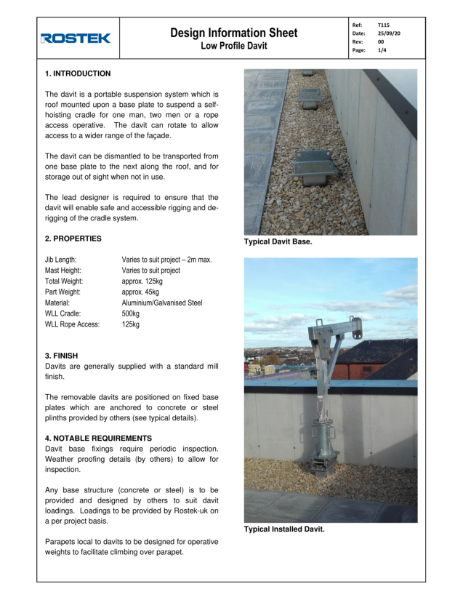

Design Information Sheet - Low Profile Davit

Design Information Sheet - Low Profile Davit

Davit Assembly and Cradle Rigging Diagram

Davit Assembly and Cradle Rigging Diagram

Rostek UK Davits

Rostek UK Davits
