DaVinci Select Shake Tiles
Verified by manufacturer 4 months ago

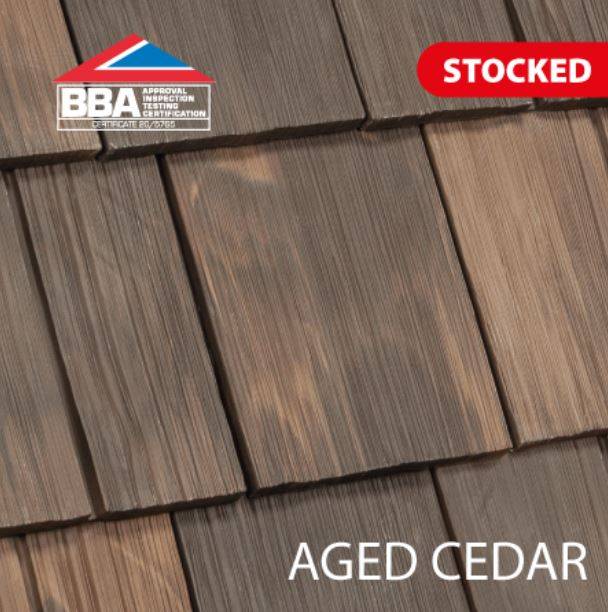

Aged Cedar - 8 Inch
Aged Cedar - 8 Inch
BBA Agrément Certificate
Certificate type
Engineered, polyethylene shake tile.
Application
Suitable for all roofs.
Description
Engineered to look better, for longer the DaVinci Select Shake tiles have a BROOF(t4) Fire rating and a 40-year warranty. Select Shake is constructed of a composite material made of virgin resins, UV and thermal stabilizers as well as a highly-specialized fire retardant.
Features and benefits:
- Lightweight – as low as 14 kg per square metre.
- Easy to install with pre-marked nailing guides.
- Easily cut with a fine-toothed saw or sharp utility blade.
- The 10″ pieces have a simulated keyway to give the look of 4″ and 6″ shakes to create a multi-width appearance.
- Finished look creates appearance of 4″, 6″, 8″, and 10″ shakes.
- No sorting, clipping, or drilling prior to roof loading. Packaged in bundles of 22 for easy handling.
- Fittings (ridges and hips) are mechanically fixed.
- 16 mm to 6mm tile thickness (wedge shaped).
- 40-year warranty.
- Fully tested to BBA standards, including fire rating, wind, driven snow and rain, and water absorption.
- DaVinci Select Shake is created from authentic wood profiles, making it the most realistic roofing product on the market.
- Resistant to fading, rotting, cracking, and pests.
- DaVinci Select Shake Ridge and Hip Caps are not made from recycled plastics but are manufactured from recyclable virgin polyethylene.
General information
Color | Brown Black |
Finish | Woodgrain |
Material | Polyethylene |
Shape | Rectangle |
Length | 559 mm |
Width | 203 mm 254 mm |
Height | 16 mm |
Warranty description | 40 year |
Uniclass | |
CAWS | H60/3 Roof tiling H65/5 Roof tiling H64/10 Wood shingle/ shake roofing H64/110 Wood shingle/ shake roofing |
Specification data - Wood shakes
Form | Composite blend of virgin polyethylene, UV and thermal stabilizers and specialized fire retardant. |
Species | |
Type | Guidance for specification option: Imitates hand-split cedar shake. |
Length (minimum) | 559 mm. |
Treatment | |
Flame retardance | To EN 13501-5, BROOF(t4). |
Width | 203 mm. |
Thickness | 16 mm (front edge); 6 mm (back edge). Guidance for specification option: Wedge shaped. |
Weight | 0.6 kg. |
Coverage | 22 tiles per m². Guidance for specification option: Note that 22 tiles includes the required 10% extra for cutting/breakages, etc. |
Colour | Aged cedar. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Recyclability | Manufactured from recyclable virgin polyethylene |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % Manufacturer guidanceDaVinci Select Shake is not made from recycled plastics. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

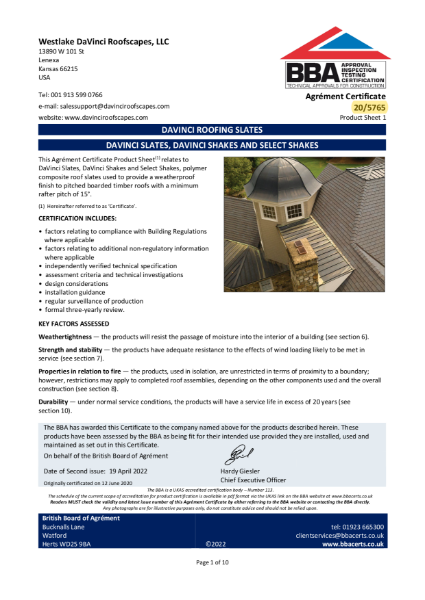

BBA Agrément Certificate
20/5765
