Datadek - Plant Deck
Verified by manufacturer 4 days ago

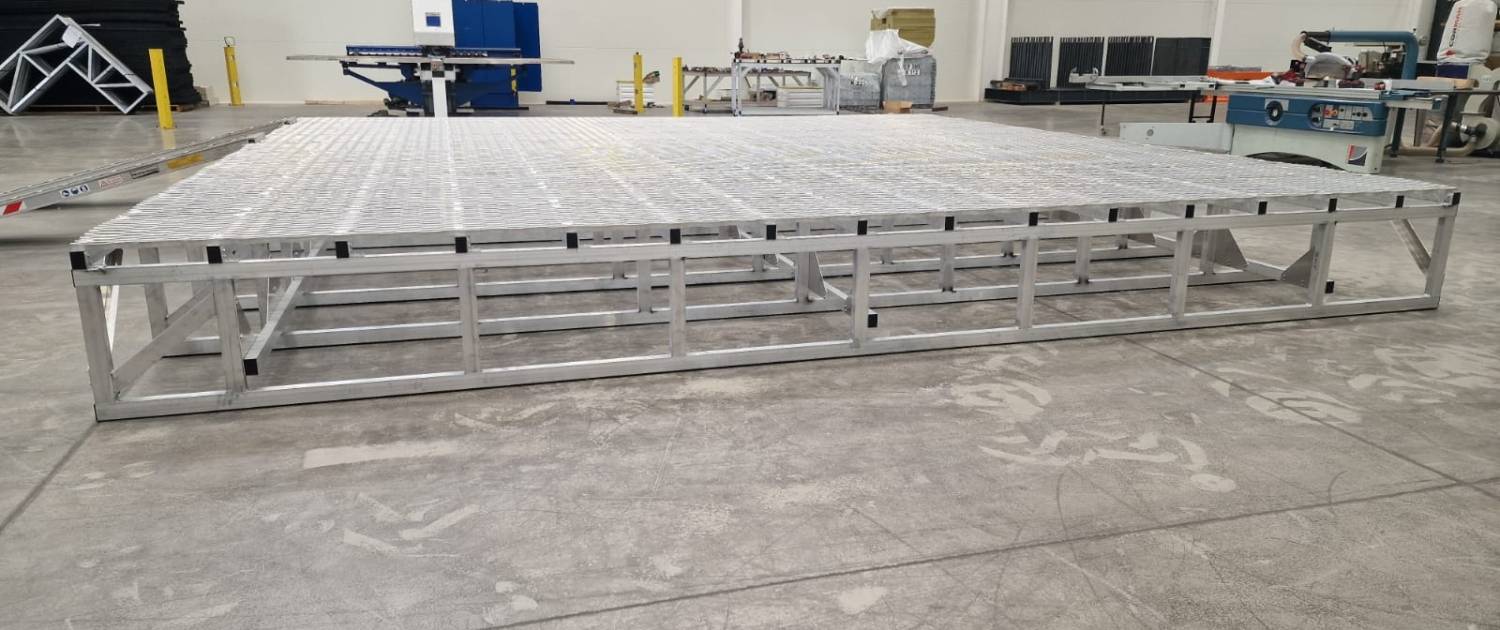

Plant mounting solution complete with penetration-free mounting and available in 600 mm increment sizes and a range of surround types.
Application
Suitable for plant mounting on both steep and saw-toothed roofs and particularly suitable for extra heavy, data centre rooftop equipment.
Description
Plant mounting solution.
Features and benefits:
- Penetration free making placement and position on the roof flexible.
- Configurable in 600 mm increment sizes in width and length to suit requirements.
- Pitch is configurable to suit the roof requirement.
- The lightweight aluminium design makes it easy for carrying, craning and assembly.
- Available with a range of surround type options.
- Extra height increases air-flow to improve equipment’s performance and longevity.
- Compatible with steep pitched roofs and saw-toothed roofs.

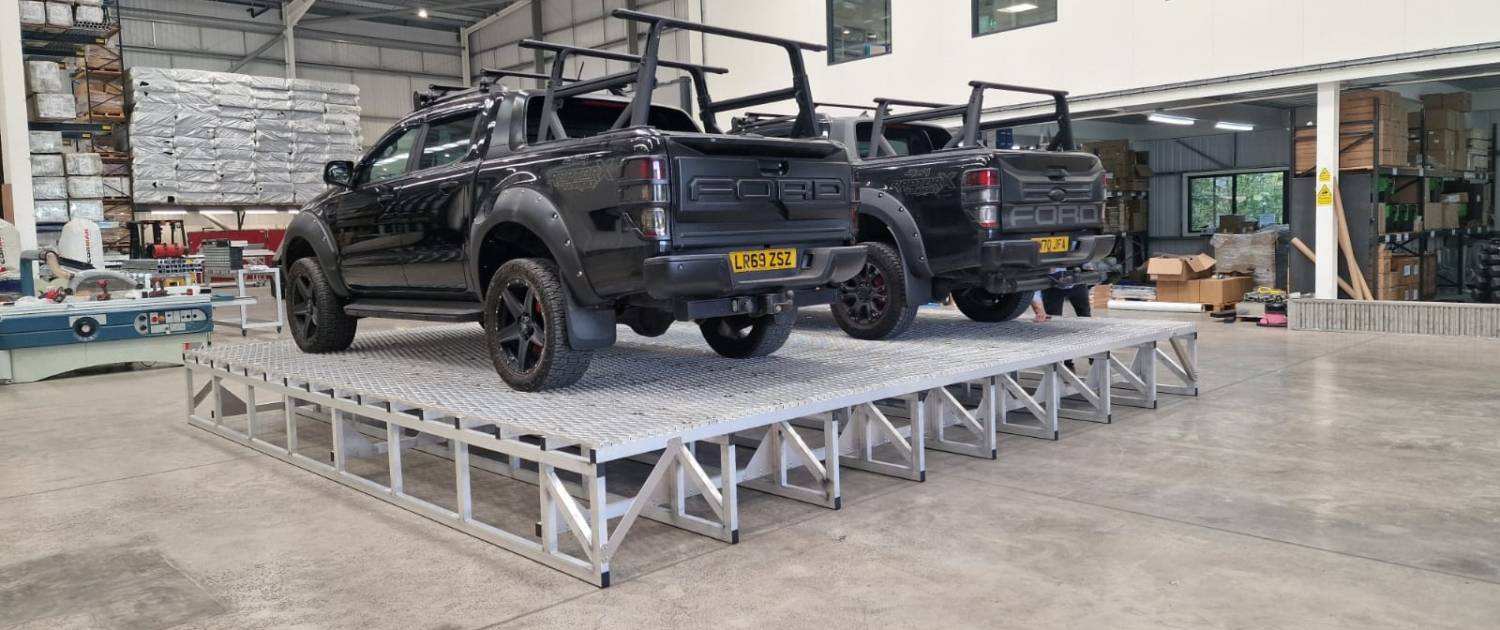

- Unique design distributes the load evenly, reducing the structural requirements of the roof.
- All aluminium components with stainless steel fixings – backed by a 20-year warranty.
- Live load rated from 6 to 9 kPa.
- Super lightweight 22 kg/m².
- Complies to BS EN 516:2006 and BS EN 1090-3:2008.
General information
Color | Other |
Material | Aluminium Stainless steel Guidance for specification option: Fixings. |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Warranty description | 20 year Guidance for specification option: For aluminium components and stainless steel fixings. |
Uniclass | |
CAWS | L35/370 Guardings L35/360 Working platforms |
Specification data - Aluminium plant platforms
Classification data | |
Product reference | Datadek |
Standards | To BS EN 516 and BS EN 1090-3. |
Roof pitch | Manufacturer guidanceInsert requirements. |
Frame fixing to superstructure | Non-penetrating - not fixed: 6 mm neoprene foam rubber tape pre-adhered to underside of structural members in contact with superstructure. Guidance for specification option: This is a medium density neoprene foam rubber tape that is designed to compress and provide traction to the roof material without adhering. Non-penetrating - fixed: VHB foam rubber tape pre-adhered to underside of structural members in contact with superstructure. Guidance for specification option: This is a high strength VHB foam tape 40 mm wide x 2 mm thick that comes with a removable backing that is designed to adhere the platform to the roof surface. |
Length | Guidance for specification option: Available in 600 mm increment sizes; insert requirements. Manufacturer guidanceLength (along roof). |
Width | Guidance for specification option: Available in 600 mm increment sizes; insert requirements. Manufacturer guidanceWidth (down roof). |
Configuration | Manufacturer guidancePosition or quantity of access doors or gaps if required; insert requirements or refer to drawing/ schedule. |
Accessories/ Optional surrounds | Not required. Guardrail system. Guidance for specification option: For edge protection recommended where any platform sides are higher than 300 mm from the adjacent roof surface. Standard Screen system. Guidance for specification option: For aesthetic screening of the plant, equipment and ductwork. Soundshield system. Guidance for specification option: For aesthetic screening and acoustic attenuation by reflection. Peacemaker system. Guidance for specification option: For aesthetic screening and acoustic attenuation by absorption. Acoustic+ system. Guidance for specification option: For aesthetic screening and acoustic attenuation by reflection and absorption. Manufacturer guidanceCan be provided to any of the four sides of the Datadek platform in 600 mm increments. |
Material | Manufacturer's standard. Guidance for specification option: Consult manufacturer for more details. Manufacturer guidanceDecking and flooring material. |
Assembly connectors | Stainless steel fixings. |
Live load rating | 6–9 kPa. |
Area weight | 22 kg/m². |
Reaction to fire | Class A1. |
Frame section | Manufacturer's standard. Guidance for specification option: Consult manufacturer for more details. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Stainless steel Guidance for specification option: Fixings. |
