Verified by manufacturer 6 months ago

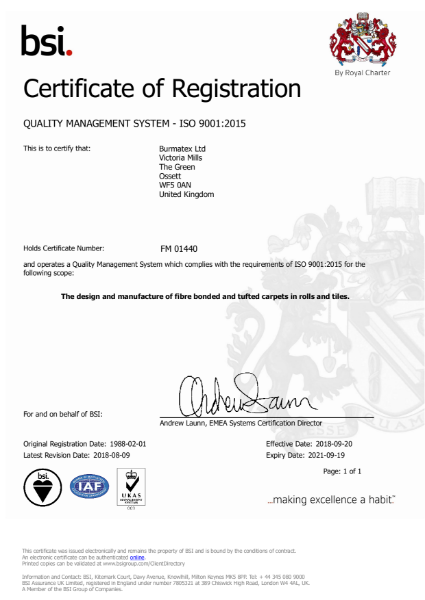

Statement of compliance
Certificate type

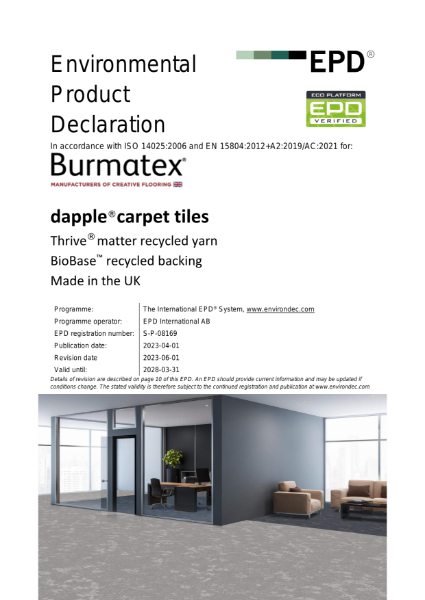

EPD
Certificate type

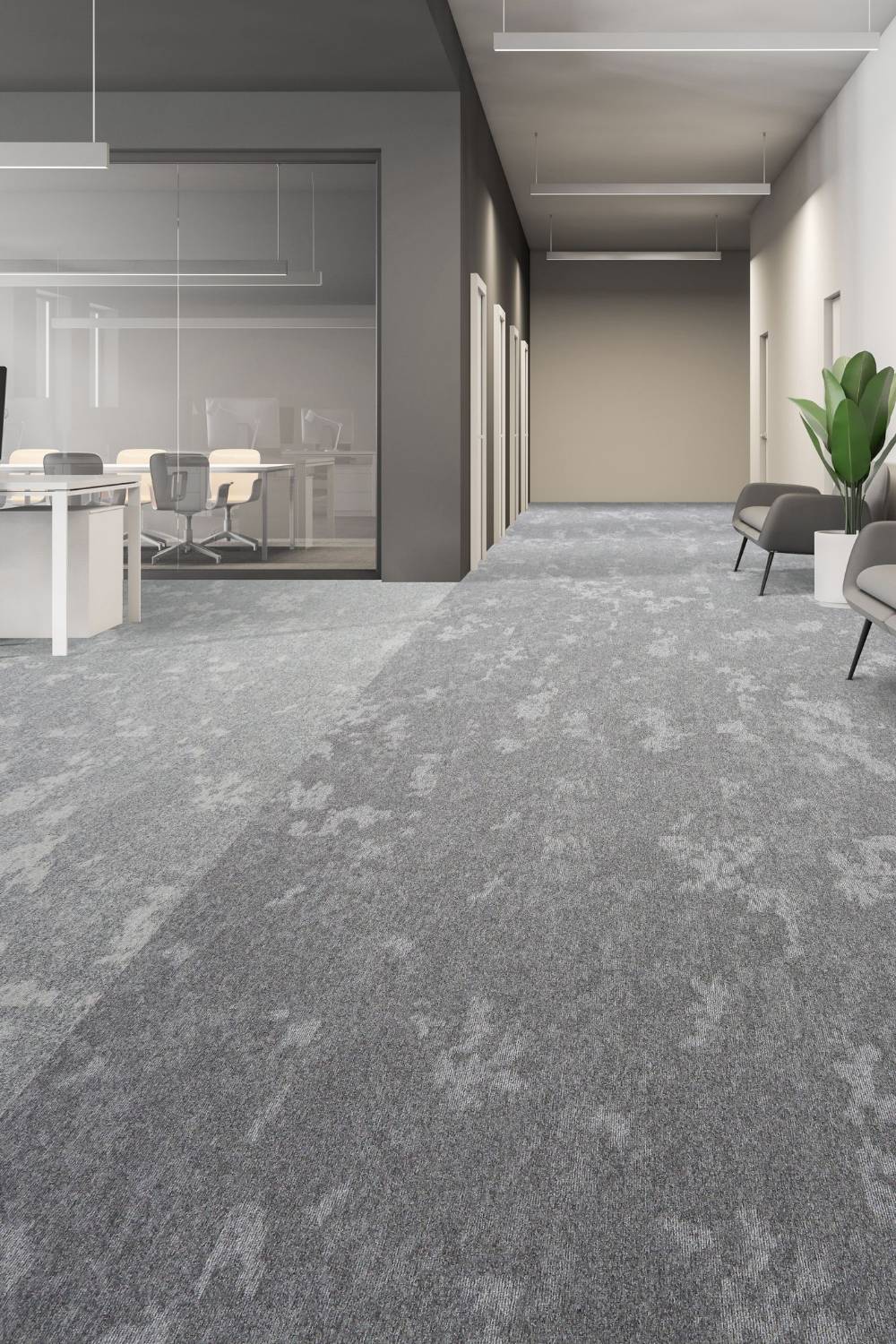

Dapple takes inspiration from walks in nature and the shaded light you see under a forest canopy.
Suitable for both accents and large installations across the commercial, public and education sectors.
Made from Universal Fibers® Thrive® matter yarn, world’s first carbon negative recycled yarn, and our unique BioBase® recycled backing, dapple® is carbon neutral.
dapple®’s organic design echoes the effect of light being filtered through trees and scattered onto the forest floor. Inspired by nature, the 12 colour palette helps you connect your built interior to the natural environment..
Features and benefits:
Color | Grey Green Blue Black Yellow Manufacturer guidance12 colour options, consult manufacturer and insert requirement. |
Material | Nylon Guidance for specification option: Pile yarn. |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 7 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | M50/130 Carpet tiling M50/15 Carpet tiling |

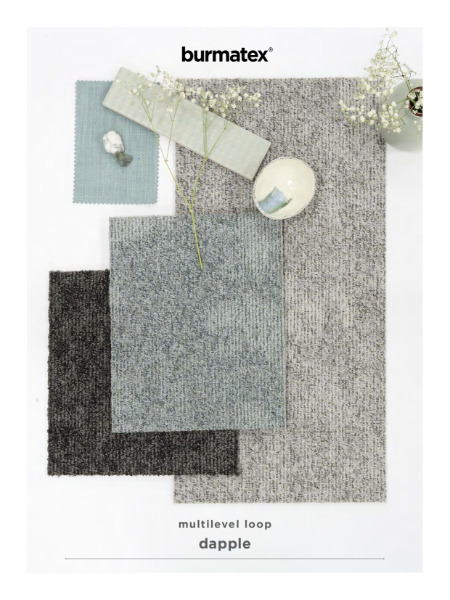

Style | Textured loop. |
Material | Nylon. |
Classification | |
Standard | To BS EN 1307. |
Level of use class | To BS EN 1307, class 33. |
Luxury rating class | LC2. |
Size | 500 x 500 mm. |
Colour and pattern | 34301 - Silver gleam.Guidance for specification option: LRV: Y 20.26. 34302 - Cool breeze.Guidance for specification option: LRV: Y 13.64 34303 - Grey zephyr.Guidance for specification option: LRV: Y 8.75 34304 - Golden hour.Guidance for specification option: LRV: Y 13.45 34307- Luminous blue.Guidance for specification option: LRV: Y 7.01 34309 - Midnight violet.Guidance for specification option: LRV: Y 5.25 34308 - Vivid navy.Guidance for specification option: LRV: Y 3.47 34312 - Dark nimbus.Guidance for specification option: LRV: Y 2.59 34305 - Spring seed.Guidance for specification option: LRV: Y 24.96 34306 - Airy celadon.Guidance for specification option: LRV: Y 18.58 34310 - Inky shade.Guidance for specification option: LRV: Y 5.93 34311 - Moonlit glow.Guidance for specification option: LRV: Y 5.02 |
Pile density | 236,220/ m². |
Height | 5.2 mm. |
Pile yarn weight | 678 g/m². |
Total thickness | 7.0 m. |
Net weight | 4100 g/m². |
Hexapod | To BS ISO 10361, Method B:2000 3 to 4. |
Body voltage to ISO 6356 | To BS ISO 6356:2000, <2 kV. |
Backing | BioBase® recycled backing. |
Static loading (to BS 4939:1987 (2003)) | To BS 4939: 1987 (2003), recovery >80% (24hrs). |
Thermal resistance | 0.48. Manufacturer guidanceTog Rating. |
Flammability | Euroclass Bfl-s1. |
Sound absorption coefficient | To BS EN 354:2003. |
Noise | 24 dB. |
Noise at 1000 Hz | 42.8 dB. |

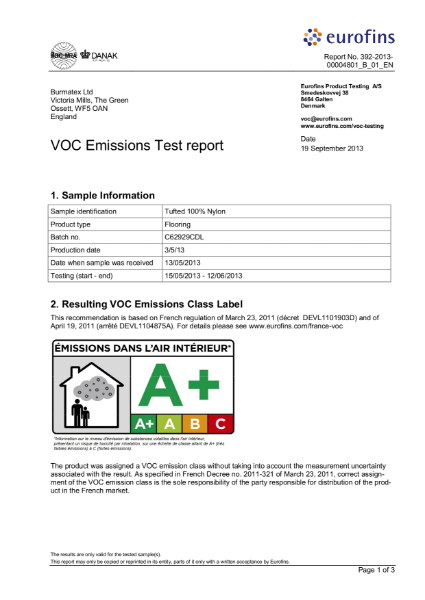

Volatile organic compounds | A+. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 3.31 kg CO₂ eq/m² |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 72.9 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
