Description

Designed for use on even concrete sub-floors and used in conjunction with Danskin flanking strip and on occasion Park Quilt 25 or 13 to complete the acoustic specification.

General information

Size

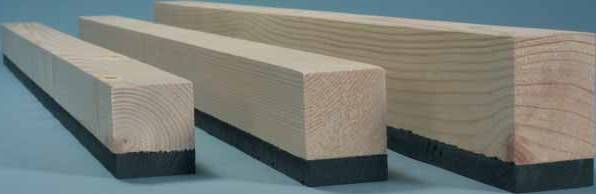

47 mm nominal width x 1800 mm long softwood battens, with a 9 mm resilient foam strip adhered to the underside available in standard heights from 31 mm to 70 mm

Alternative sizes can be supplied on request

Uniclass

Pr_20_76_88_47 Insulating timber floor battensPrimary

Specification data - Insulating timber floor battens

Product Reference

Danskin Park Bearers, incorporating resilient foam strip

Overall height

31 mm

45 mm

49 mm

54 mm

61 mm

70 mm

Accessories

None

Perimeter flanking strip

Standard product features

Size:

47 mm nominal width x 1800 mm long softwood battens, with a 9 mm resilient foam strip adhered to the underside available in standard heights from 31 mm to 70 mm.

Alternative sizes can be supplied on request.

Product Options

Danskin Acoustic Flanking Strip:

5 mm thick acoustic foam supplied in rolls 75 m long, designed for placing around the floor perimeter to prevent airborne sound leakage. The standard height is 100 mm but increases for high floor elevations.

Bearers can be preservative treated where required.
