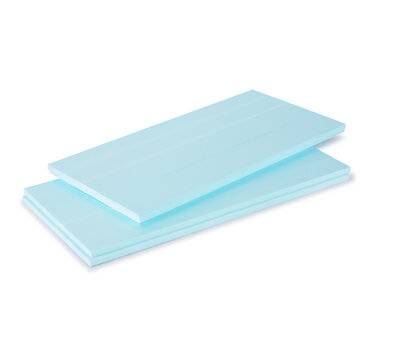

Danopren TR 40/ 50/ 60/ 80/ 100 - XPS Board
Verified by manufacturer 8 hours ago
Danopren TR 40
Danopren TR 40
BBA Agrément Certificate
Certificate type
Rigid extruded polystyrene (XPS) foam board for thermal insulation of flat roofs and floors.
Application
- Thermal insulation for flat roofs, both conventional and inverted.
- Thermal insulation for residential and commercial overloaded floors.
Description
Danopren TR is a rigid extruded polystyrene (XPS) foam board with shiplap edges at various thicknesses. Manufactured without CFCs, HCFCs or HFCs.
Features and benefits:
- Long-term low level of water absorption.
- High long-term compressive strength.
- Easy and safe handling: they are light, do not irritate the skin, do not release dust, and maintain their physical integrity.
- Have a durability equal to the useful life of the building in which they are incorporated.
- Can be installed over the waterproofing membrane, protecting it from mechanical damage and thermal shocks, according to the 'inverted roof' concept.
General information
Color | Blue |
Material | Extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 1250 mm |
Width | 600 mm |
Height | 40 mm 50 mm 60 mm 80 mm 100 mm |
Uniclass | |
CAWS | J42/27 Thermal insulation J42/415 Extruded polystyrene (XPS) insulation J41/26 Thermal insulation J21/25 Warm deck roof insulation Q37/310 Inverted roof insulation J31/332 Extruded polystyrene (XPS) insulation J31/26 Thermal insulation J21/415 Extruded polystyrene (XPS) insulation J41/415 Extruded polystyrene (XPS) insulation |
SKU Code | 484003 |
Specification data - Extruded polystyrene (XPS) boards
Classification data | |
Standard | To EN 13164. |
Third-party certification | British Board of Agrément (BBA) certification. Environmental Performance Declaration (EPD). |
Fire performance | Reaction to fire to EN 13501-1, Class E. |
Compressive strength (minimum) at 10% compression | 300 kPa. |
Thermal conductivity (maximum) | 0.033 W/m·K. |
Water permeability | ≤0.7%. Manufacturer guidanceWater absorption by total immersion. |
Water vapour permeability | ≥80 μ. Manufacturer guidanceWater vapour diffusion resistance factor. |
Thickness | 40 mm. |
Face size (length x width) | 1250 x 600 mm. |
Edges | Shiplap. |
Thermal resistance | 1.20 m²·K/W. |
Density | 32 kg/m³. |
Sustainability data
Material | Extruded polystyrene (XPS) |
Product certifications
BBA Agrément Certificate
DANOPREN TR and DANOPREN 500 Inverted Roof Insulation BBA 19/5704
Literature
Danosa - DANOPREN TR _ 100mm
Danosa - DANOPREN TR _ 40mm
Danosa - DANOPREN TR 60mm
Danosa - DANOPREN TR _ 50mm
Danosa - DANOPREN TR _ 80mm
