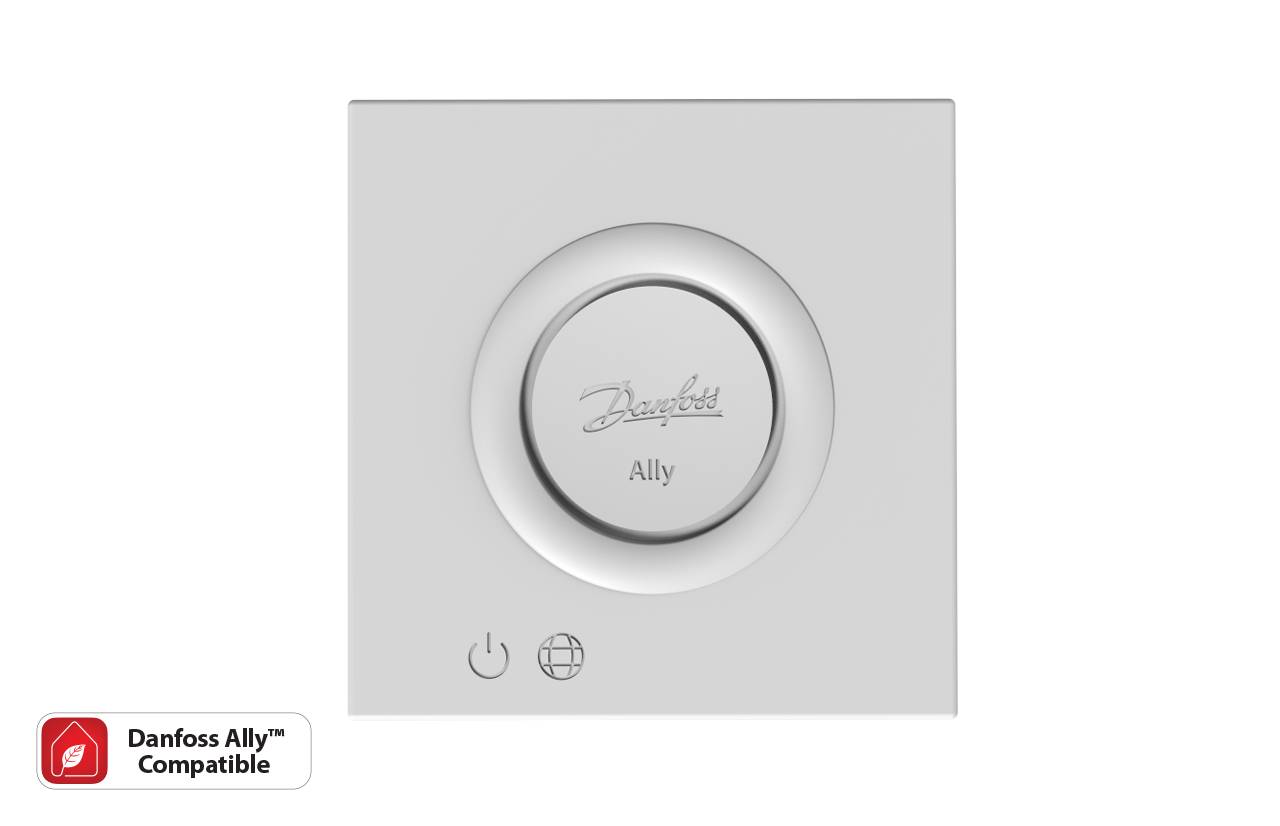

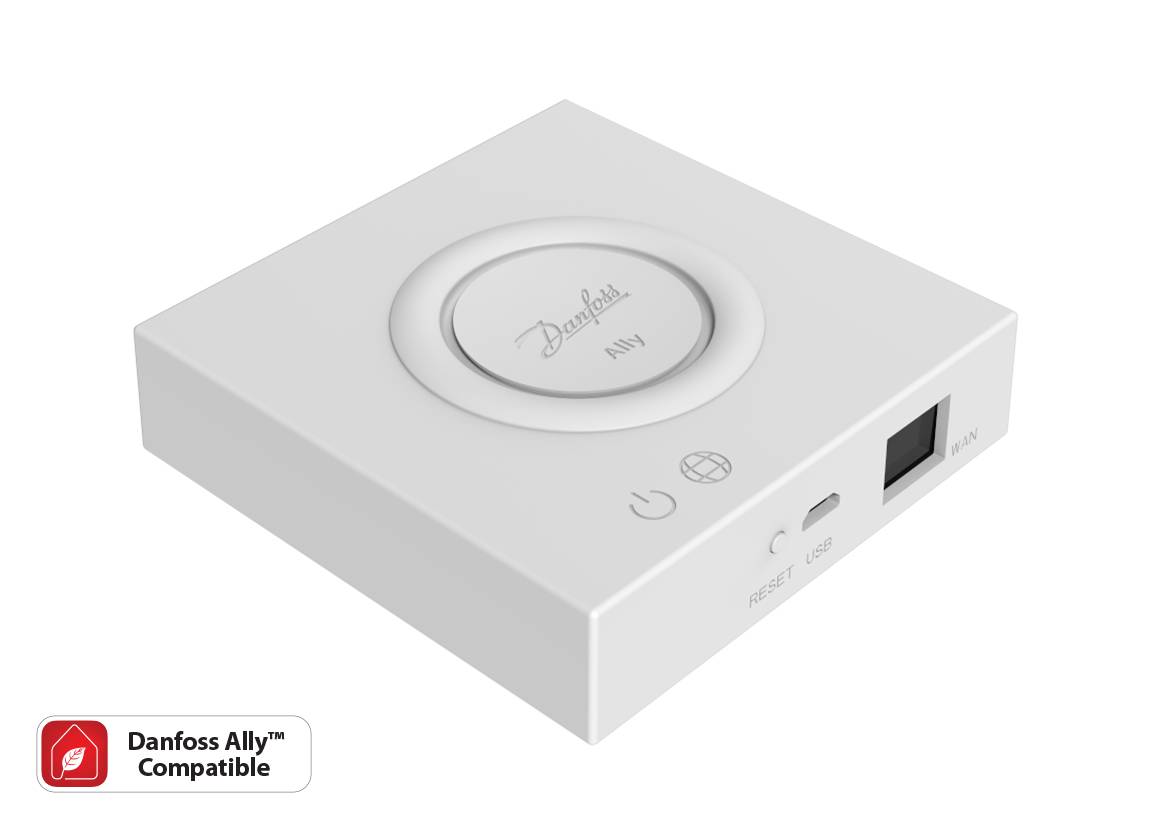

Danfoss Ally™ Gateway - Wireless Control System

Verified by manufacturer 5 days ago

Danfoss Ltd

A programmable, wireless control system that connects all the Danfoss Ally™ devices to the internet and controls your heating via an app.

Jump to:
+44 (0) 7842406202 Website

Application

  • For use with Danfoss Ally™ devices to control radiators and water-based floor heating.
  • Suitable for residential indoor use.

Description

The Danfoss Ally™ Gateway is a programmable, wireless control system that connects all the Danfoss Ally™ devices to the internet and controls your heating via a free app downloadable from Google Play and App Store. The power supply and LAN cable for the internet connection are included.

Features and benefits:

  • Controls the daily heating schedule for every room, allowing quick and easy adjustments to be made.
  • The pre-heat function is used to ensure you have the right temperature when you want it. When pre-heat function is on, it means that, it is ramping up to the next scheduled at home mode.
  • The Danfoss Ally™ Gateway software is automatically updated from the internet.

General information

Color

White

Shape

Square

Length

95 mm

Width

95 mm

Height

23 mm

Uniclass

Pr_75_51_17_89 Time switchesPrimary

CAWS

T90/480 Programmers

SKU Code

014G2400

GTIN/EAN

5702424056544

Specification data - Time switches

Third-party certification

CE marked.

Equipment interconnectivity

Radio-linked.

Format

Electronic digital.

Programme selection

Via app.

Programming method

Remotely via a separate device.

Display

Power/ status and network connection via LEDs.

Functions

Manual mode; Away mode; At home mode; Heating schedule; Pre-heat.

Special features

Time switch to be internet connected to allow remote control of functions including program amendments via mobile apps compatible with third-party smartphones and tablets.

Manufacturer guidance

Compatible with Amazon Alexa, Google Assistant, and Partner API.

Voltage rating

-

Time switch

5 V d.c.

Ancillary equipment

110 V ~ 240 V a.c., 5 V 1A d.c. (adaptor).

Enclosure

-

Mounting type

Surface.

Mounting arrangement

Free-standing.

Ingress protection (minimum)

IP20.

Operating temperature (minimum)

-10°C.

Operating temperature (maximum)

55°C.

Communications

Wired: 10/100M ethernet port (RJ45, LAN).
Wireless: Zigbee/ IEEE 802.15.4.
