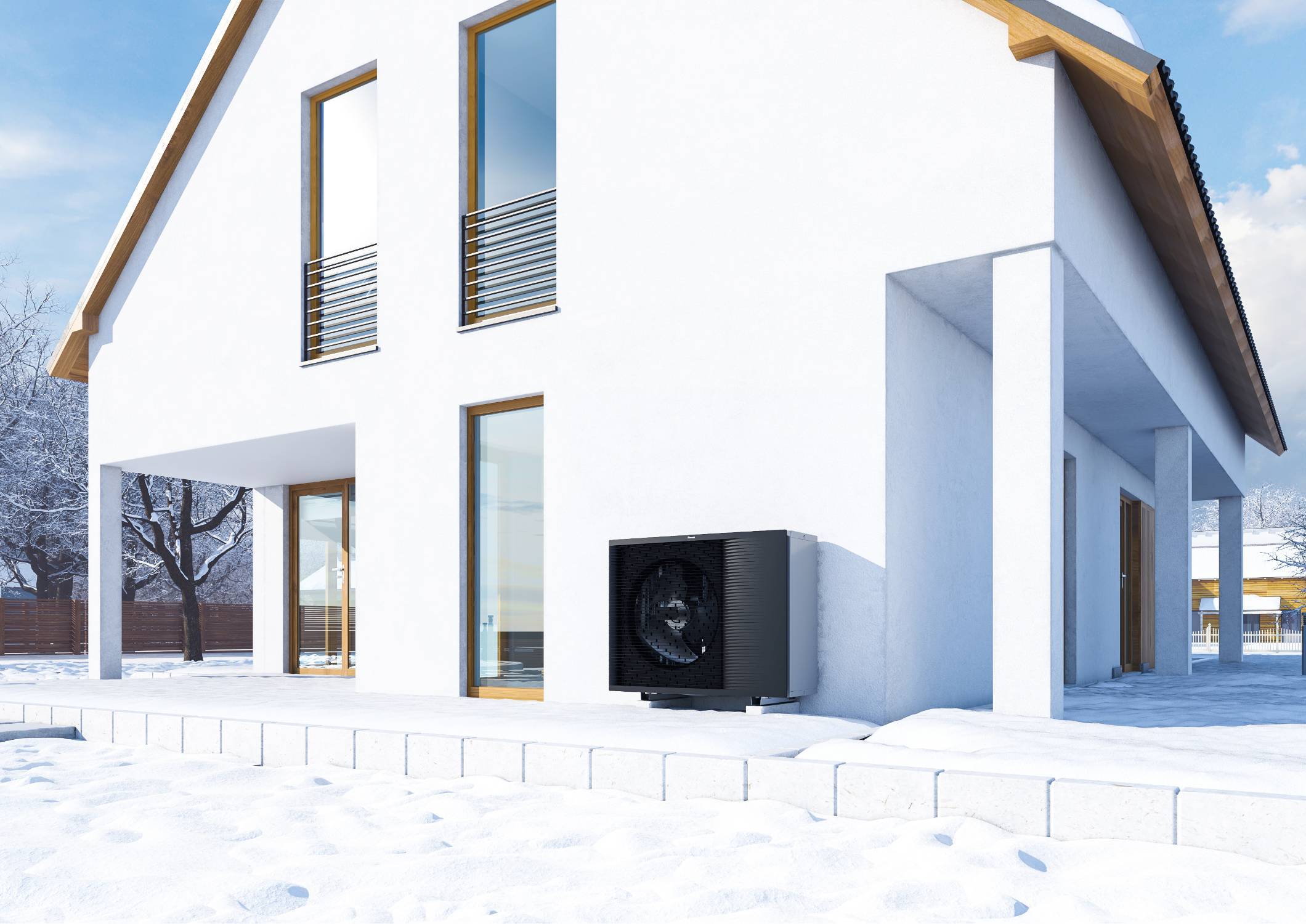

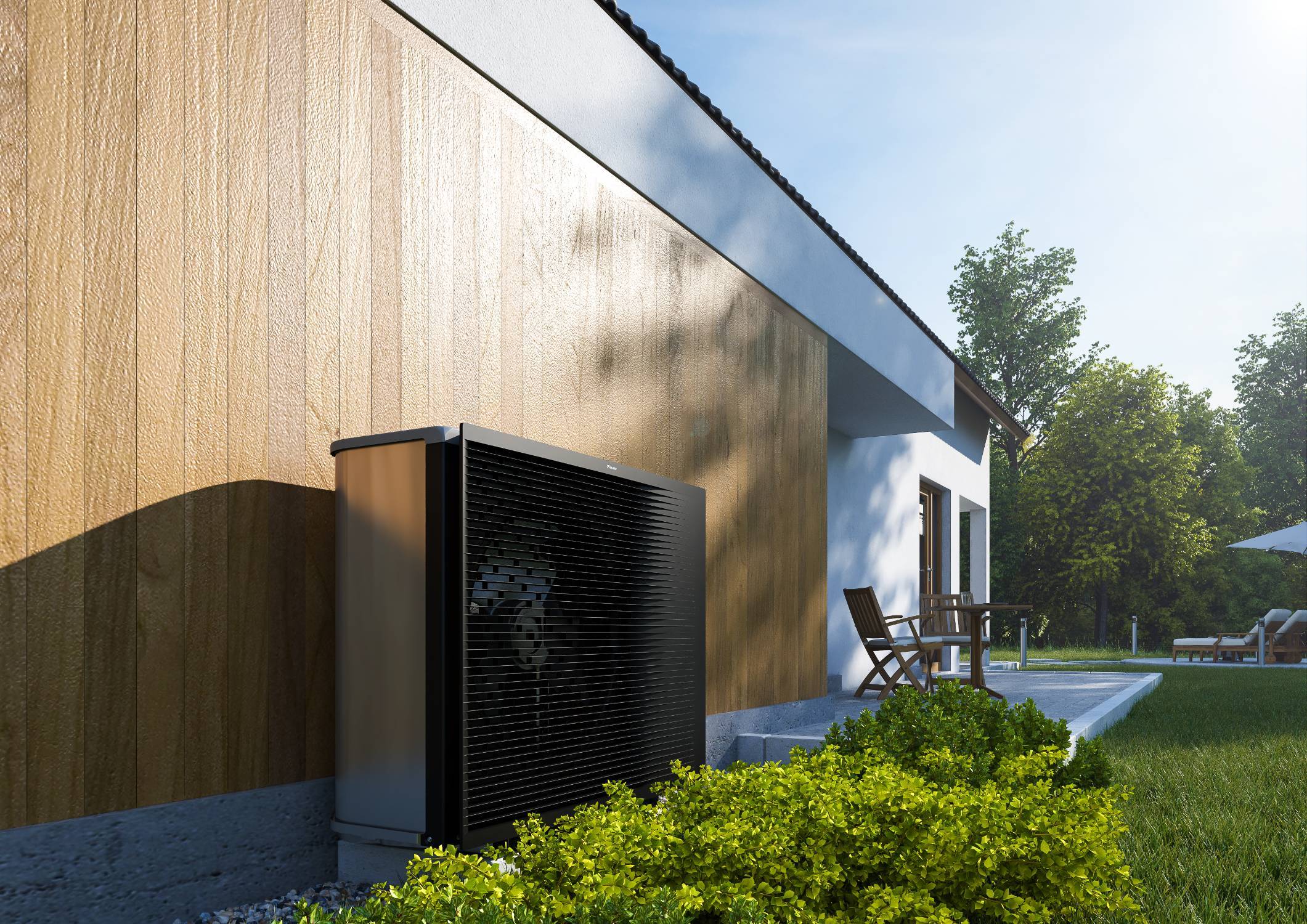

Daikin Altherma High Capacity H HT Heat Pump EPRA-DW1/V3 (Sizes 14-16-18) - Heating system
Verified by manufacturer 3 months ago
ETBH16E6V + EPRA14DV3
ETBH16E6V + EPRA14DV3
Quiet Mark Certification
Certificate type
Quiet Mark certified high capacity, high temperature air-to-water heat pump.
Application
Suitable for use in domestic applications, specifically designed for the renovation market.
Description
A high temperature air-to-water heat pump for heating, cooling and domestic hot water. It has been designed for lower acoustic levels to meet the needs of urban areas and homeowner expectations.
Features both an indoor and outdoor unit.
Features and benefits:
- R-32 Bluevolution technology reduces environmental impact due to its high energy efficiency and low refrigerant charge.
- Leaving water temperature of 70C down to -15C outdoor.
- All hydraulic components accessible from the top.
- Designed to withstand the coldest climate conditions (to -28°C).
- Outdoor unit has a sleek design, making it an aesthetically pleasing solution.
- Available with an integrated water tank.
- Wall mounted or floor standing indoor options.
- Suitable for boiler replacement.
- Easy and quick installation.
- Pre-fitted with the cloud and app control functionality.
- Quiet Mark certified, operating at quiet levels for maximum acoustic comfort.
For full technical information, consult manufacturer's literature.
Components:
- EPRA014-018DV - Single fan outdoor unit. Extracts heat from the outdoor air, down to -28°C.
- ETBH16E6V/9W - Indoor wall mounted heating only air to water heat pump.
- ETBX16E6V/9W - Indoor wall mounted reversible heating and cooling air to water heat pump.
- ETVH16S18E6V and ETVH16S23E6V - Indoor floor standing heating only unit including an 180 L or 230 L domestic hot water tank.
General information
Color | Silver Black White Manufacturer guidance
|
Material | Steel Guidance for specification option: Polyester painted galvanised steel plate (EPRA14-16DV3). Resin Guidance for specification option: Resin sheet material (ETBH16E6V, ETBH16E9W, ETBX16E6V, ETBX16E9W). |
Shape | Rectangle |
Length | Manufacturer guidanceDependent on unit specified, see specification data for details. |
Width | Manufacturer guidanceDependent on unit specified, see specification data for details. |
Height | Manufacturer guidanceDependent on unit specified, see specification data for details. |
Uniclass | |
CAWS | T90/505 Air-to-water heat pumps T90/505 Air-to-water heat pumps |
Specification data - Air-to-water heat pumps
Standards | |
Test requirements | To BS EN 14511. |
Heat pump type | Split. |
Mode | Heating. |
Coefficient of performance (minimum) | 4.67 kW.Guidance for specification option: Condition: Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C). |
Output | |
Heating | 5.69 kW (nominal).Guidance for specification option: Condition: Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C). |
Fan | |
Type | Propeller. |
Fan drive | Direct. |
Configuration | Horizontal. |
Electrical supply type | Single phase.Guidance for specification option: 230 V/ 50 Hz. |
Compressor | |
Type | Scroll. |
Sealing | Hermetically sealed. |
Drive | Inverter driven. |
Refrigerant | R32.Guidance for specification option:
|
Unit dimensions | 1003 x 1270 x 533 mm (EPRA14DV3); 840 x 440 x 390 mm (ETBH16E6V). Manufacturer guidanceHeight x width x depth. |
Unit weight | 146 kg (EPRA14DV3); 38 kg (ETBH16E6V). |
HeatingWaterFlowRate | 16.3 L/min. Guidance for specification option: Condition: Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C). Manufacturer guidanceWater side heat exchanger water flow rate. |
Sound | To EN14825, 54.0 dB(A) (outdoor); 44.0 dB(A) (indoor). Manufacturer guidanceSound power level. |
Air flow | 3918 m³/h. Manufacturer guidanceAir to water unit rated airflow (outdoor). |
Integral accessories | Integrated back up heater, 6 kW (2 step). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Third party certifications
Quiet Mark Certification
Daikin ASHP Quiet Mark Certificate
