Dacatie DF100 Frame Former - Insulated Frame Former

Name: Dacatie DF100 Frame Former - Insulated Frame Former
Brand: Dacatie Building Solutions, product brand of Quantum Profile Systems Ltd
SKU: 8YLUWvEu9qQffqrxjz8JpV

Verified by manufacturer 4 days ago

Dacatie Building Solutions, product brand of Quantum Profile Systems Ltd

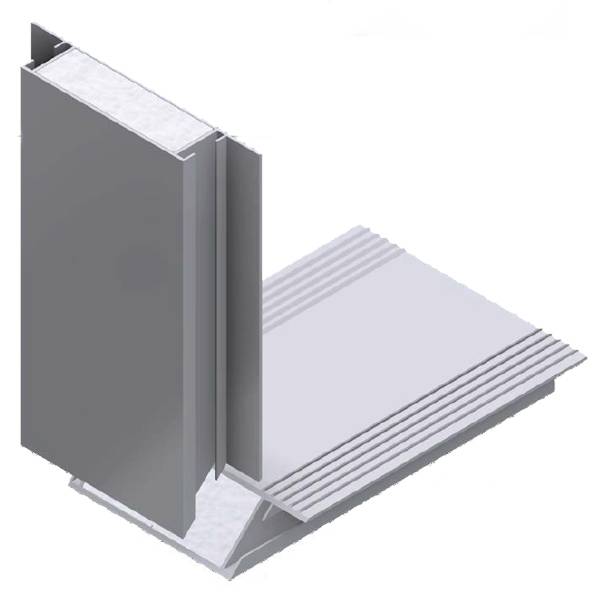

A fully insulated frame former.

Jump to:

+44 (0)161 627 4222 Website

Application

DF/DFP consists of a rigid PVC-U profile containing EPS insulation forming a continuous insulated cavity closer around door and window openings, preventing cold bridging.

Description

Dacatie DF/DFP Frame Formers are suitable for use with all window and door frames, including timber, PVC-U and aluminium. Available in two profiles: DF for cavity widths of 100 mm, and DFP (for internal fixing) for cavity widths of 125–150 mm.

A fully insulated cavity closer made up into a sturdy, factory built frame former saves time by eliminating the need for site fabricated timber templates around window and door reveals.

All Dacatie products are manufactured to ISO9001 and ISO14001 standards. All Dacatie products are chlorofluorocarbon (CFC) and hydrochlorofluorocarbon (HCFC) free, have zero ozone depletion potential (ODP) and low global warming potential (GWP).

Features and benefits:

Easy to install.
Compatible with all window and door materials.
Suitable for brick & block and timber frame construction.
Reduces risk of condensation, mold, and moisture migration across the cavity.
Acts as a DPC (Damp Proof Course).
Available in a wide range of widths for standard or check reveal cavities.
Complies with Part L Building Regulations when the window is installed with a minimum set back of 30 mm.
Model D200FR, fire-rated up to 30 minutes integrity, available for cavities.

General information

Material	PVC-U Guidance for specification option: Non water-absorbing unplasticized polyvinyl chloride (PVC-U) with recycled content. Expanded polystyrene (EPS)
Shape	Rectangle
Length	4500 mm
Width	140 mm
Warranty description	Ten year

Uniclass	Pr_35_90_50_64 Plastics cavity closersPrimary
CAWS	F30/18 Cavity closers F30/180 Cavity closers

SKU Code	DF100

Specification data - Plastics cavity closers

Classification data
Third-party certification	NHBC approved, Robust Detail BR262 and compliance with Building Regulations (E&W) Approved Document L (2010). BBA Agrement 98/3474.
Accessories	CDF100 Check reveal. Guidance for specification option: 100 mm cavity width. Size: 120 x 50 mm.
To fit cavity width	100 mm.
Length (effective)	4500 mm.
Material:	PVC-U. Guidance for specification option: Non water-absorbing unplasticized polyvinyl chloride (PVC-U) with recycled content.
ThermalConductivity	0.038 W/m·K.
Thermal resistance (R-value)	0.658 m²K/W.
Global warming potential (GWP)	<5.
Ozone depletion potential (ODP)	Zero.
Green guide rating	A+.
Thermal transmittance (U-Value)	0.022 W•m-1•k-1.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom Guidance for specification option: Britain.
Material	PVC-U Guidance for specification option: Non water-absorbing unplasticized polyvinyl chloride (PVC-U) with recycled content. Expanded polystyrene (EPS)
Recycled content As defined in clause 7.8 of BS EN ISO 14021	50 %
