Dacatie TF1000 / TF2000 Insulated Cavity Closer for window and door reveals

Verified by manufacturer 3 months ago

TF1000 Cavity Closer 50

Dacatie Building Solutions, product brand of Quantum Profile Systems Ltd Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

A versatile insulated cavity closer for cavities between 50 and 100 mm (5 mm increments), suitable for first or second fix applications, with check reveal options available.

Jump to:
+44 (0)161 627 4222 Website

Application

Suitable as cavity closer for cavities between 50–100 mm (TF1000) and 110–160 mm (TF2000), for first or second fix applications, with check reveal options available.

Description

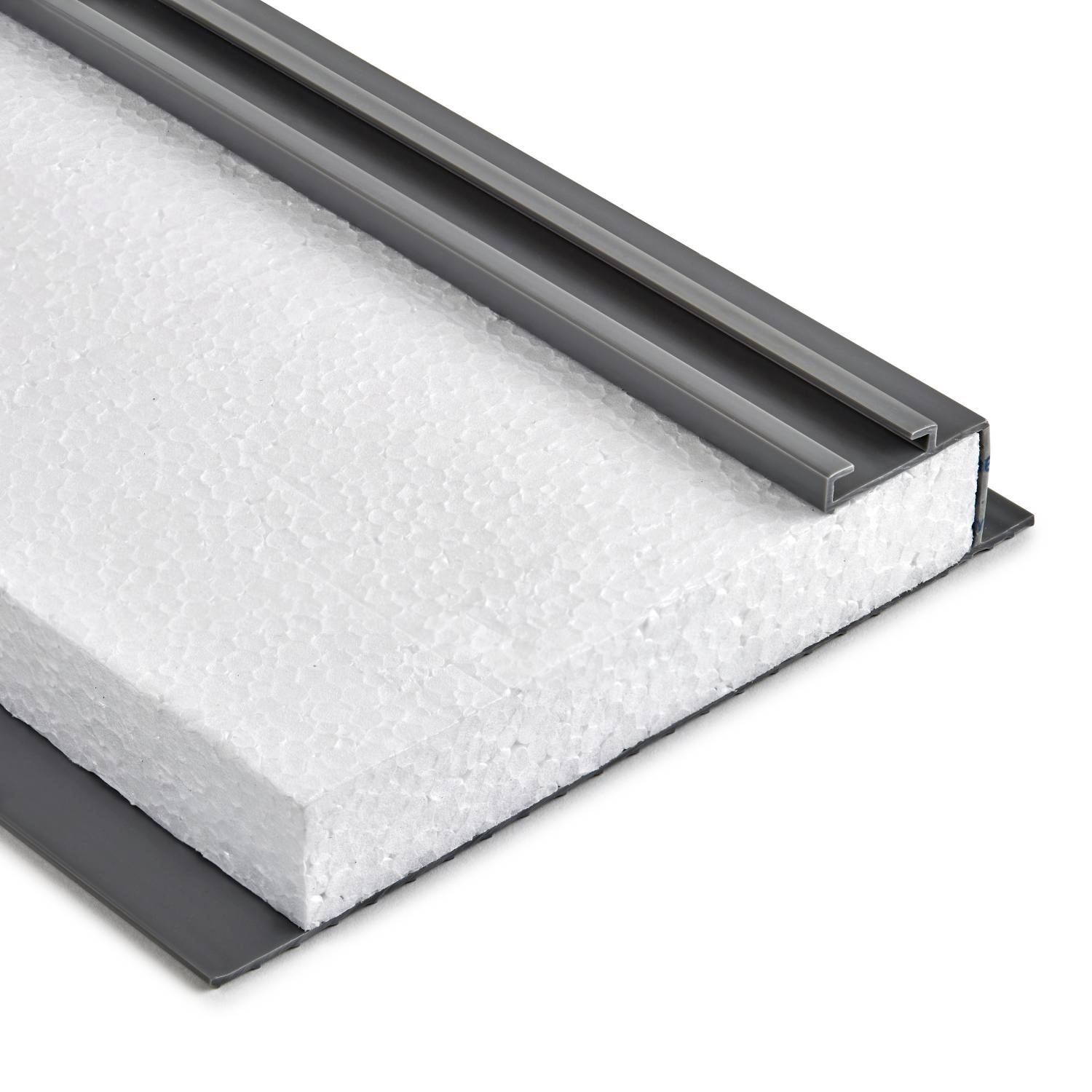

A versatile insulated cavity closer for cavities between 50–100 mm (TF1000) and 110–160 mm (TF2000). Used with DTU ties every 225 mm (100 ties per pack).

All Dacatie products are manufactured to BS ISO9001 Quality Management and ISO14001 Environmental standards. All Dacatie products are chlorofluorocarbon (CFC) hydrochlorofluorocarbon (HCFC) free, have zero ozone depletion potential (ODP) and low global warming potential (GWP).


Features and benefits:

  • 100% made in Britain.
  • Accepts all window and door frame materials.
  • Insulation is zero rated for ozone depletion potential (ODP).
  • XPS insulation has a thermal conductivity of 0.032 W/m·K.
  • Compliance with Building Regulations (E&W) Approved Document L (2010).
  • Green Guide Rating A+.
  • Robust Detail BR262.
  • National House Building Council (NHBC) approved.
  • Prevents water ingress.
  • Minimizes thermal bridging around reveals.
  • Six lengths per pack.

General information

Color

White

Finish

Other

Material

PVC-U

Guidance for specification option:

Carrier.

Wool

Guidance for specification option:

Fire rated mineral wool insulation.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

25 mm

Warranty description

Ten year

Uniclass

Pr_35_90_50_64 Plastics cavity closersPrimary

CAWS

F30/18 Cavity closers

F30/180 Cavity closers

Specification data - Plastics cavity closers

Third party certification

British Board of Agrément, BS ISO 9001, ISO 14001, NHBC approved, Compliance with Building Regulations (E&W) Approved Documents L (2010), Part L (2013 amend) Conservation of fuel and power, Part C (2010) Resistance to contaminants and moisture.

To fit cavity width

50 mm.

Length (effective)

2100 mm.

3100 mm.

Manufacturer guidance

Six lengths per pack.

Material:

Carrier: PVC-U, Insulation: Fire rated mineral wool.

ThermalConductivity

0.032 W/m·K.

Thermal resistance (R-value)

0.781 m²K/W.

Global warming potential (GWP)

Zero.

Ozone depletion potential (ODP)

Zero.

Green guide rating

A+.

Weather resistance

Severe weather rating.

Guidance for specification option:

Standard, with 30 mm set back.

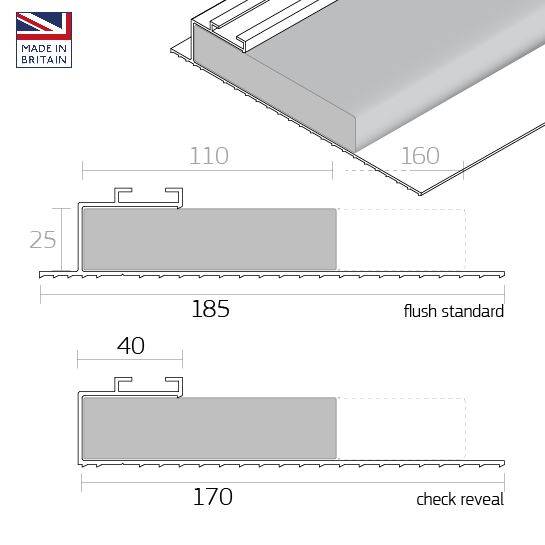

Dimensions

185 x 25 x 2100 mm.

185 x 25 x 3000 mm.

Manufacturer guidance

  • Cavity width: 5 mm intervals between 50–160 mm are available.
  • Over 160 mm are made to special order.


Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Guidance for specification option:

Britain.

Material

PVC-U

Guidance for specification option:

Carrier.

Wool

Guidance for specification option:

Fire rated mineral wool insulation.
