D400 HDPE Channel Drainage
Verified by manufacturer 7 months ago
CD D10-210-6P (6 x 90 mm slot size)
CD D10-210-6P (6 x 90 mm slot size)

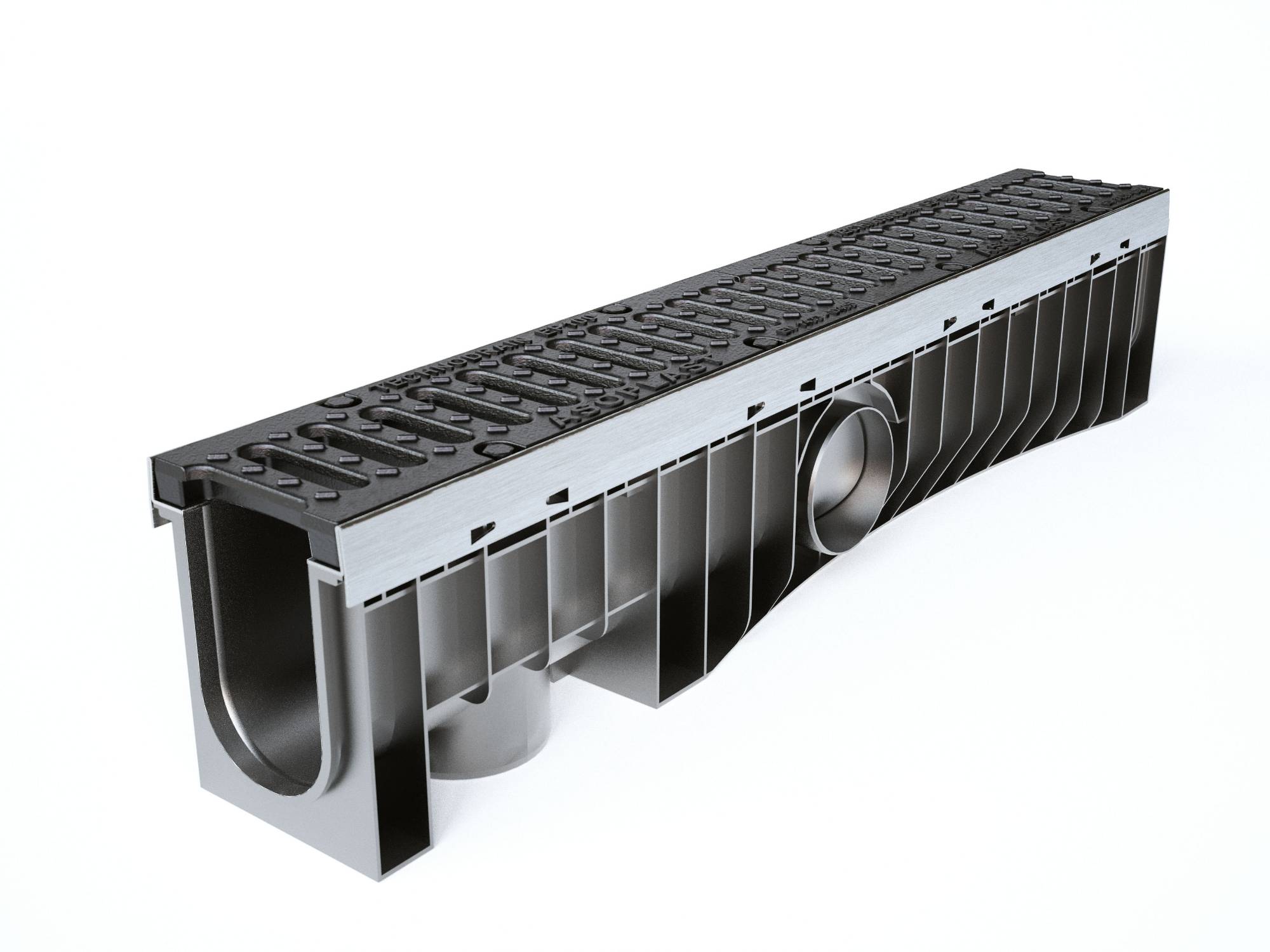

High density polyethelene (HDPE) linear drainage channel.
Application
Drainage channel for heavy duty applications and high traffic areas.
Description
A heavy-duty, but lightweight, drainage channel with steel edge and ductile iron gratings.
Features and benefits:
- Lightweight.
- Locking gratings (eight M8 bolts per grating).
- Resistant to a wide range of acids, salts and hydrocarbons.
General information
Color | Black Grey |
Material | Iron High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 1000 mm |
Width | 158 mm 208 mm 258 mm |
Height | 210 mm 310 mm |
Warranty description | Other Guidance for specification option: No warranty |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/180 Drainage channel systems with gratings |
SKU Code | CD D10-210-6P, CD D10-210-18P, CD D15-210-18P, CD D20-210-18P, CD D20-310-18P |
Specification data - Drainage channels with gratings
Classification data | |
Standard | EN 1433, Type M, CE Certified. |
Material | High density polyethelene (HDPE). |
Gratings | |
Material | Ductile iron. |
Form | Slotted, 6 x 90 mm slot size, two 500 mm lengths. |
Load class (minimum) | D400 (40T). |
Channel unit dimensions | |
Width (nominal) | 158 mm. Guidance for specification option: 100 mm internal width. |
Depth (nominal) | 210 mm. Guidance for specification option: 150 mm internal depth. |
Length | 1000 mm. |
OutletDiameter | Two 110 mm side outlets, one 110 mm vertical outlet. |
Drainage capacity | 8.25 L/s. Guidance for specification option: 372 cm² waterway area. |
Weight | 15 kg. |
Sustainability data
Contains Red List materials | No |
Recyclability | 100% Guidance for specification option: Recyclable at end of life. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: 100% recycled PE. |
