D340 Drain Taps
Verified by manufacturer 2 months ago
DN15
DN15
A brass draining tap.
Application
Suitable for use on hot and cold water up to 16bar, at temperatures up to 110°C.
Description
A brass draining tap.
Features and benefits:
- Integrated shroud gives a tamper resistant design.
- DZR Brass draining taps are suitable for use on hot and cold water up to 16bar, at temperatures up to 110°C.
- Enables system to be drained without removing pipework.
- The inlet is a threaded taper male connection to BS EN 10226-2.
- The outlet is ribbed for hose connection.
- WRAS Approved up to 85°C.
General information
Specification data - Draining taps
Standard | To BS EN 10226-2, BS EN 12165, BS EN 12164 and BS 2879. |
Size | DN15. |
Arrangement | Type 2. |
Material | DZR Brass BS EN 12165 CW602N, Brass BS EN 12164 CW614N, EP80 (EPDM-WRAS Approved) and EP70 (EPDM-WRAS Approved).Guidance for specification option: Body, Stem, Bonnet, Disc holder, Nut (1" only): Brass; Rubber seat, Stem packing: EPDM. |
Connections | Threaded joints to BS EN 10226-2 (taper). |
Length | 53.5 mm. |
Weight | 0.13 kg. |
OperationTemperatureRange | 0 to +110°C. |
Pressure | 16 BAR. |
Operator | Lockshield. |
Approvals | WRAS approved. Guidance for specification option: Up to 85°C. |
Sustainability data
Material | Brass |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
Literature
D340 Drain Taps - TM65-CRANE-D340-DN15

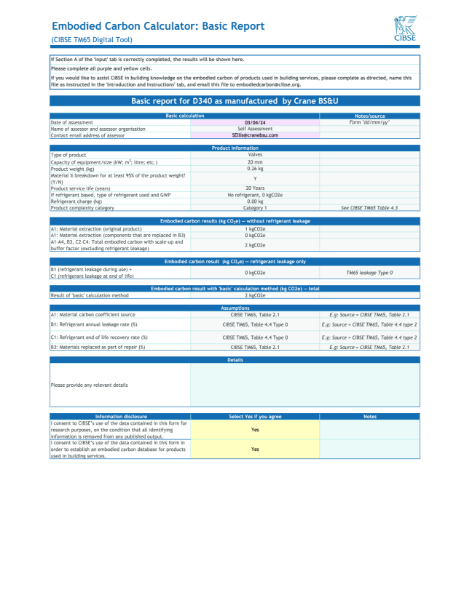

D340 Drain Taps - TM65-CRANE-D340-DN20
D340 Drain Taps - TM65-CRANE-D340-DN25
