D2003 Automatic Air Vents & D2004 Automatic Air Vents with Shut Off Valve
Verified by manufacturer 1 month ago
D2003 DN10
D2003 DN10
A brass automatic air vent.
Application
Suitable for use where pipelines need trapped air vented.
Description
A brass automatic air vent.
Features and benefits:
- Removes inevitable potentially dangerous air trapped in system.
- Simplifies the venting process.
- Saves time and costs.
- WRAS approved for closed circuit use only.
- Conforms to design standard BS EN 1074-4.
- A shut-off valve option is available in size DN15. Please specify when ordering D2004.
- D2004 version with shut-off valve base allows the automatic air vent to be removed without draining the system.
General information
Specification data - Automatic air vents
Material | Brass EN12165 - CW617N, Brass EN 1982 - CC754S, Plastic polyamide PA6 GF30%, Plastic ACETAL, Brass EN 12164 - CW614N, Plastic PTFE, Rubber EPDM, Stainless Steel EN 10270-3 - 1.4310, Rubber NBR, Plastic polypropylene and Stainless steel AISI 302-EN 10270-3 NS.Guidance for specification option: Body, Cover, Seat, Body isolation valve: Brass; Plug, Piston, Gasket, Separating, lever, Float, Hooking system: Plastic; O-Ring, Seat gasket: Rubber; Spring: Stainless steel. |
Connections | Threaded. |
Inlets/outlets diameter | DN10. |
Dimensions | 46 x 70.5 mm. Manufacturer guidanceRefer to technical datasheet for detailed dimensions. |
Weight | 0.146 kg. |
Operating temperature range | -10 to +110°C. |
Pressure | 10 BAR. Guidance for specification option: Maximum discharge pressure: 7 BAR. |
Approvals | WRAS approved. Guidance for specification option: For closed circuit use only. |
Sustainability data
Country of product manufacture | Europe |
Material | Brass |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
Literature
D2003 Automatic Air Vents & D2004 Automatic Air Vents with Shut Off Valve - TM65-CRANE-D2003-DN10
D2003 Automatic Air Vents & D2004 Automatic Air Vents with Shut Off Valve - TM65-CRANE-D2003-DN15
D2003 Automatic Air Vents & D2004 Automatic Air Vents with Shut Off Valve - TM65-CRANE-D2003-DN20
D2003 Automatic Air Vents & D2004 Automatic Air Vents with Shut Off Valve - TM65-CRANE-D2003-DN25

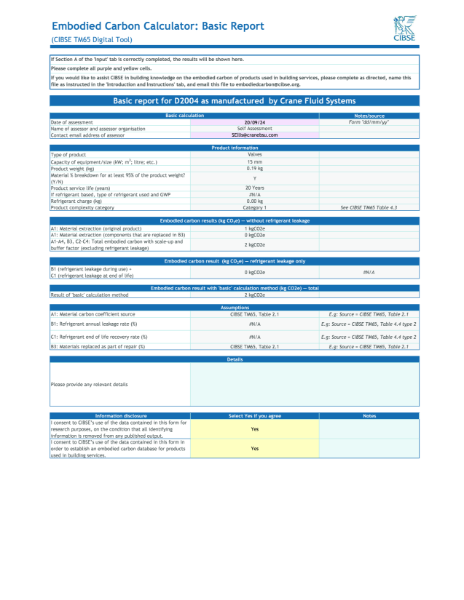

D2003 Automatic Air Vents & D2004 Automatic Air Vents with Shut Off Valve - TM65-CRANE-D2004-DN15
