d line Spigot Fixing - Baluster system

Verified by manufacturer 1 month ago

Q-railing Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

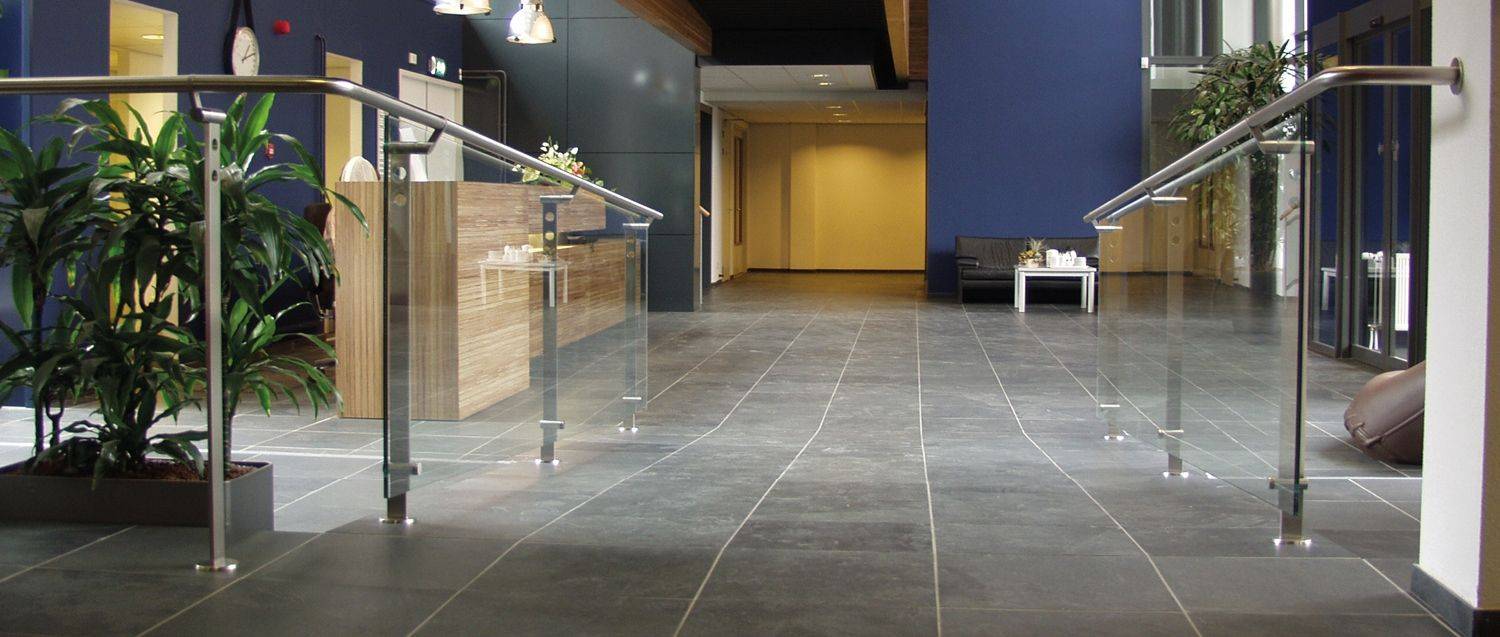

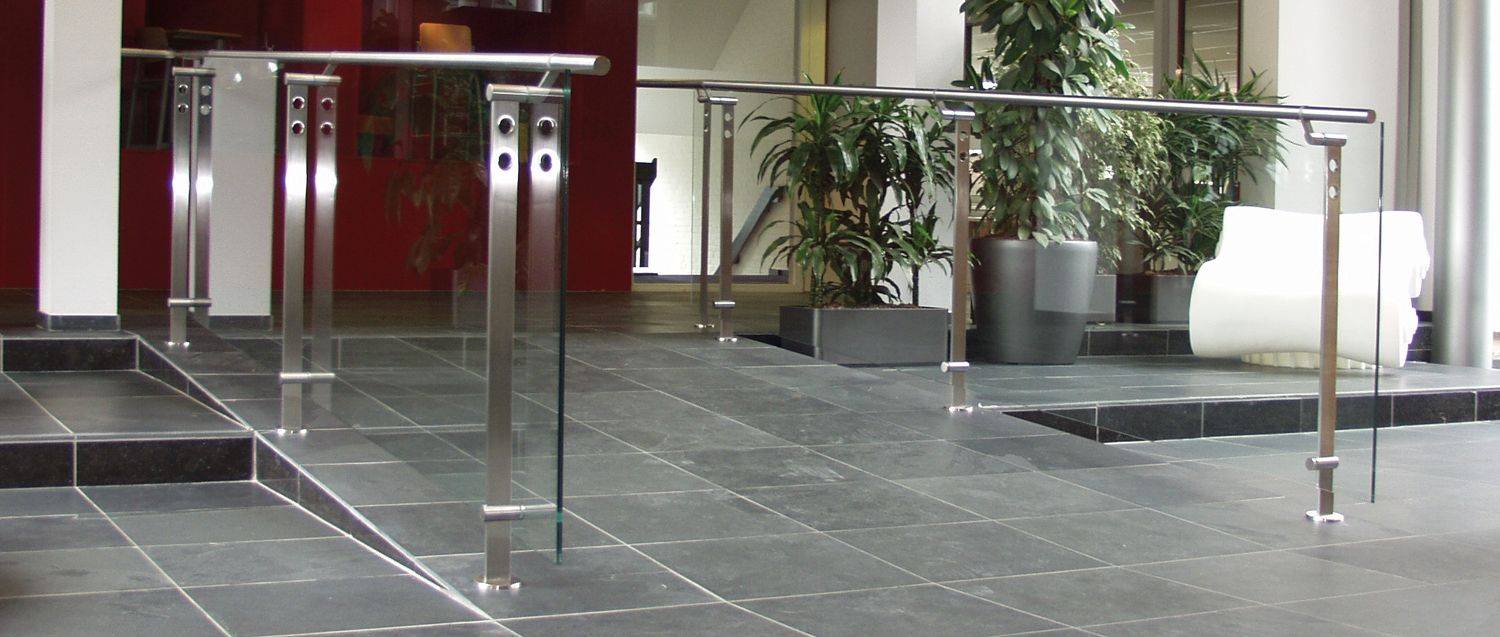

Vertical baluster system using a minimalistic glass clamp arrangement that sets panels side-by-side.

Jump to:
+44 (0)1782 711676 Website

Application

Suitable for heavy-duty indoor and outdoor use on stairs and balustrades.

Description

Vertical baluster system using a minimalistic glass clamp arrangement that sets panels side-by-side.


Features and benefits:

  • Seamless finish – sleek aesthetics, combined with functionality and safety.
  • Low maintenance; does not readily corrode, rust or stain.
  • Includes a d line handrail.
  • Glass thickness: 10–25.52 mm.
  • In-floor mounting.
  • No visible screws.
  • Modular connectors eliminate the requirement for welding or on-site fabrication.
  • Balusters available in 1200 and 1400 mm heights and as intermediate or end posts.
  • Horizontal, uniformly distributed line load; uniformly distributed load applied to infill; point load to infill testing is available.
  • Manufactured from external grade 1.4401 (316) stainless steel.
  • Also available with a spider-like glass adapter (d line Spigot Fixing Glass Link; specified separately).

General information

Color

Silver

Material

Stainless steel

AISI 1.4401 (316).

Glass

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Uprights

Stainless steel AISI 1.4401 (316).

Intermediate and end posts, 1200 mm.

Height (above ground, to top of handrail): 1144 mm.

Intermediate and end posts, 1400 mm.

Height (above ground, to top of handrail): 1344 mm.

Intermediate posts only, 1200 mm.

Height (above ground, to top of handrail): 1144 mm.

Intermediate posts only, 1400 mm.

Height (above ground, to top of handrail): 1344 mm.

Infills

Glass, 10–25.25 mm thick.

Insert details of glass required, including type and thickness.

Rails

-

Handrails

Stainless steel AISI 1.4401 (316), d line.

Consult manufacturer for options and insert requirements.

Where additional handrails are required e.g. attached to walls, see Accessories.

Fixing to parent structure

Mounted into substrate; consult manufacturer for options and insert requirements.

Accessories

None.

Bend 38 mm diameter for 45° 450 x 450 mm.

Cover for posts fixed directly down onto concrete floor.

Tail end 32° 38 mm diameter.

Tail straight 38 mm diameter.

Show more

Environmental information

Contains Red List materials

No

Recyclability

100%

Literature

Q-railing balustrades - architects brochure

Q-railing balustrades - architects brochure

Systems Brochure

Systems Brochure

Q-DESIGNS D LINE ARCHITECTS BROCHURE

Q-DESIGNS D LINE ARCHITECTS BROCHURE

Third party certifications

BSI Kitemark

BSI Kitemark

Certificate: KM 656489
