d-line Blok Fixing Full Glass

Name: d-line Blok Fixing Full Glass
Brand: nLrsik6myTTvdPZAf68X9M
SKU: 5Lci6aGBiitMgRsLK4D5jW

Q-railing

d-line handrail modular railing system.

Jump to:

+44 (0)1782 711676 www.q-railing.com

Application

Suitable for heavy indoor and outdoor use for stairs and balustrades.

Description

Modular handrail railing system. Through the balanced ratio of glass and 1.4401 (316) grade stainless steel, d-line offers good aesthetics and durability.

Features and benefits:

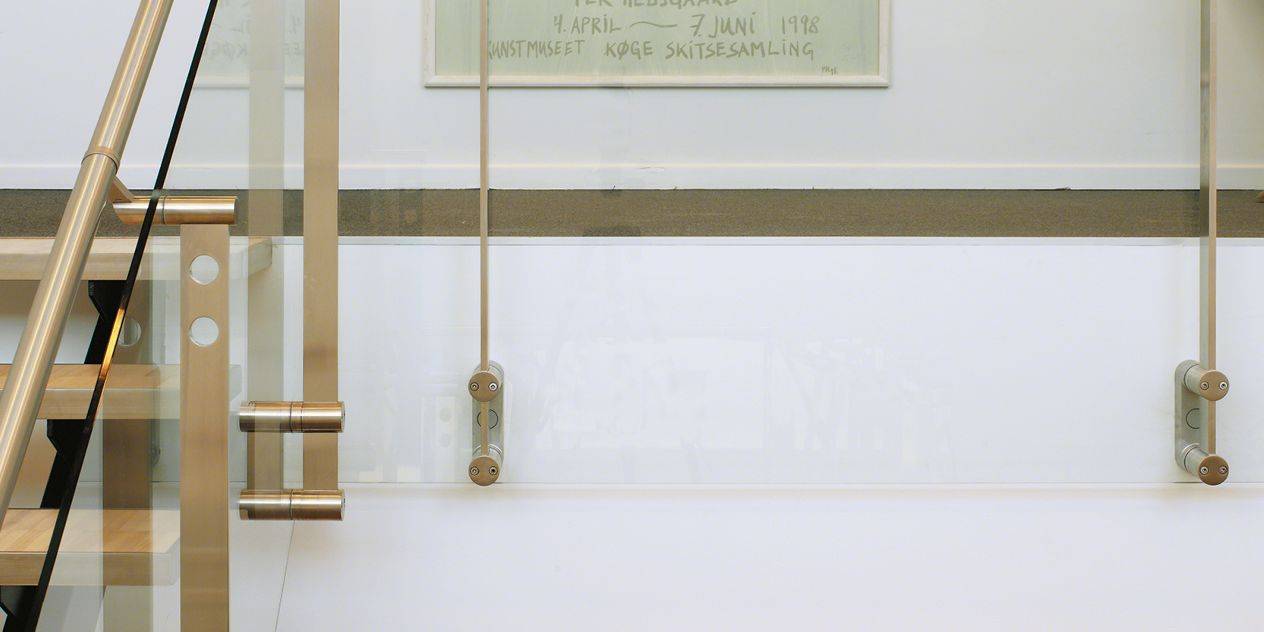

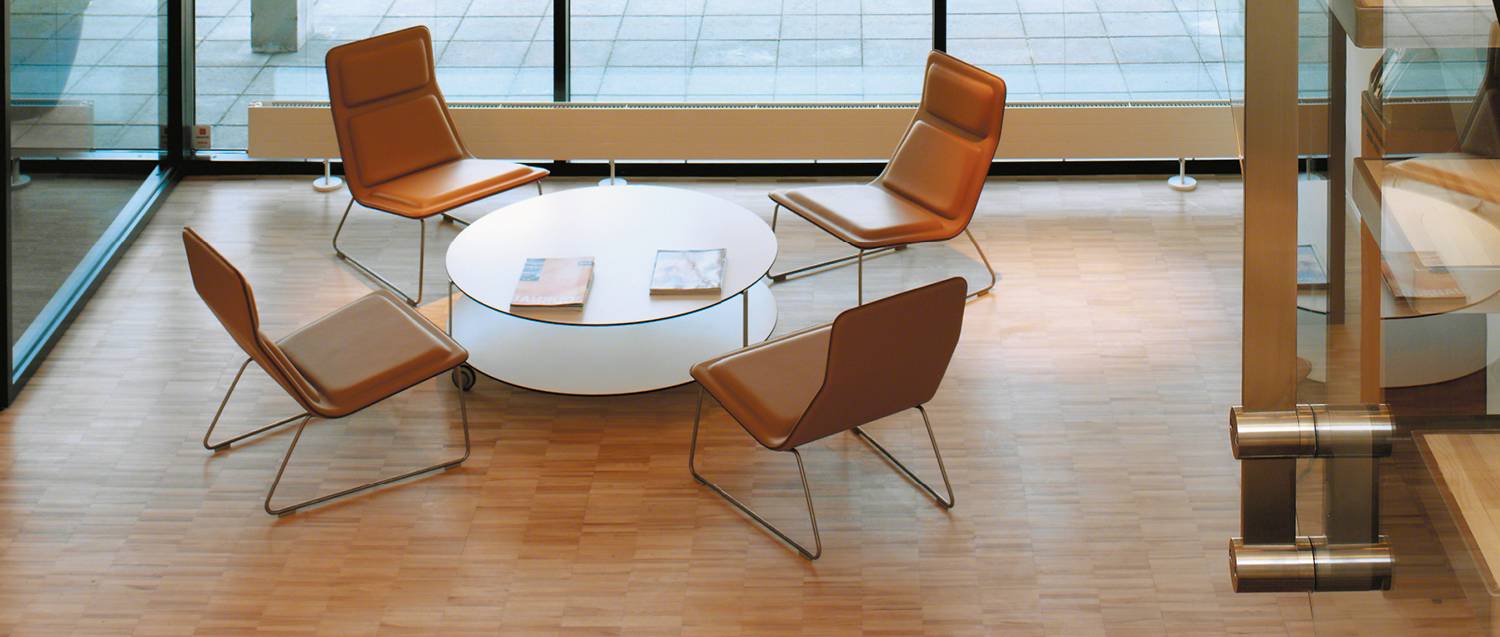

Uninterrupted glass barrier.

Fascia-mounted.

Low maintenance; does not readily corrode, rust or stain.

Comprises flat uprights and an oval-shaped block.

Adjustable single anchor fixing.

Modular connectors to eliminate the requirement for welding on site.

Horizontal, uniformly distributed line load; uniformly distributed load applied to infill; and point load to infill testing are available.

Allows designs in which glass extends below floor level.

Manufactured from external grade 1.4401 (316) stainless steel.

Applications:

Suitable for heavy indoor and outdoor use for stairs and balustrades.

General information

Material

Stainless steel AISI 1.4401 (316)

Uniclass 2015

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Product Reference	d-line Blok Fixing Full Glass
Glazing	-
Type	Monolithic or toughened laminated available (can be sandblasted or screen-printed). Insert requirements.
Thickness	Various thickness options available; consult manufacturer for details and insert requirements.
Post for side-mounting applications	Blok fixing full glass Complete set. Flat steel plate acting as post, 54 x 12 mm
Accessories	Not required Bend 38 mm diameter for 45° 450 x 450 mm Cover for posts fixed directly down onto concrete floor Handrail with accessories Consult d-line handrail specification. Tail end 32° 38 mm diameter Tail straight 38 mm diameter

Standard product features

Material:

Stainless steel AISI 1.4401 (316).

Surface treatment:

Matt brushed K320 and partly sandblasted.

Product Options

Handrail:

- Type:

The handrail fixing methods accommodate all various Q-railing handrail options from 42.4 and 48.3 to 40 x 40 mm.

- Connection:

Handrail to be connected to the top of the posts using modular handrail brackets.

MOD 4725 – relevant models suitable include MOD 0810, MOD 0818, MOD 0811, MOD 0812, MOD 1800, MOD 1801, MOD 1802.

Infill:

- Glass clamp MOD 21 and MOD 29:

Glass thickness varies in accordance with loading requirements. Glass terminal to EN 12600-03-tested ACC. DIN.

Picket rail/ vertical bar infill MOD 8926 base and head rail for fixing rod infill:

Picket rail is 33.7 mm diameter with a 2 mm wall thickness, and is 2500 mm long. Item can be connected using MOD 5792 easy-hit connectors. 12 mm rod or tube infill available in either 2500 mm or 5000 mm lengths. All picket fence products are only available in 1.4301 (304) grade stainless steel.
