d-flexx Kerb Barrier
Verified by manufacturer 5 months ago
Kerb Barrier 1300 mm: DFKB-1 (4250912395619)
Kerb Barrier 1300 mm: DFKB-1 (4250912395619)
Kerb barrier for protecting walls and assembly lines from collisions in low ground areas.
Application
Designed to protect walls and assembly lines from collisions in low ground areas.
Description

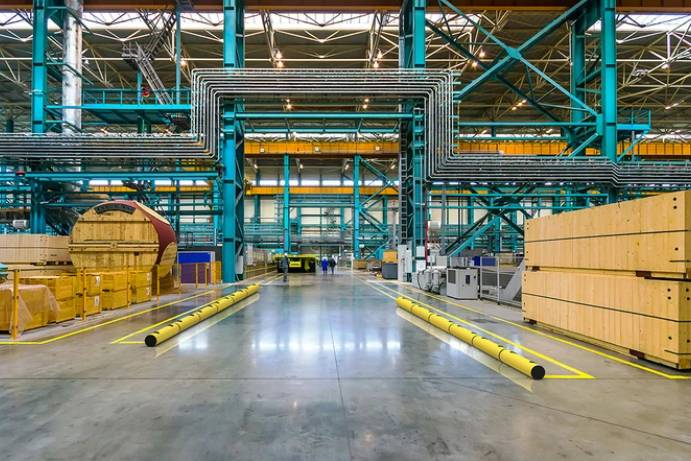

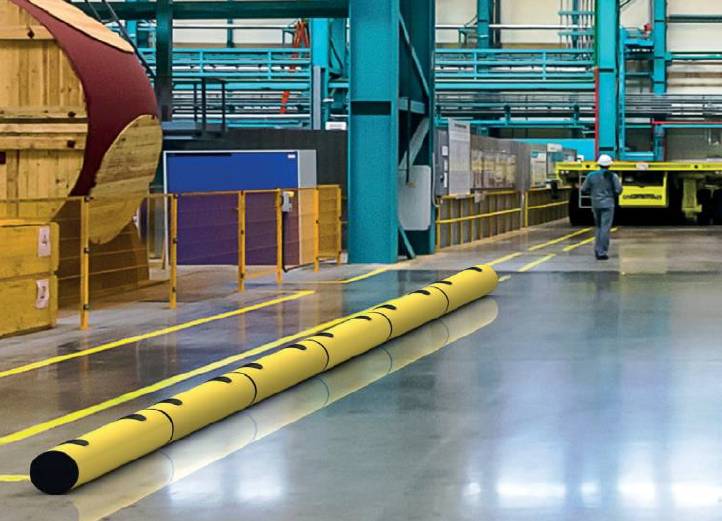

The flexible d-flexx kerb barrier is used to protect walls and assembly lines from collisions in low ground areas. The round shape allows the colliding forklift to bounce off the barrier, therefore absorbing the force. It functions as a guide throughout the installed area. The kerb barrier can be combined with most of the d-flexx collection for a full safety solution.
Features and benefits:
- It is made from polyethylene to absorb the impact force and return into its original shape.
- It is easy to install with just two screws and a cost effective way to prevent low ground collisions.
- Deflection zone: 100 mm.
- Chemical resistance: high- ISO/TR 10358.
- Impact angle 90°.
- 100% recyclable.
General information
Color | Black Yellow Similar to RAL 1018 traffic yellow. |
Finish | Matt |
Material | Polyethylene |
Shape | Other |
Length | 500 mm 1000 mm 1300 mm 1499 mm 1500 mm |
Width | 140 mm |
WarrantyDescription | Five year |
Uniclass | |
CAWS | Q41/135 Proprietary protective barriers Q41/130 Protective barriers Q41/130 Protective barriers |
Specification data - Protective rail systems
System performance | Collision protection in low ground areas. |
Rails | Protective frames. |
Kerb | Polyethylene. |
Colour | Yellow (like RAL 1018 traffic yellow) / black. |
Height | 140 mm. |
Width | 140 mm. |
Length | 1300 mm. |
Diameter | 140 mm. |
Weight | 5.9 kg. |
Fixing | Concrete screw anchors M12 x 110 mm. |
Fixing holesBore holes. | Two. |
Deflection | 100 mm. |
Chemical resistance | High - ISO/TR 10358. |
TemperatureRange | -10° up to + 50°. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Denmark |
Country of product manufacture | Denmark |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 15 kg·CO₂e/kg |
Recyclability | 100% |
Recycled content | 0 % |
BIM objects
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
